DTC B1232: Jam Protection Pulse Switch Circuit on Driver Door: Wiring Diagram

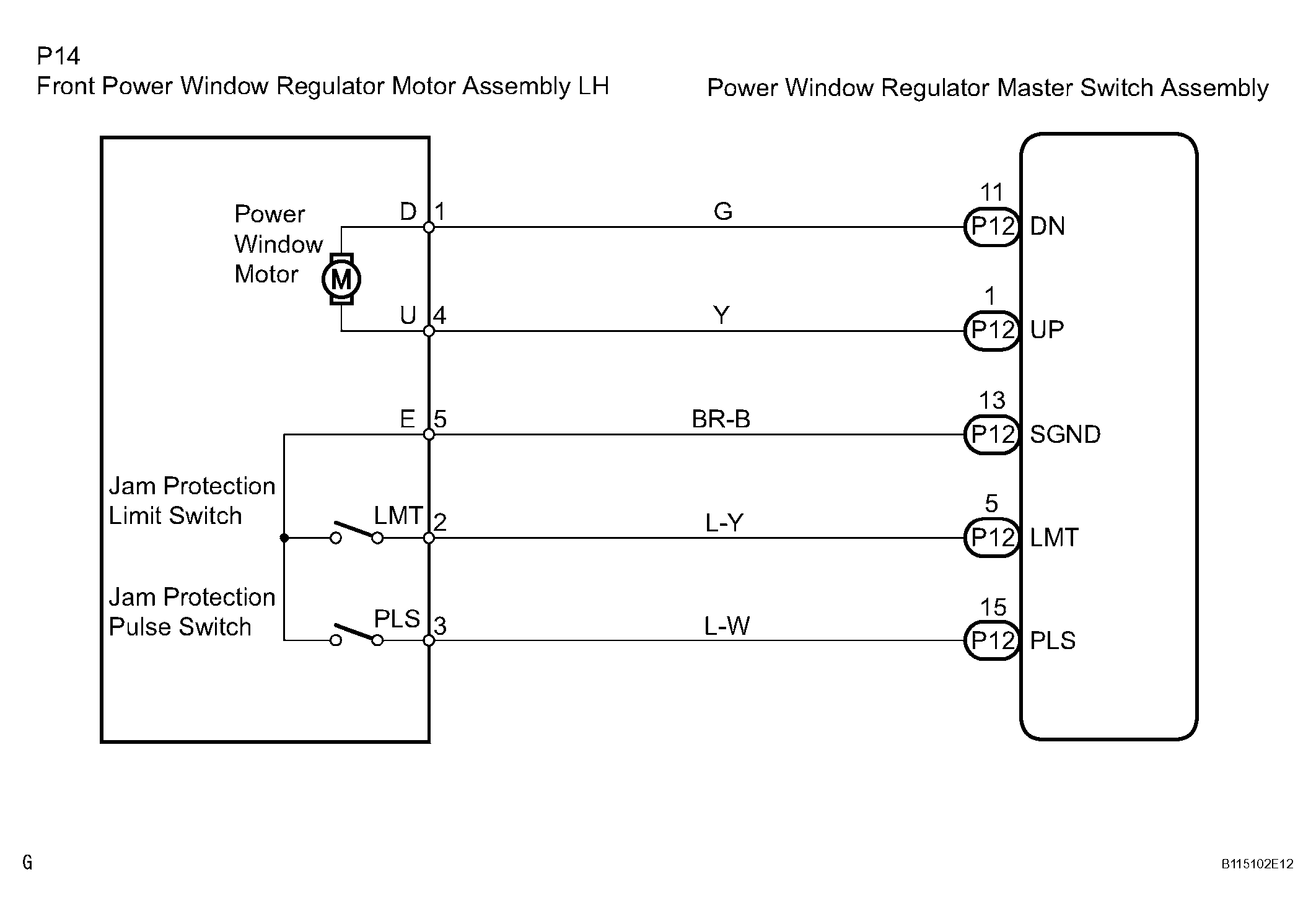

Fig 1: Jam Protection Pulse Switch Circuit On Driver Door Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
