Power Window Control System
›
Front Passenger Side Power Window Motor Circuit
›
Wiring Diagram
Front Passenger Side Power Window Motor Circuit: Wiring Diagram

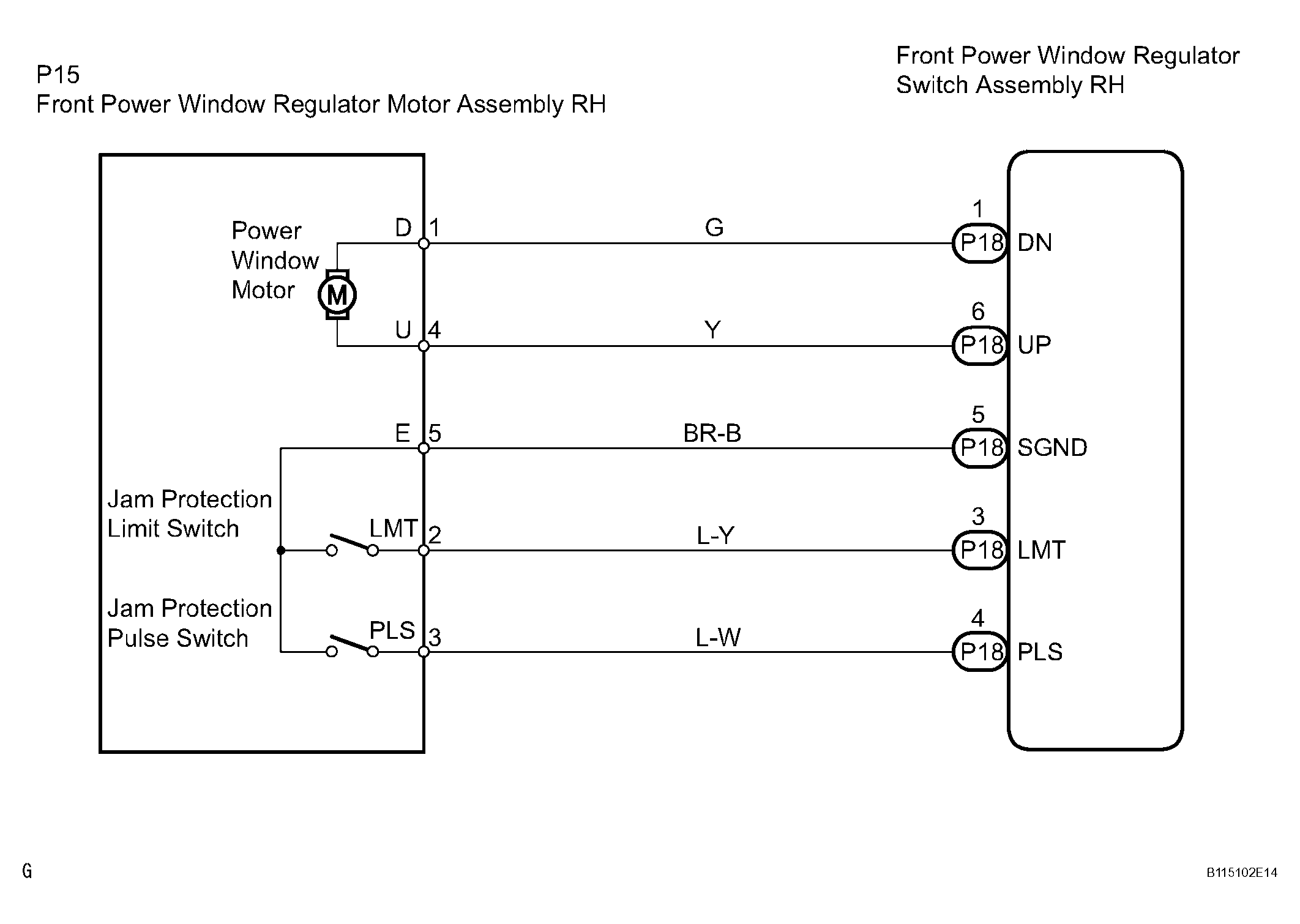

Fig 1: Front Passenger Side Power Window Motor Circuit Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
