Power Source Circuit: Wiring Diagram

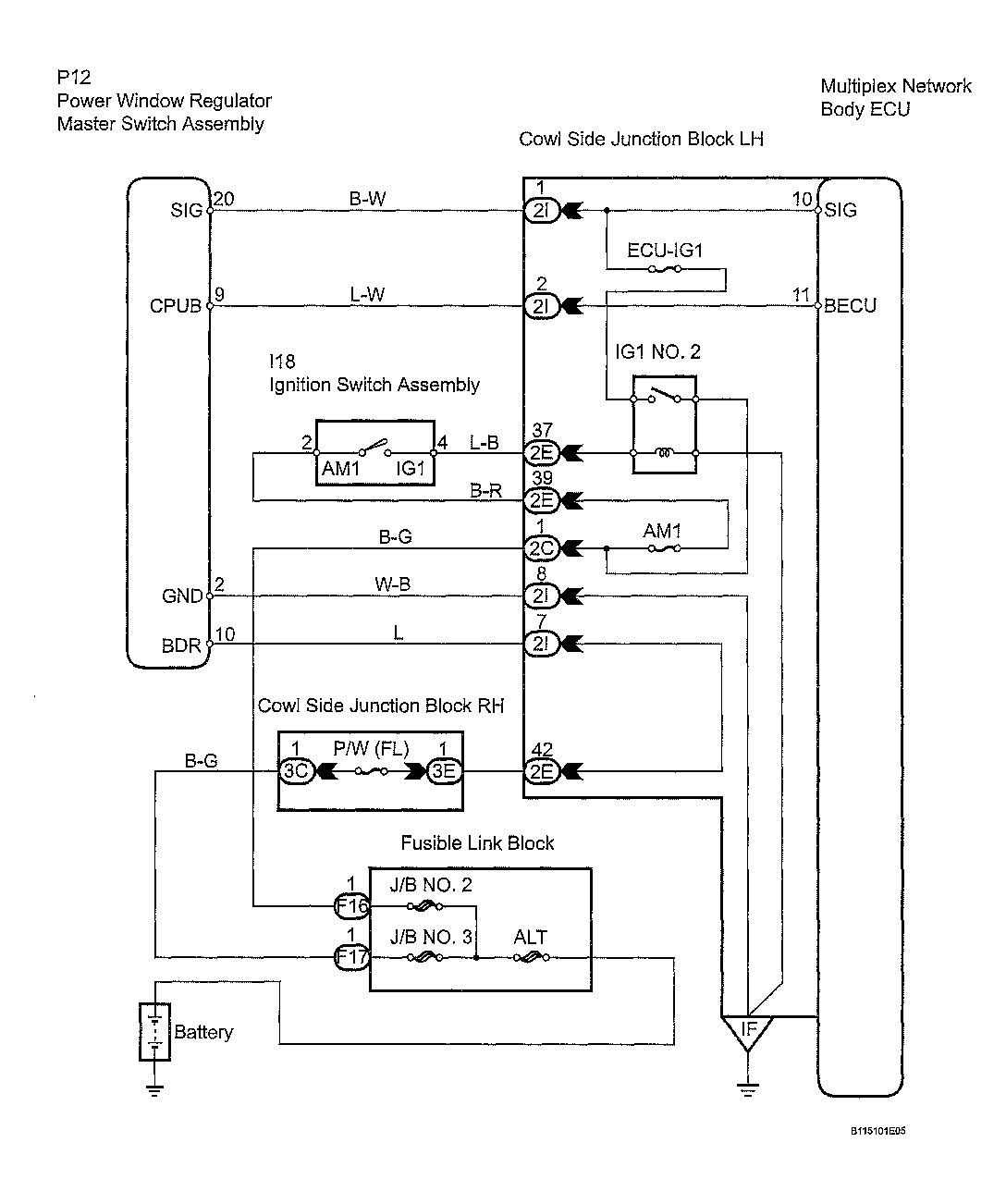

Fig 1: Power Source Wiring Diagram
G00455029Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
