Power Window Control System
›
Rear Jam Protection Limit/Pulse Switch LH Circuit
›
Wiring Diagram
Rear Jam Protection Limit/Pulse Switch LH Circuit: Wiring Diagram

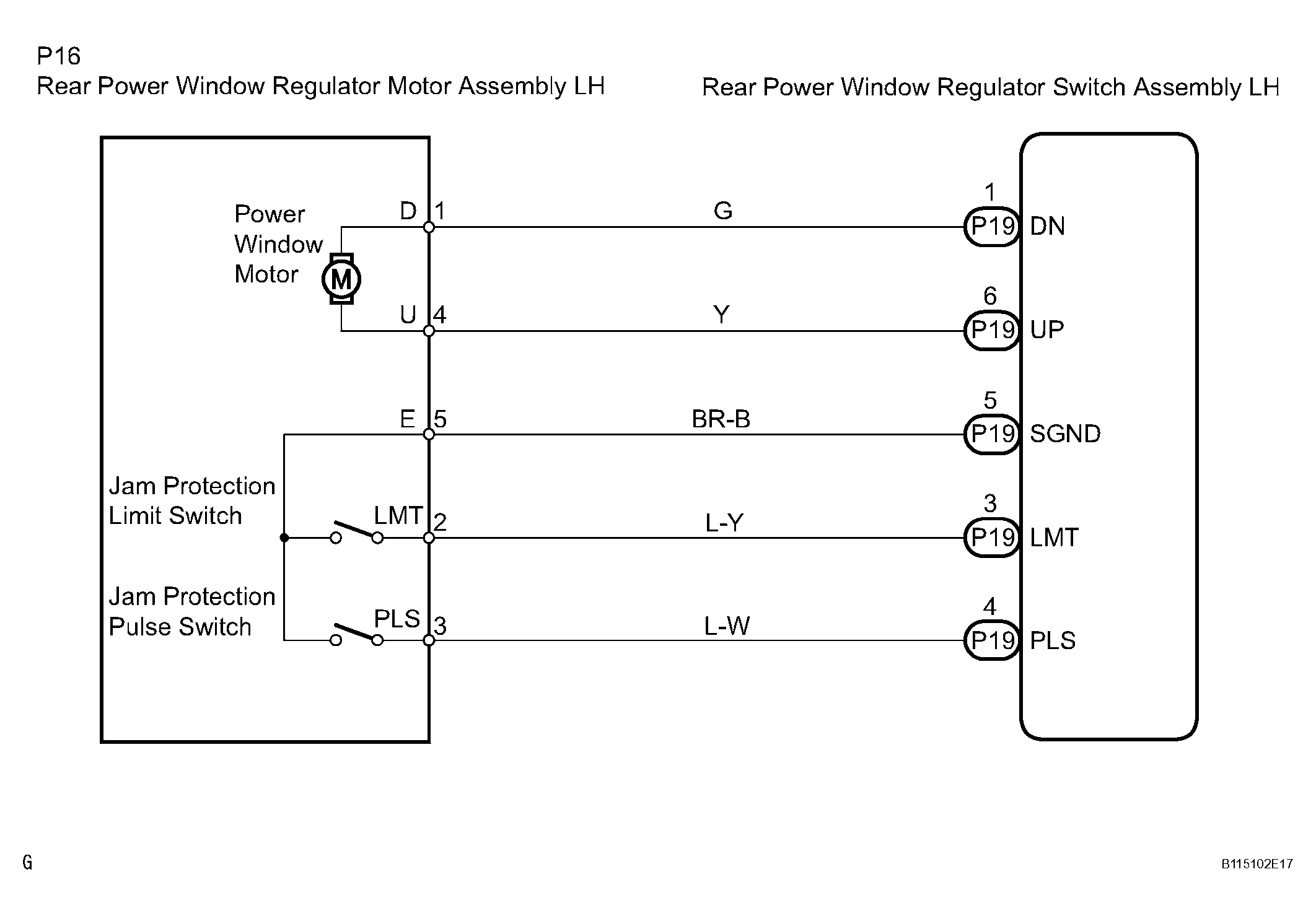

Fig 1: Rear Jam Protection Limit/Pulse Switch LH Circuit Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
