Power Window Control System
›
Rear Power Window Motor RH Circuit
›
Wiring Diagram
Rear Power Window Motor RH Circuit: Wiring Diagram

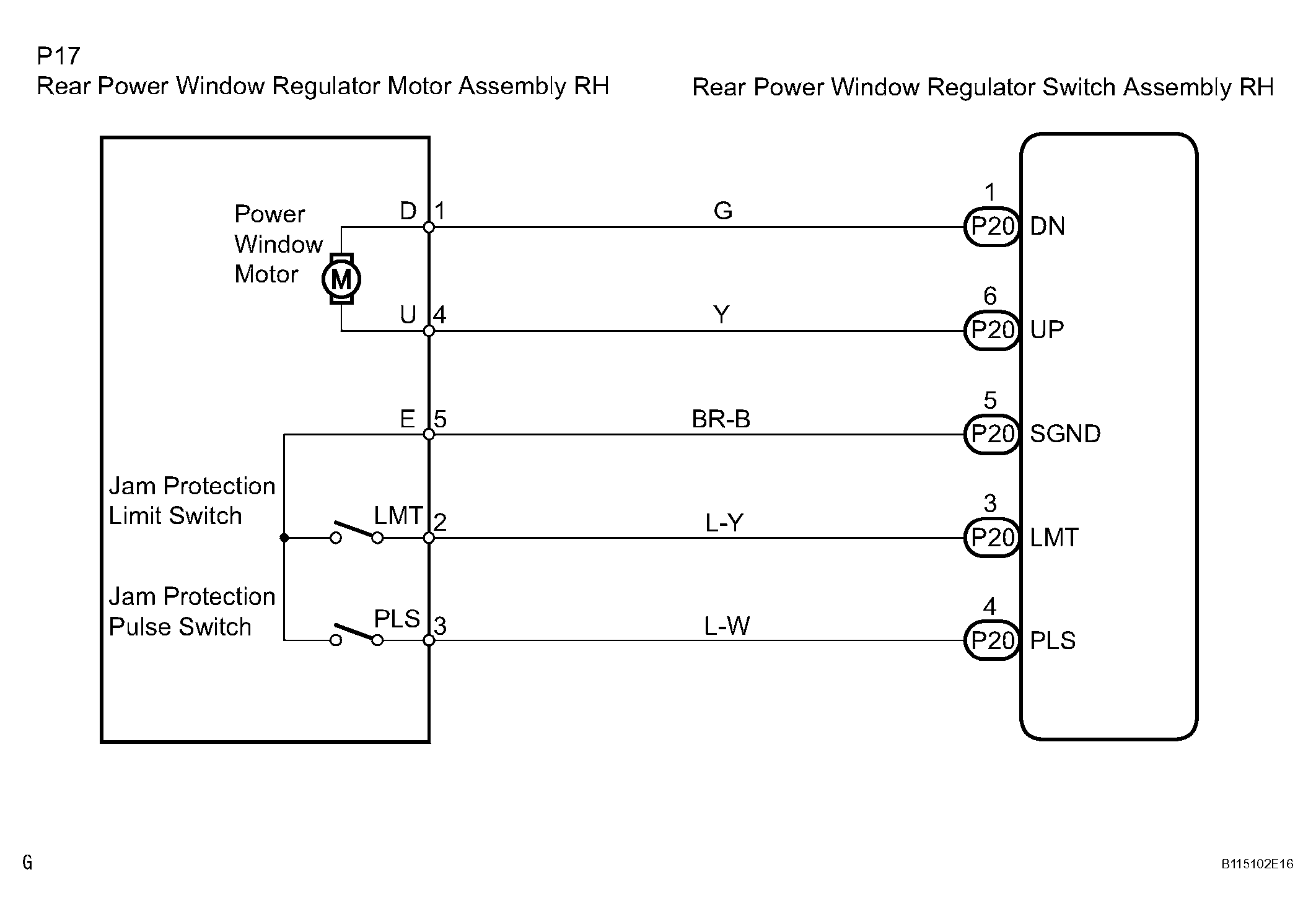

Fig 1: Rear Power Window Motor RH Circuit Wiring Diagram
