Air Conditioning (Front): Notes

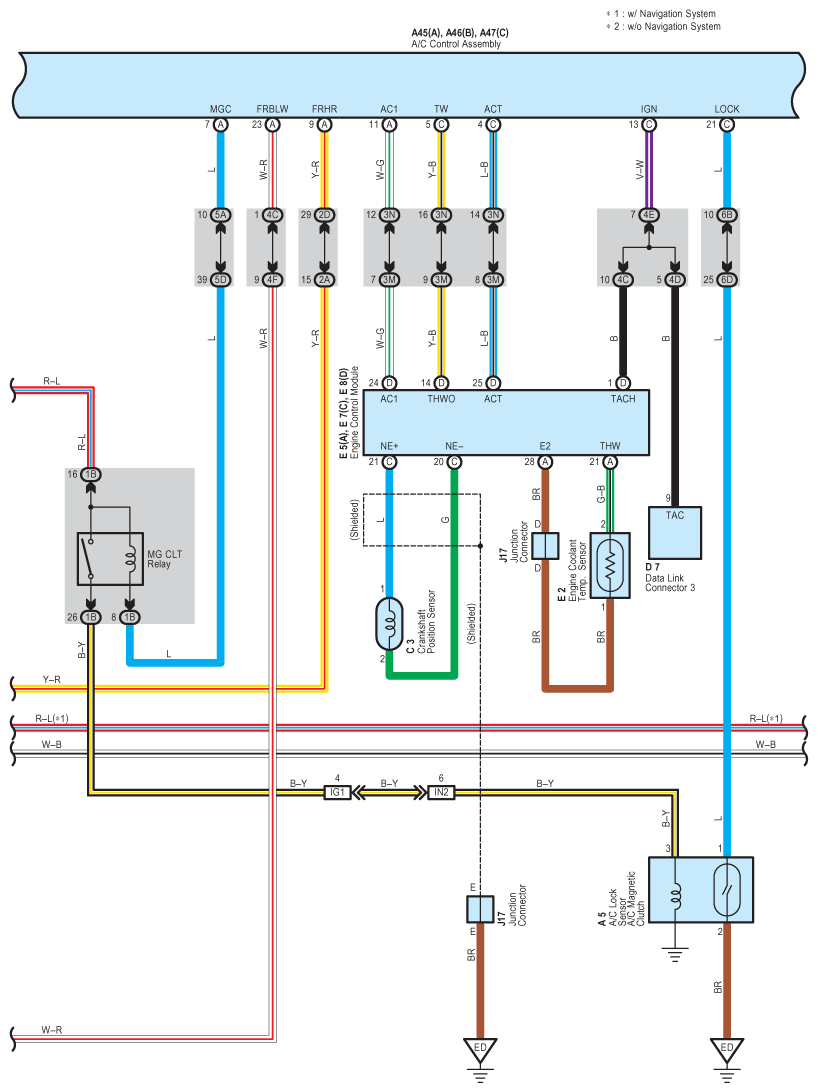

Fig 1: Front Air Conditioning System Wiring Diagram (1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

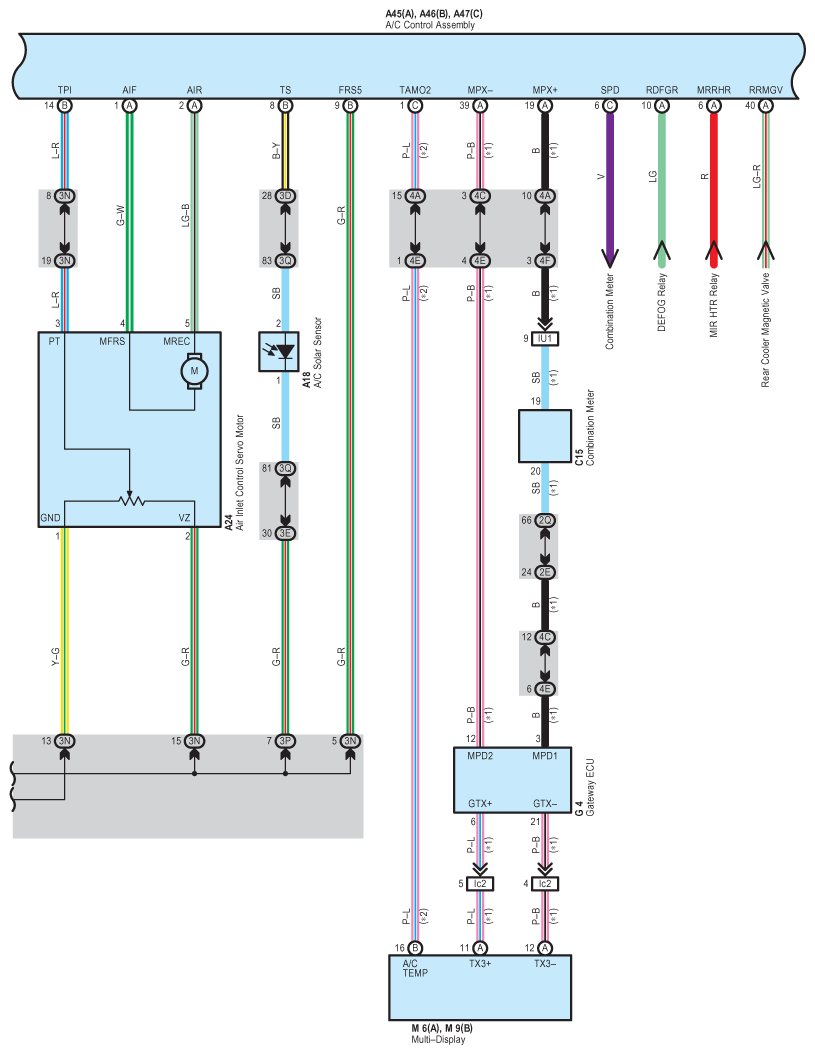

Fig 2: Front Air Conditioning System Wiring Diagram (2 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

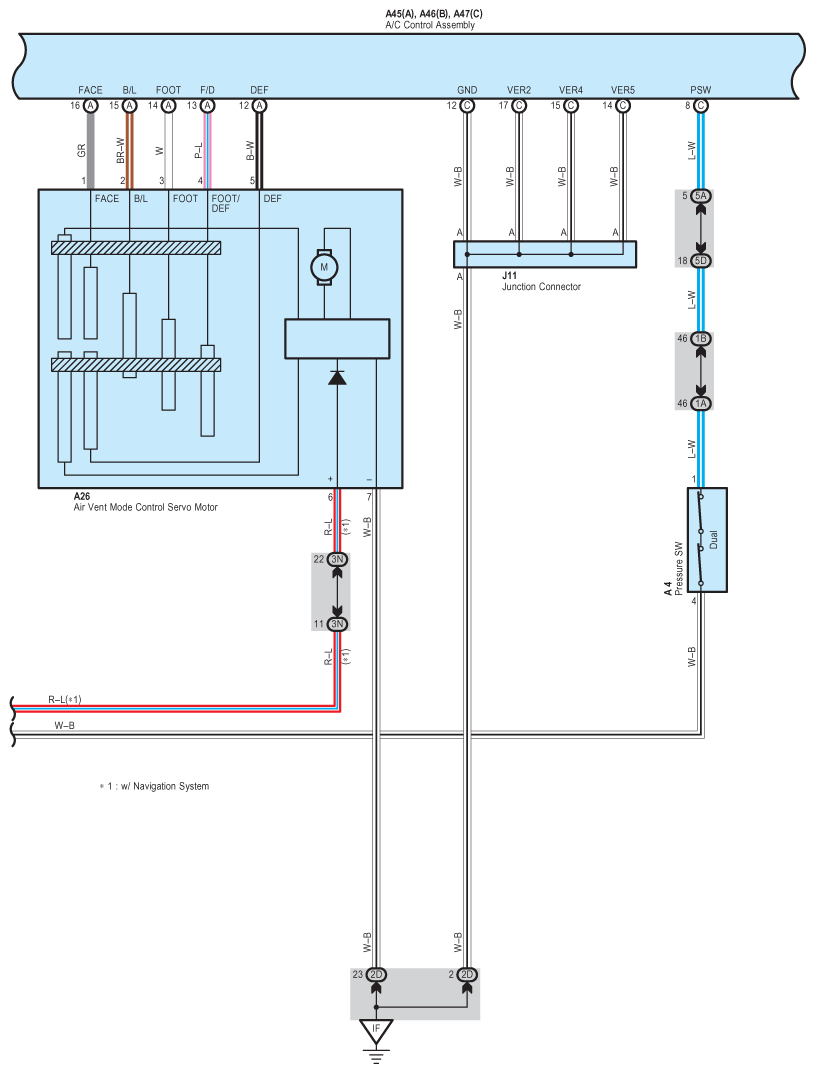

Fig 3: Front Air Conditioning System Wiring Diagram (3 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

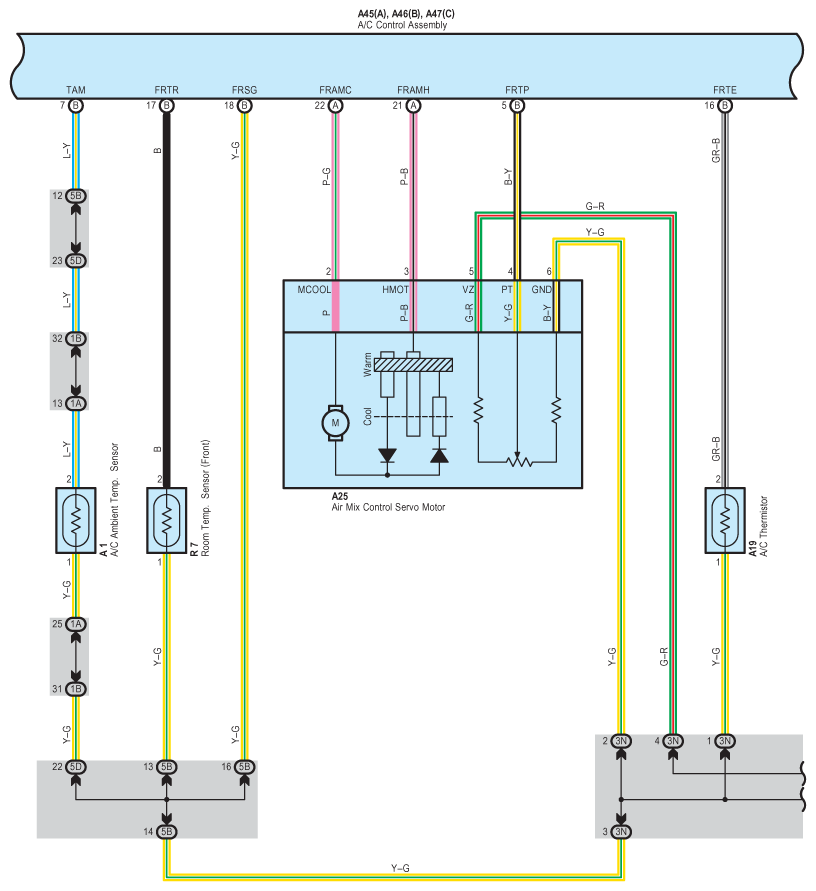

Fig 4: Front Air Conditioning System Wiring Diagram (4 Of 6)

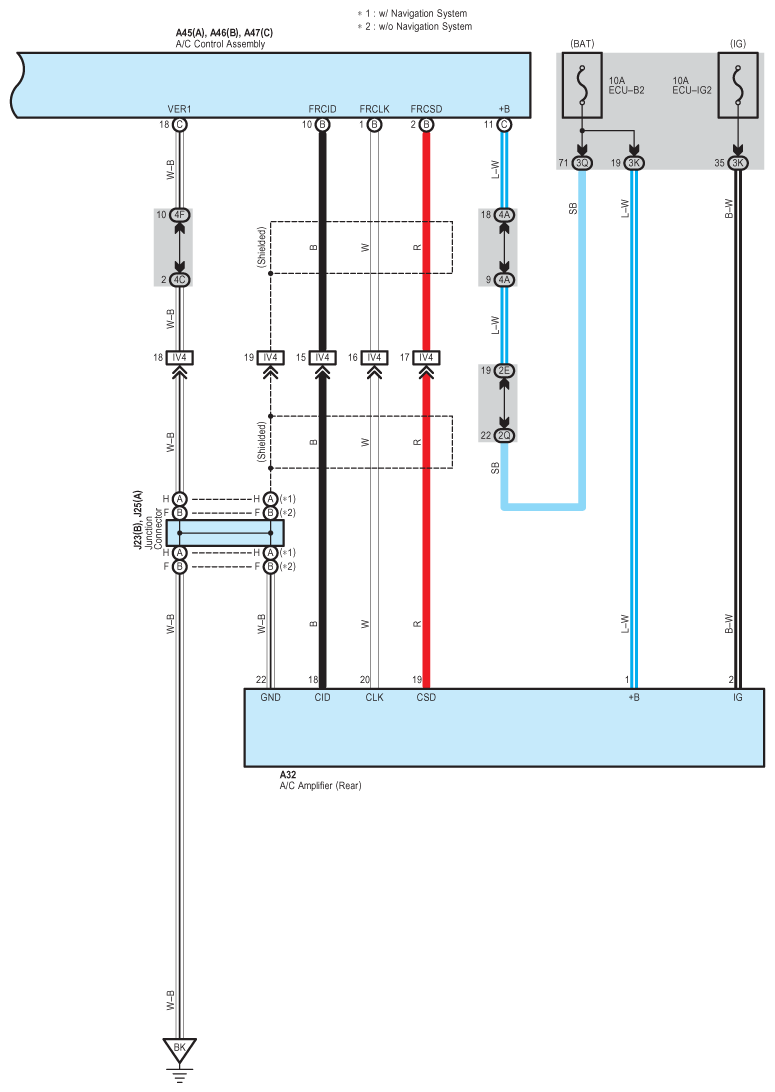

Fig 5: Front Air Conditioning System Wiring Diagram (5 Of 6)

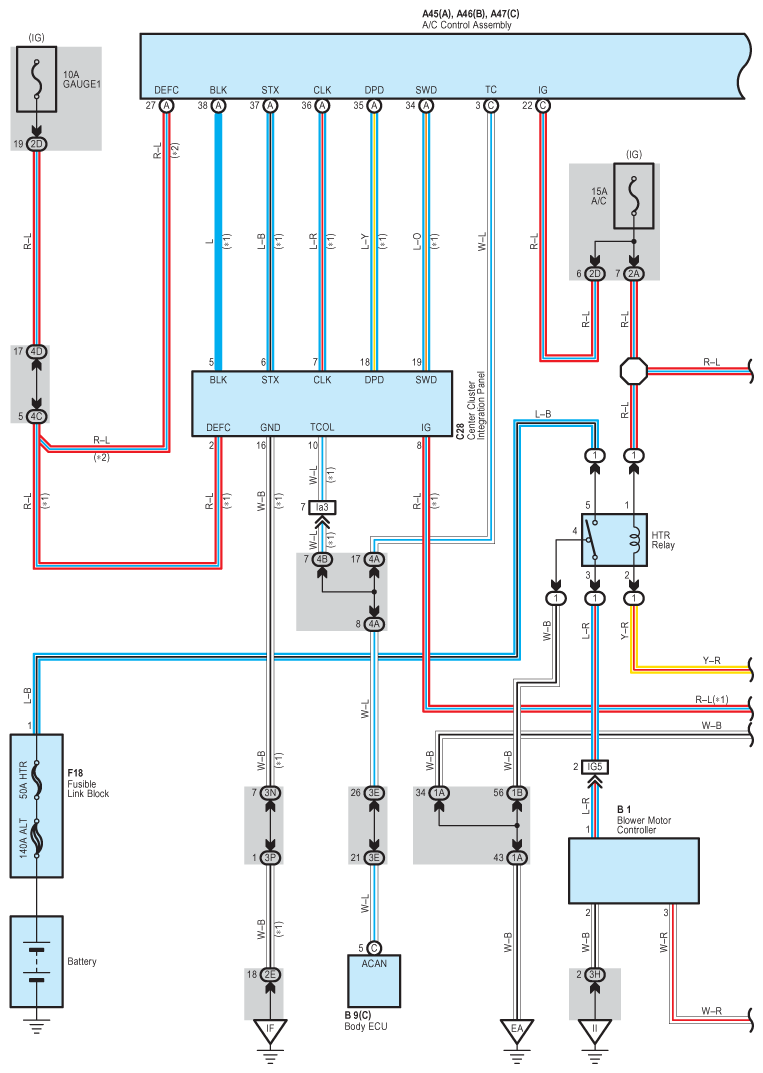

Fig 6: Front Air Conditioning System Wiring Diagram (6 Of 6)
