Air Conditioning (Rear): Notes

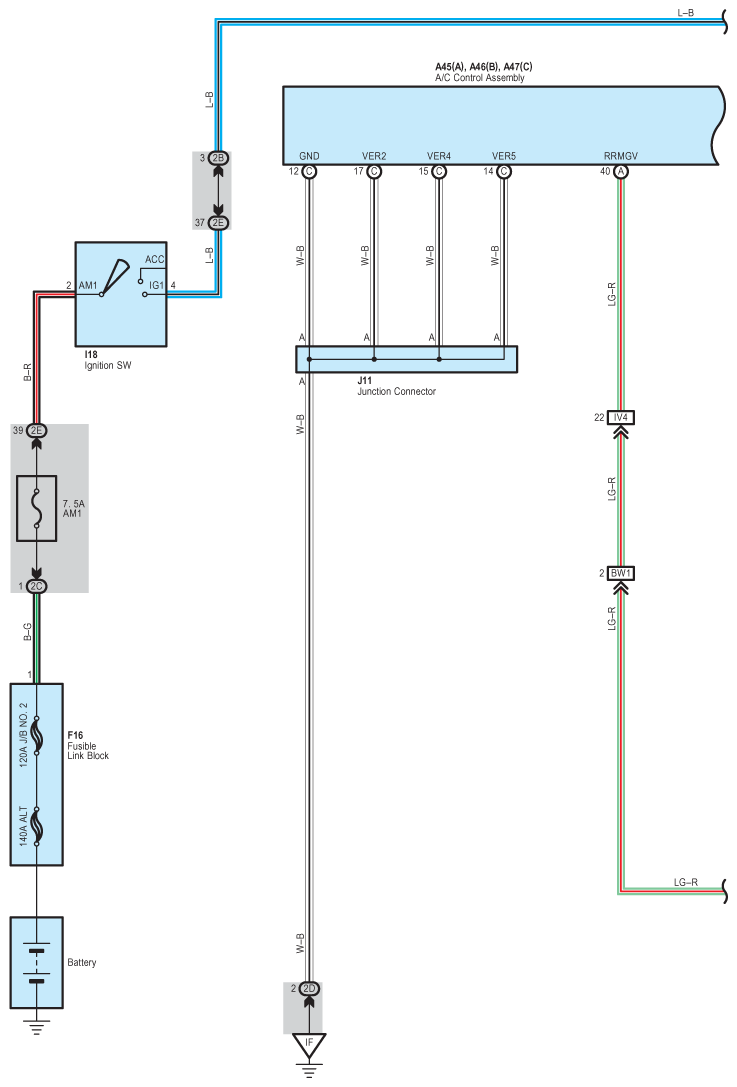

Fig 1: Rear Air Conditioning System Wiring Diagram (1 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

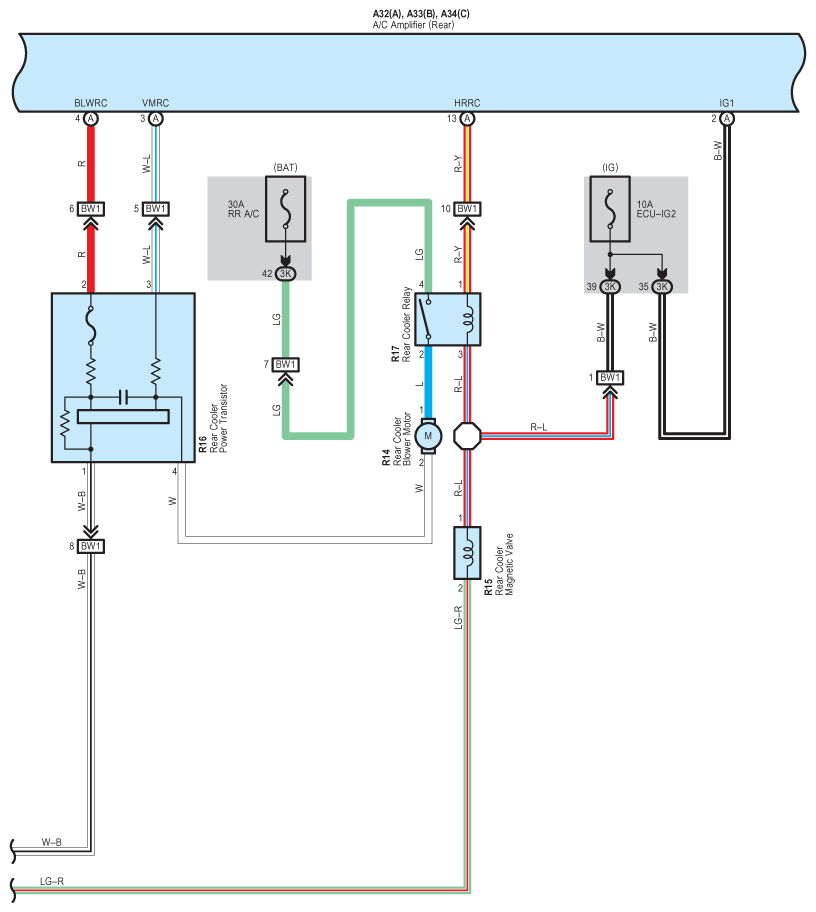

Fig 2: Rear Air Conditioning System Wiring Diagram (2 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

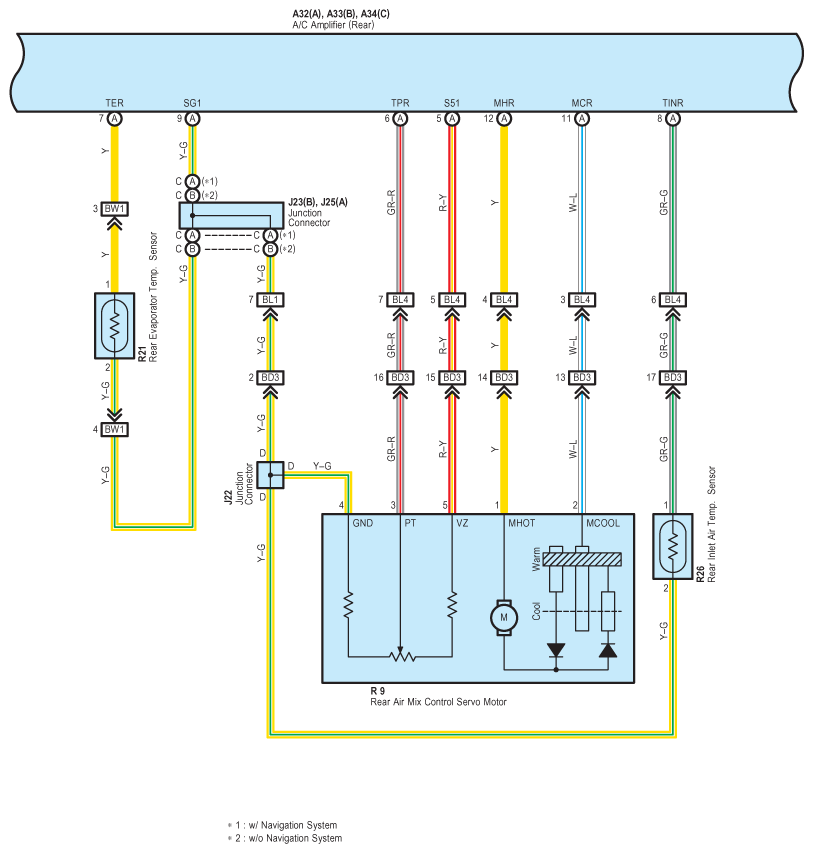

Fig 3: Rear Air Conditioning System Wiring Diagram (3 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

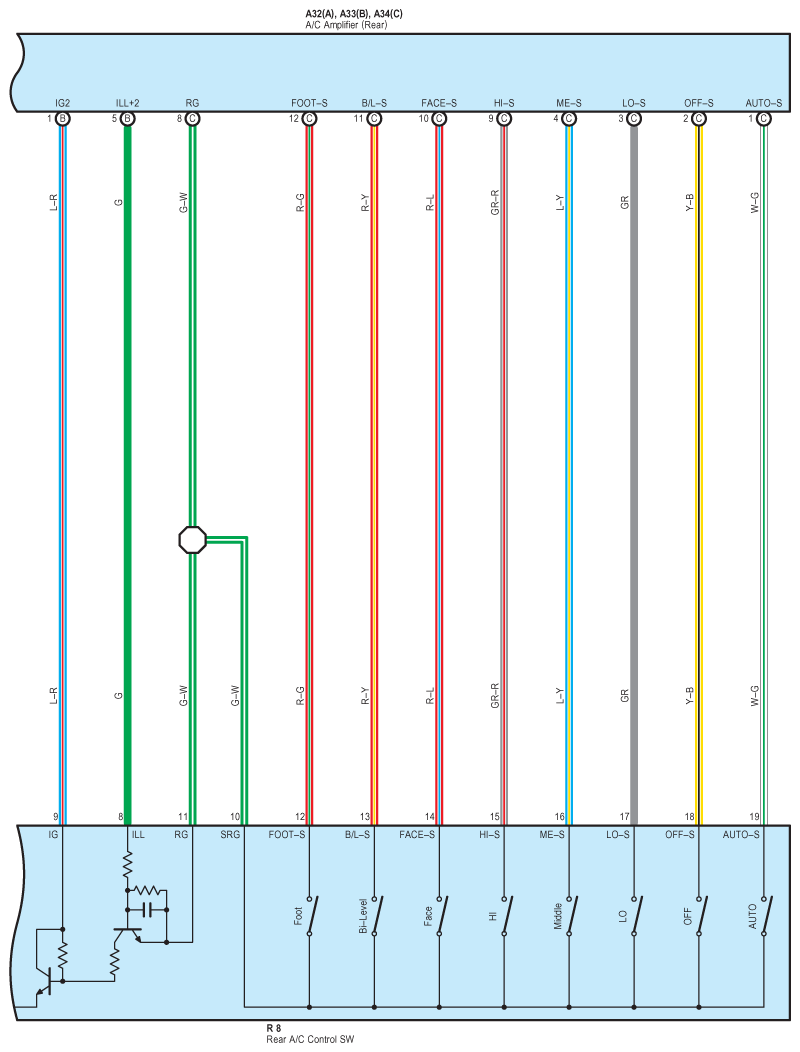

Fig 4: Rear Air Conditioning System Wiring Diagram (4 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

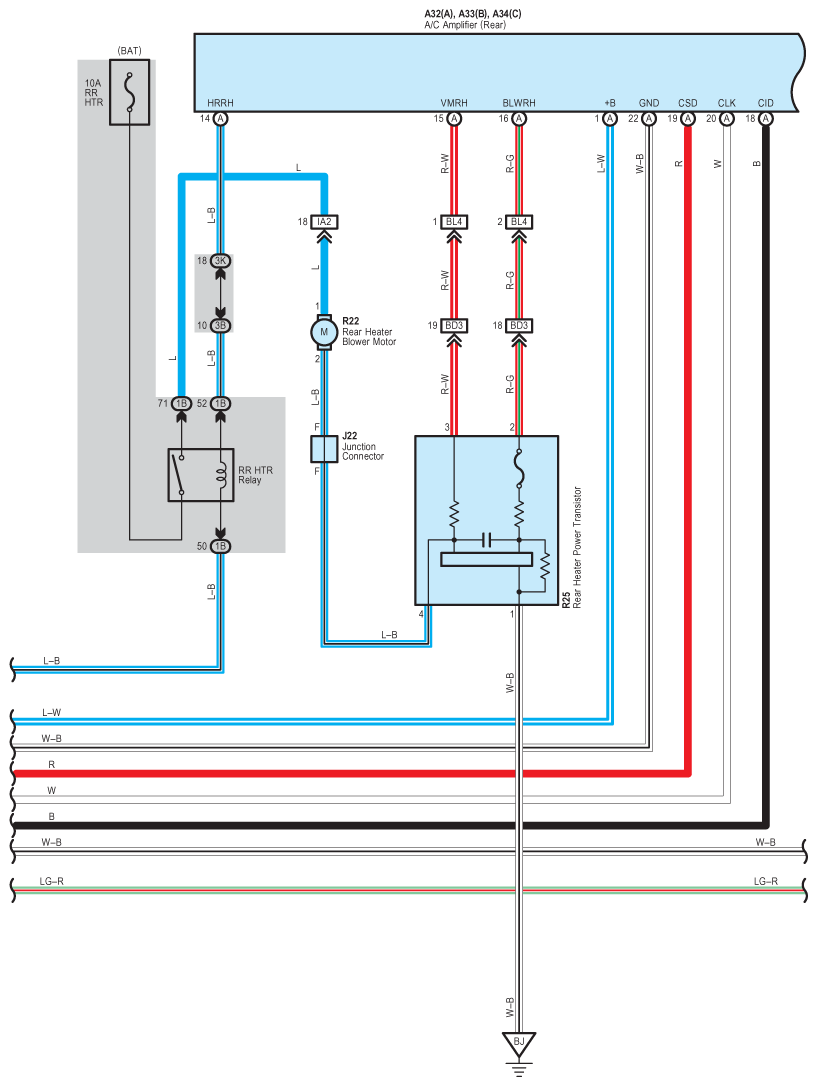

Fig 5: Rear Air Conditioning System Wiring Diagram (5 Of 7)

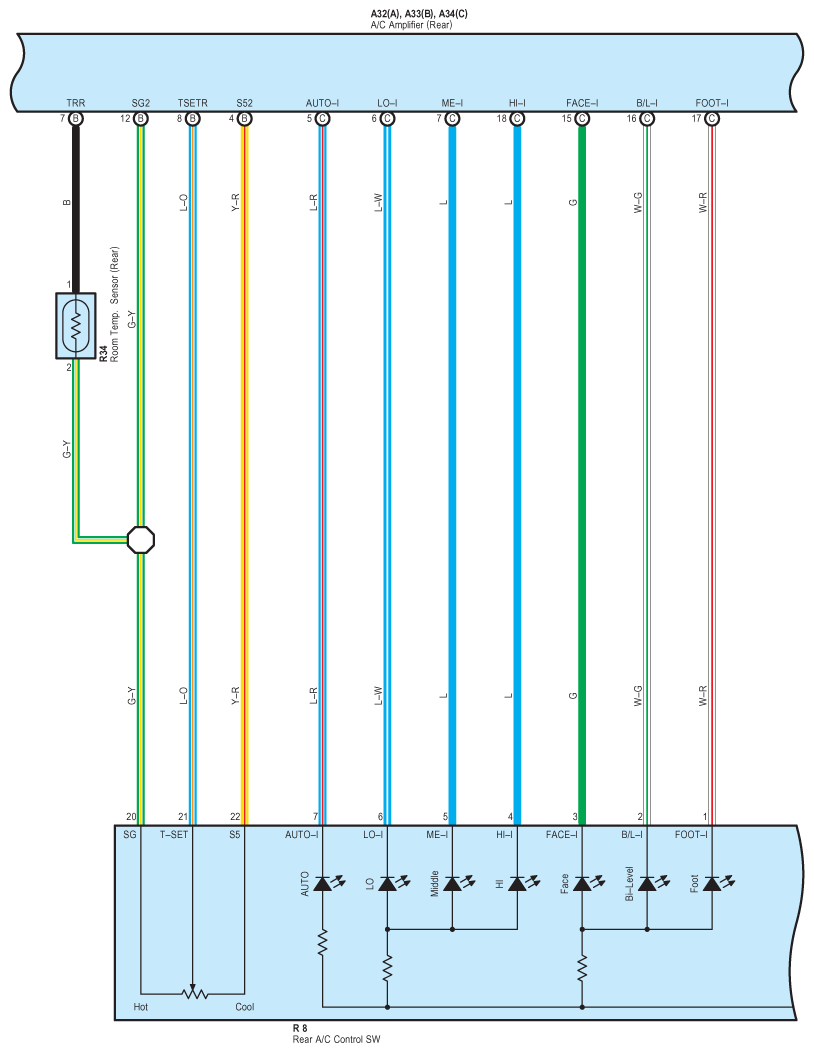

Fig 6: Rear Air Conditioning System Wiring Diagram (6 Of 7)

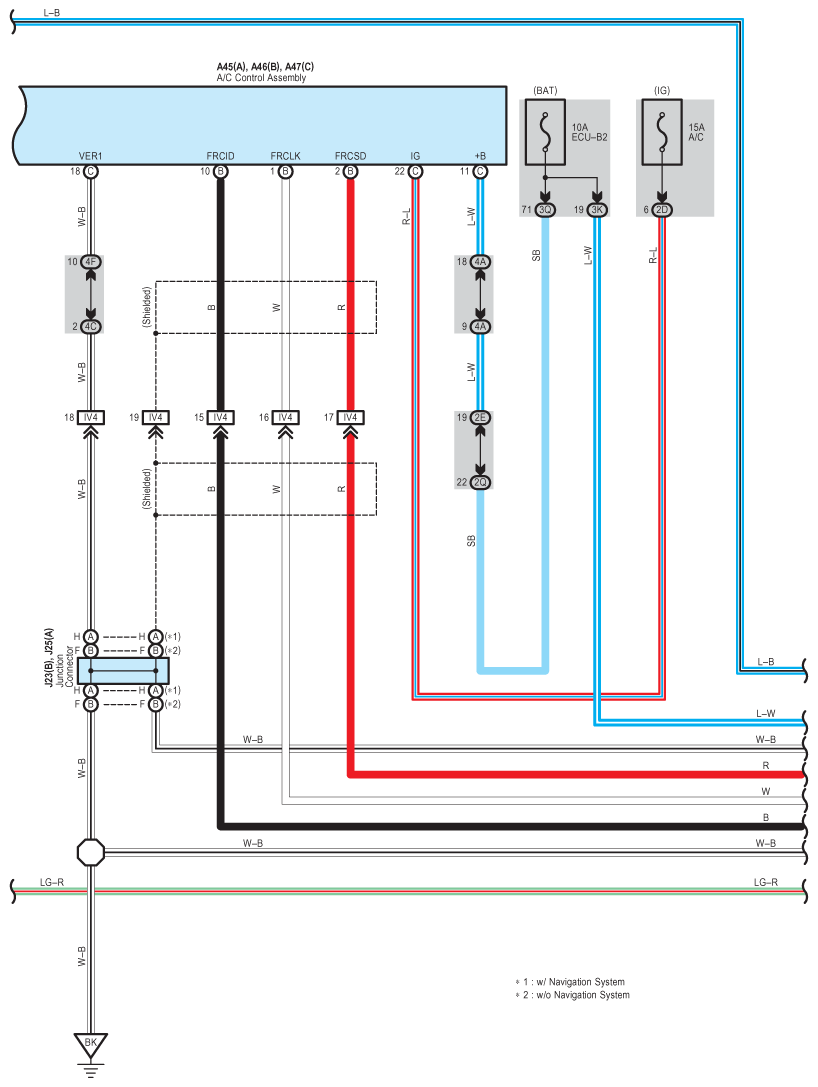

Fig 7: Rear Air Conditioning System Wiring Diagram (7 Of 7)
