Auto Antenna: Notes

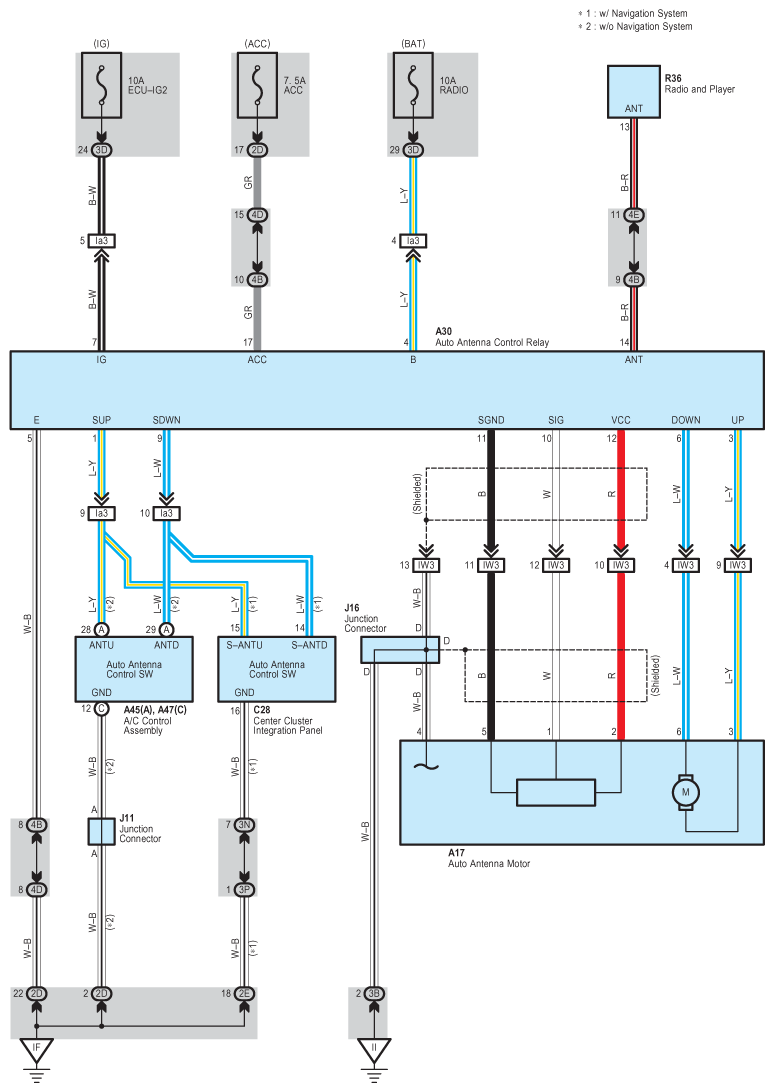

Fig 1: Auto Antenna System Wiring Diagram
G08783474Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
