Multi-Display without Navigation System: Notes

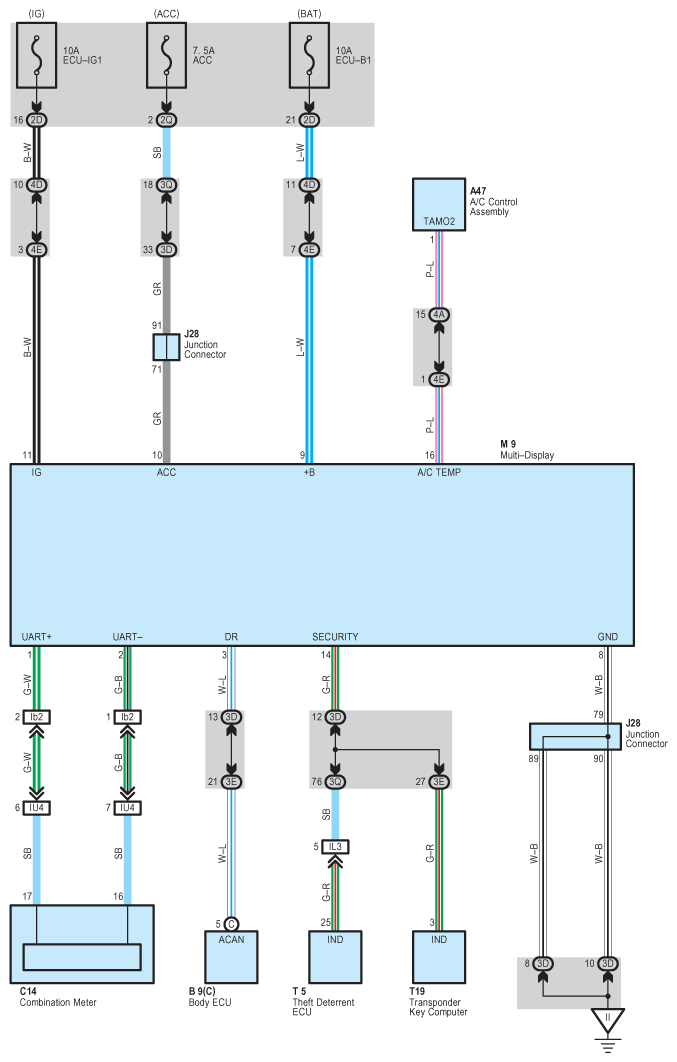

Fig 1: Multi-Display System (Without Navigation System) Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
