Power Outlet: Notes

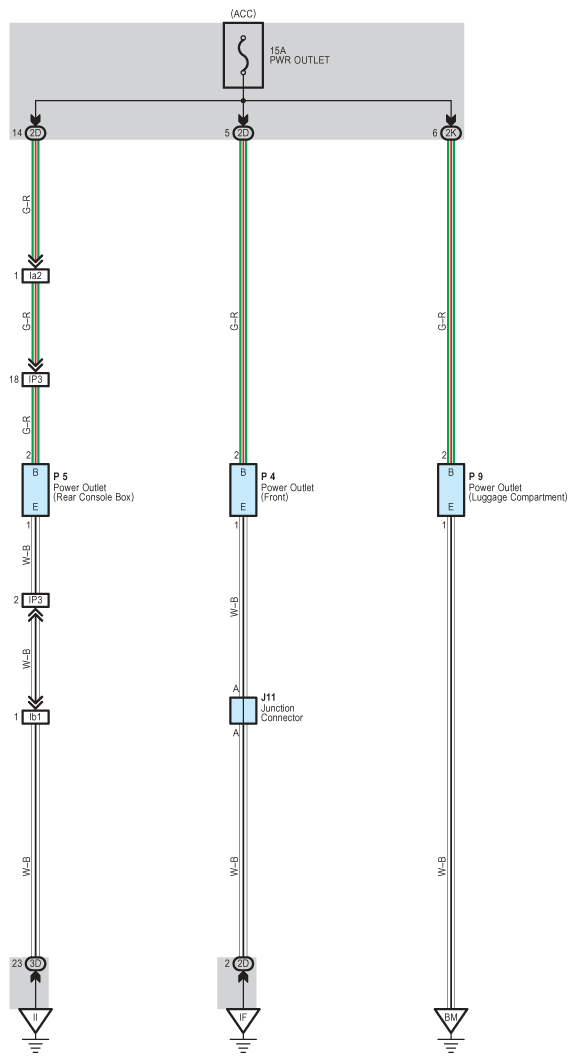

Fig 1: Power Outlet System Wiring Diagram
G08783396Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
