OEM System Circuits: Starting: Notes

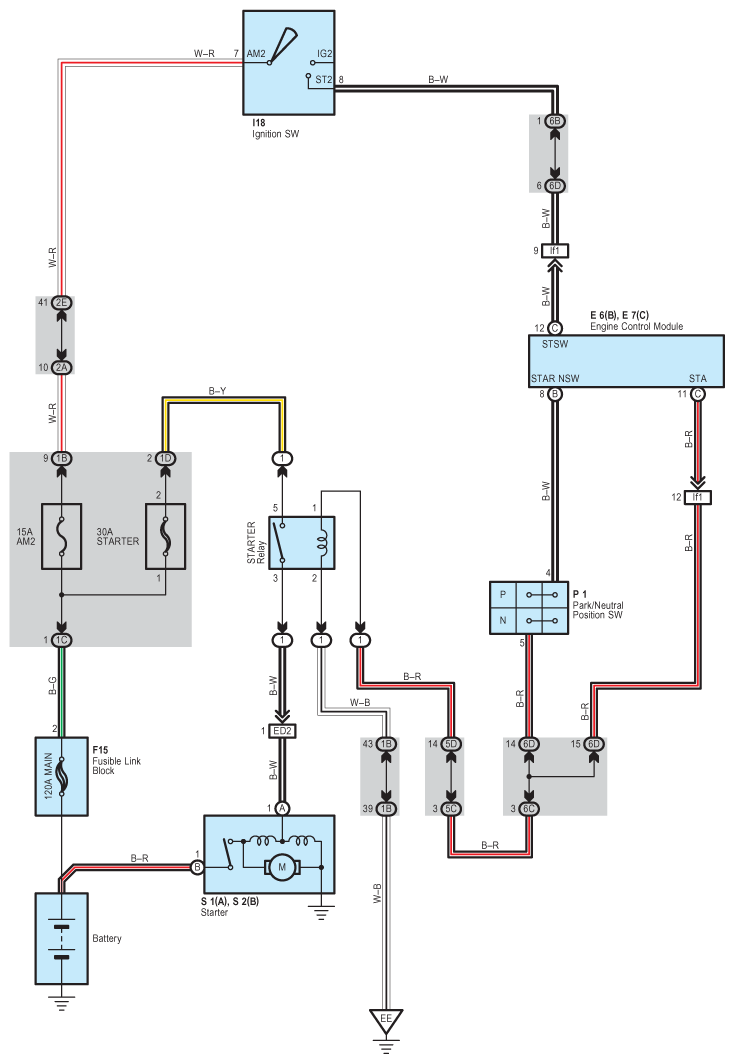

Fig 1: Starting System Wiring Diagram
G08783327Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
