Charging System: Generator: Components

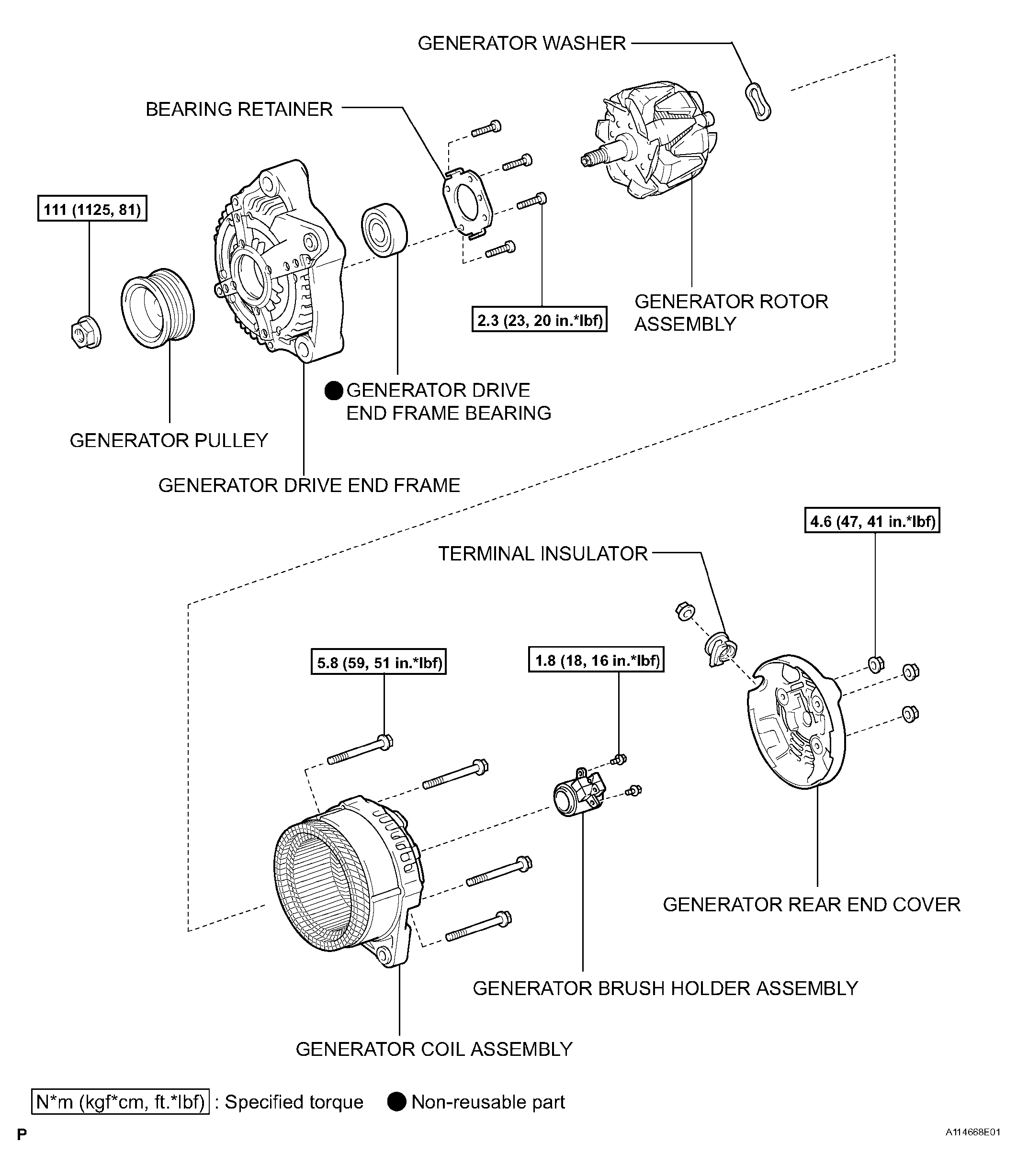

Fig 1: Identifying Generator Components & Replacements (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Identifying Generator Components & Replacements (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
