Fuel Sender Gauge Assembly: Components

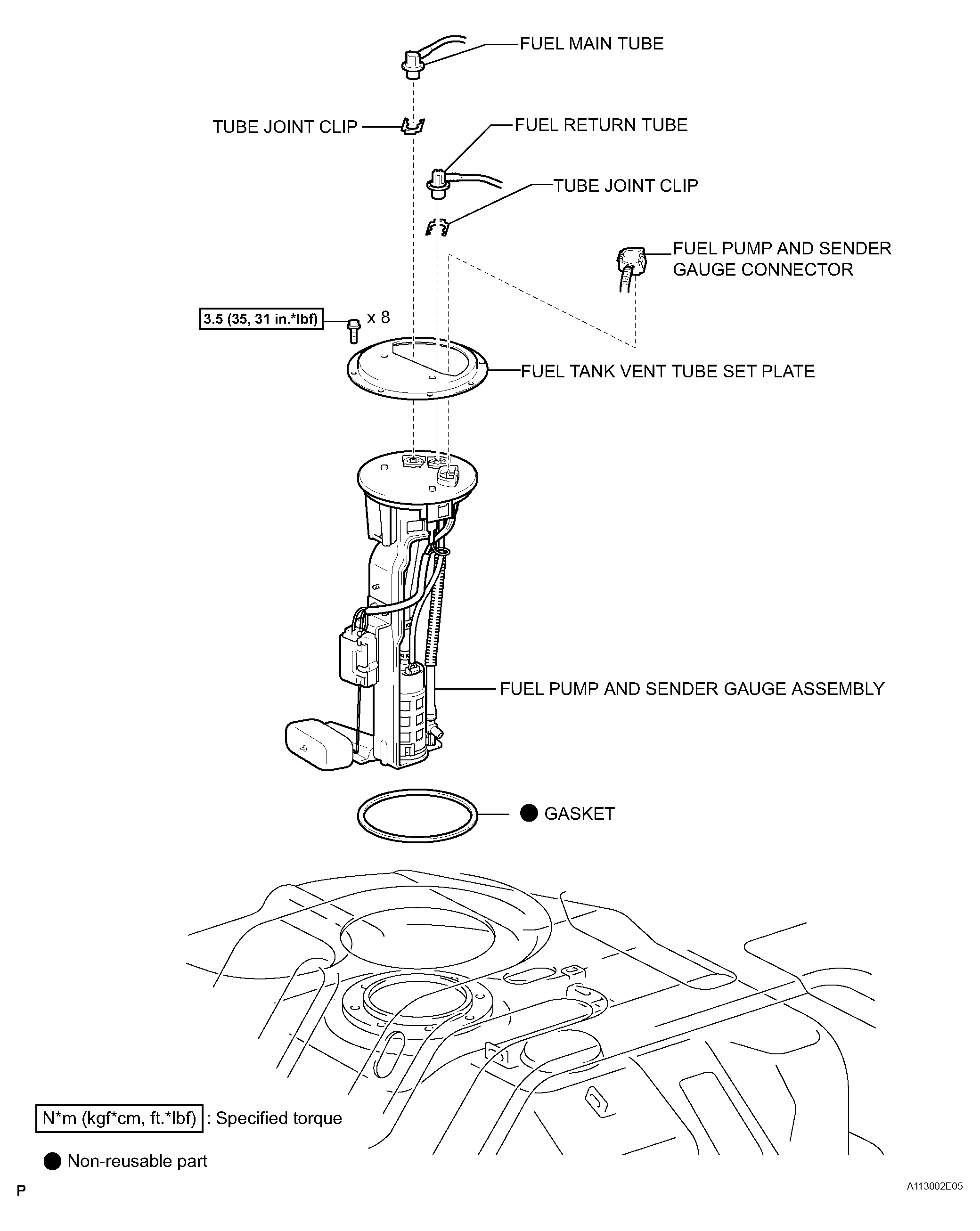

Fig 1: Identifying Fuel Sender Gauge Assembly Components
G04440697Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
