Engine Oil Cooler: Components

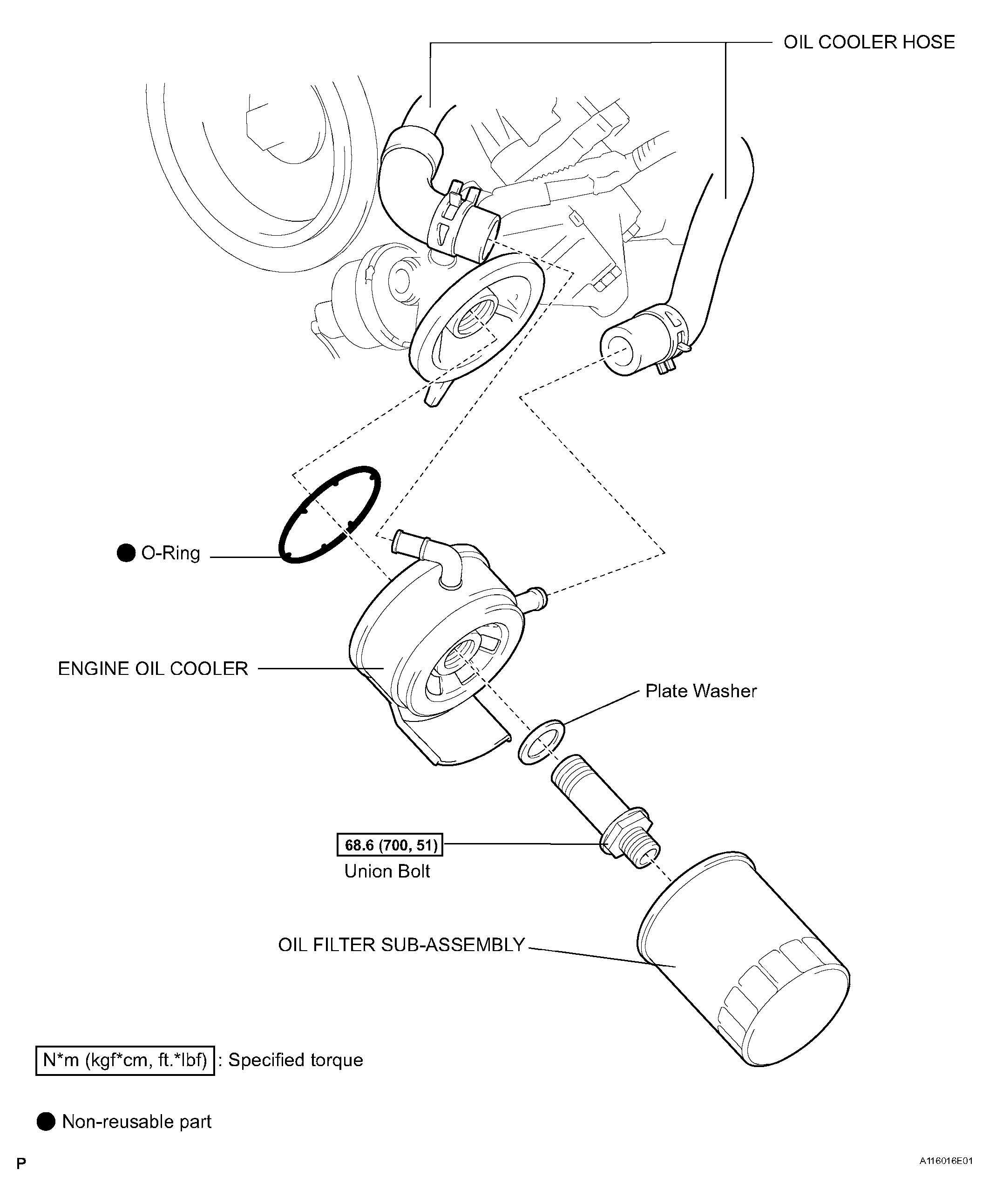

Fig 1: Identifying Engine Oil Cooler Components & Replacements
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
