Cranking Holding Function Circuit: Wiring Diagram: Notes

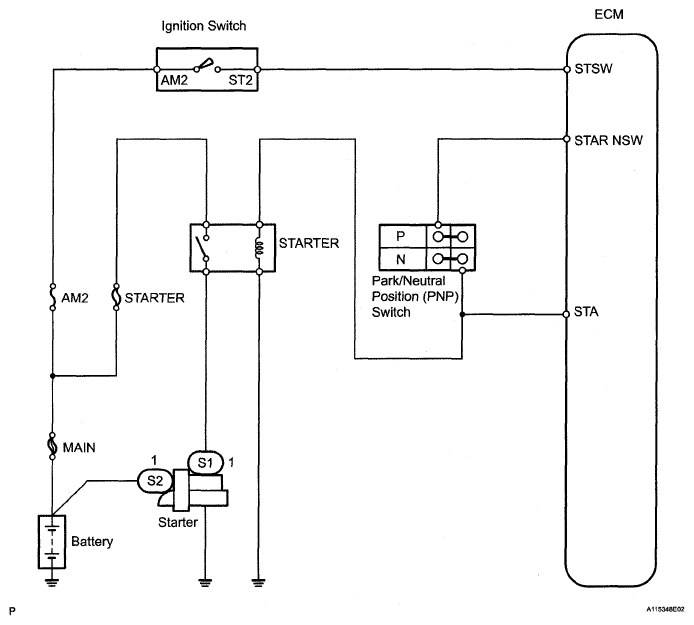

Fig 1: Cranking Holding Function Circuit - Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
