Fuel Pressure Regulator: Components

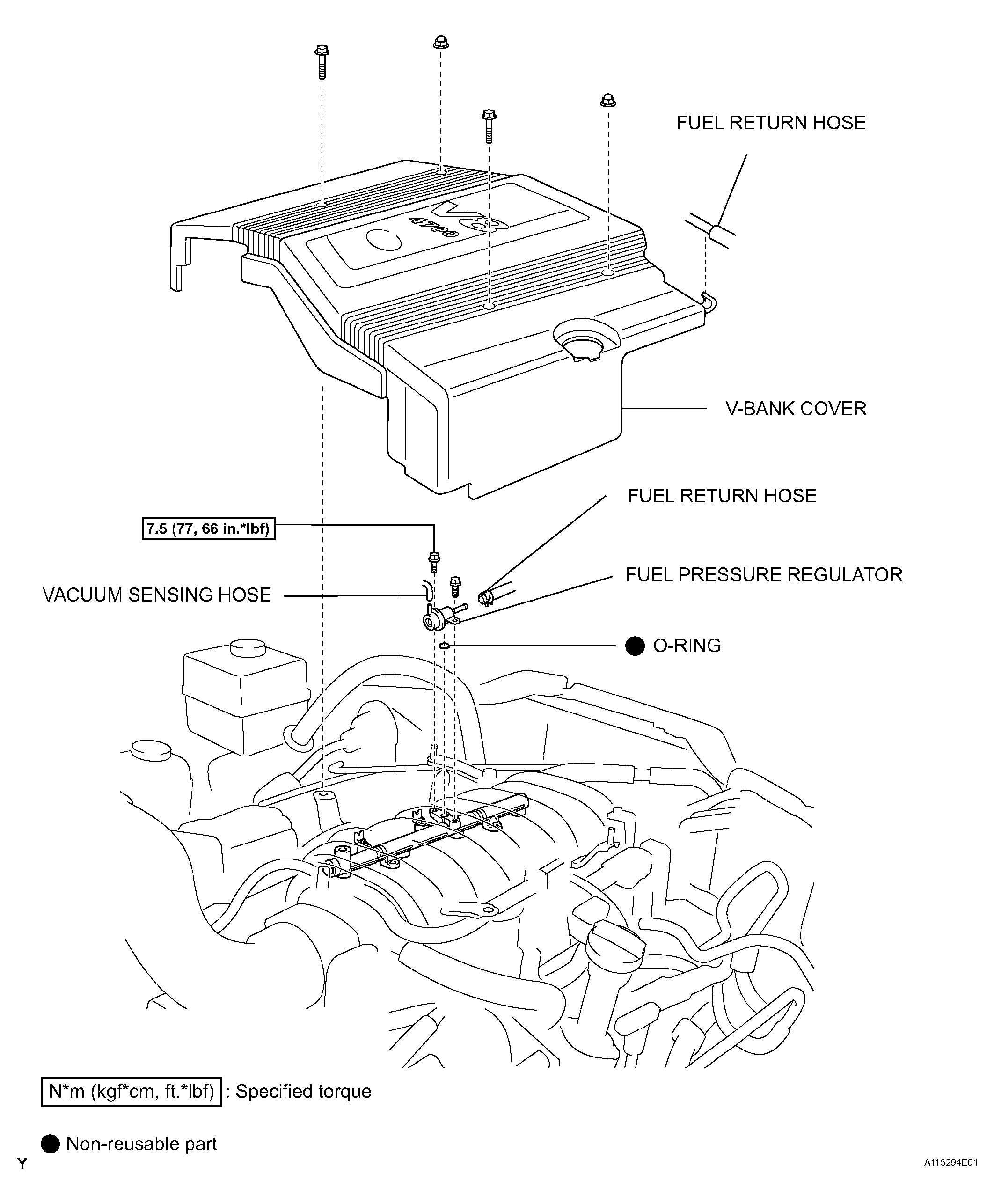

Fig 1: Exploded View Of Fuel Pressure Regulator Components & Replacements
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
