Fuel Pump Resistor: Removal

  1. REMOVE FUEL PUMP RESISTOR
    1. Disconnect the resistor connector.
    2. Remove the bolt and resistor.

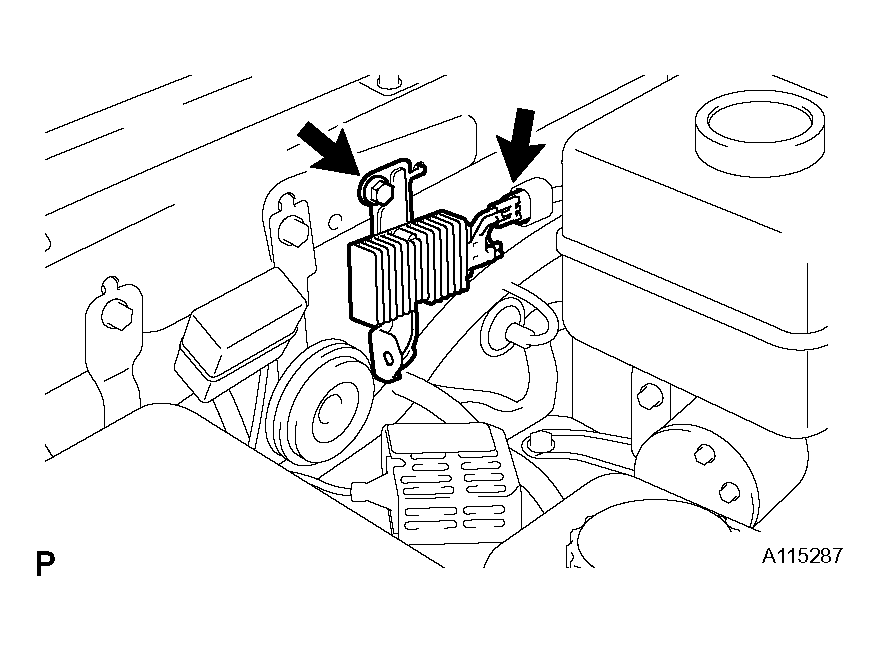

      Fig 1: Removing Fuel Pump Resistor
      G04436047Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
