Fuel Pump: Components

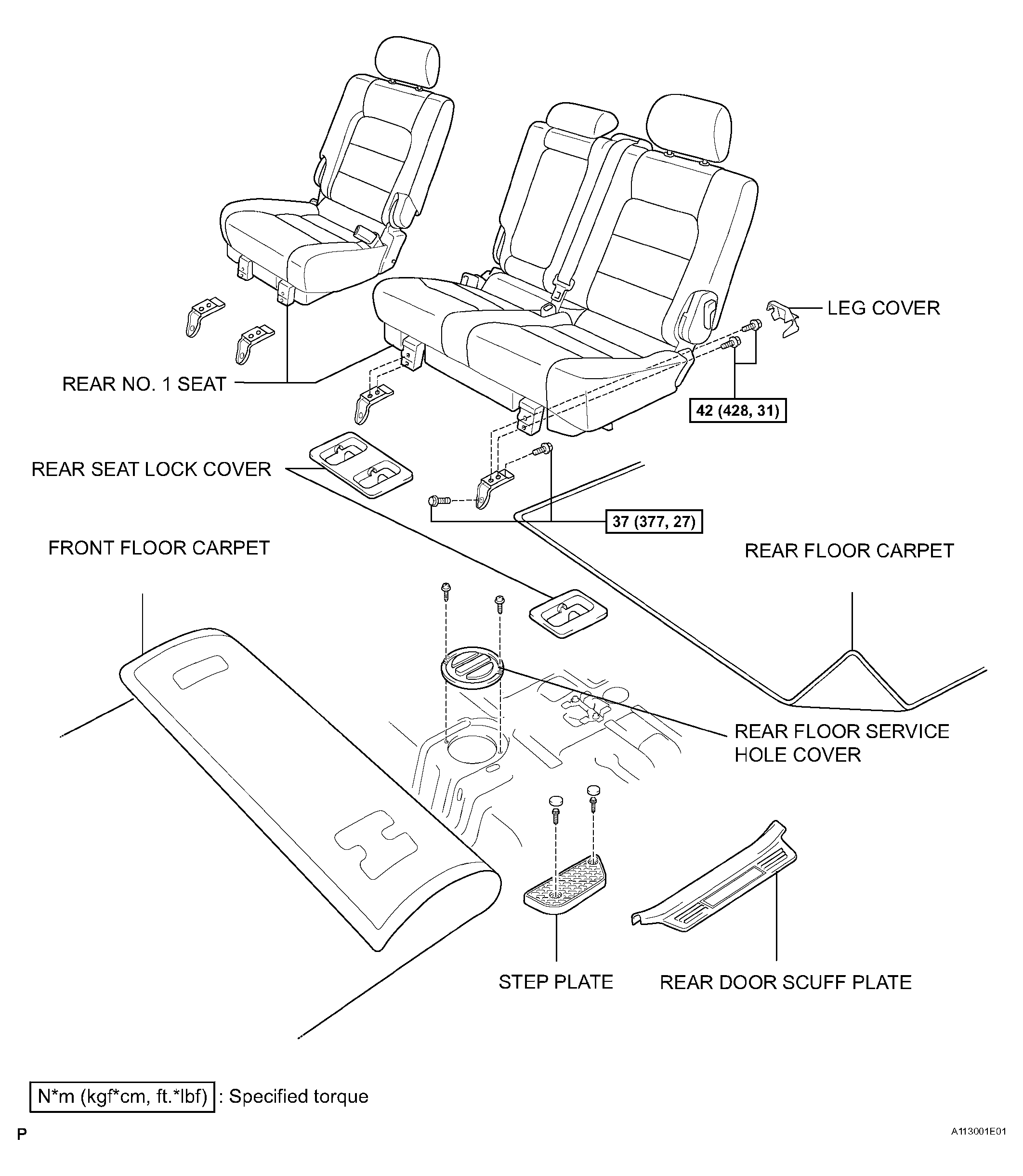

Fig 1: Exploded View Of Fuel Pump Components & Replacements (1 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

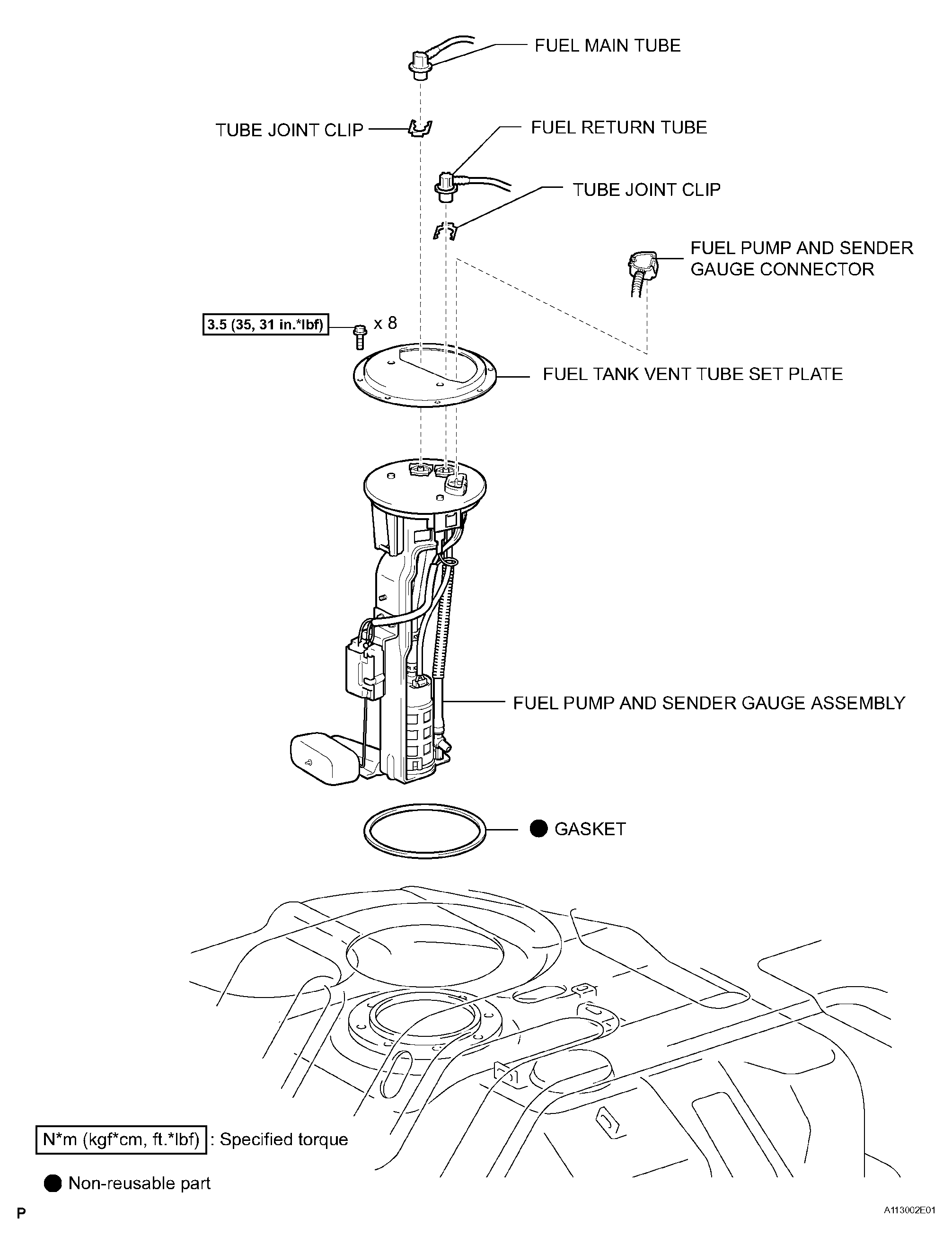

Fig 2: Exploded View Of Fuel Pump Components & Replacements (2 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

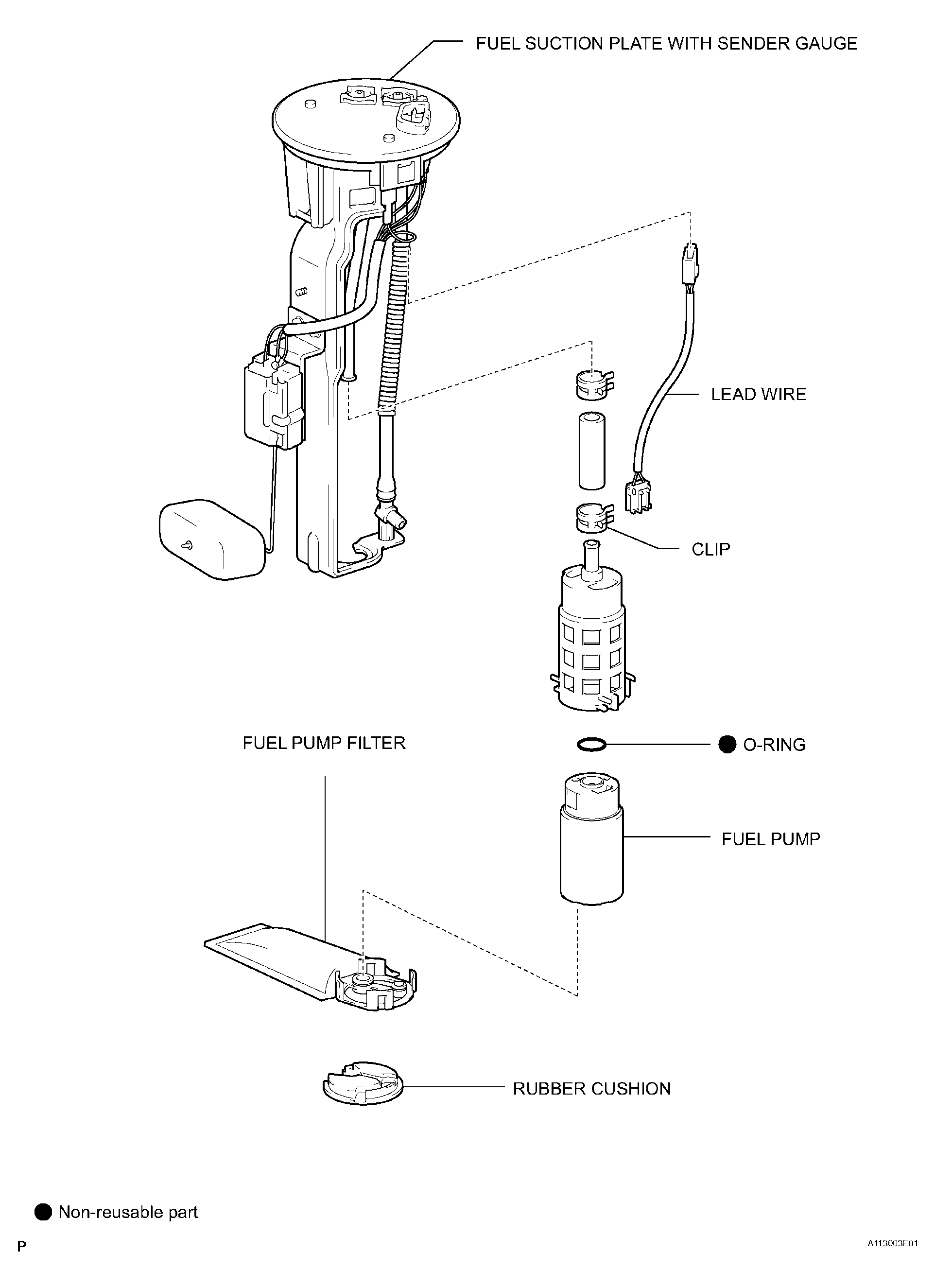

Fig 3: Exploded View Of Fuel Pump Components & Replacements (3 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
