Air Conditioning Control Assembly: Disassembly

WARNING: This page is about a different car, the 2006 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE CONTROL KNOB (w/Navigation System)
1. Using a screwdriver, pull out the knobs.
  HINT:

  Tape the screwdriver tip before use.

  Fig 1: Pulling Out Knobs Using Screwdriver
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE INTEGRATION CONTROL PANEL (w/Navigation System)
1. Remove the 2 screws.

  Fig 2: Removing Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the screw and board.

  Fig 3: Removing Screw & Board
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE INTEGRATION CONTROL HOUSING (w/Navigation System)
1. Disconnect the connector clamps.
2. Remove the 2 screws and pull out the board from the integration control housing.
3. Using a screwdriver, pull out the knobs.
  HINT:

  Tape the screwdriver tip before use.
4. Remove the nut.

  Fig 4: Removing Integration Control Housing Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE HEATER CONTROL KNOB (w/o Navigation System)
1. Using a screwdriver, pull out the knobs.
  HINT:

  Tape the screwdriver tip before use.

  Fig 5: Pulling Out Knobs Using Screwdriver
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE HEATER CONTROL PANEL (w/o Navigation System)

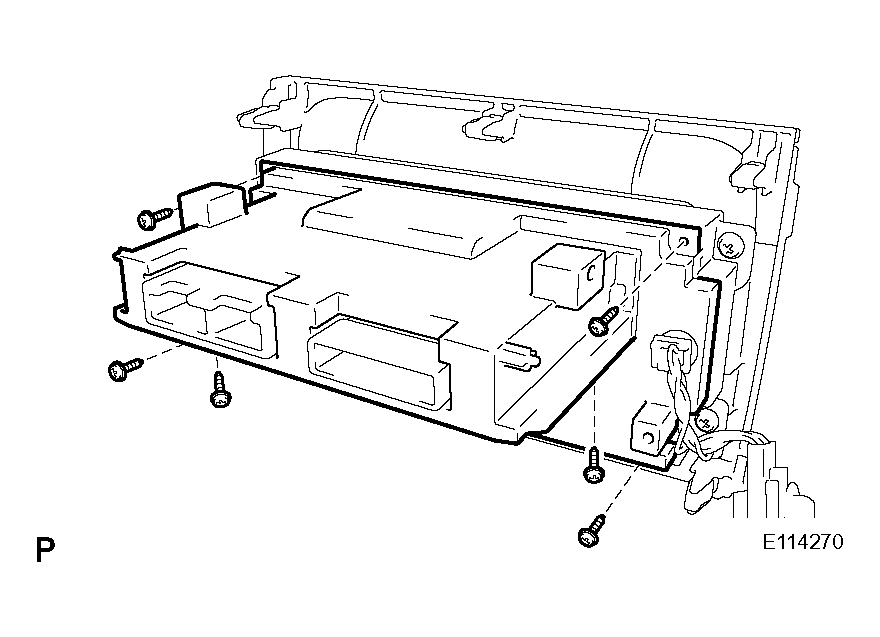

1. Remove the 6 screws and pull out the A/C amplifier.

  Fig 6: Removing A/C Amplifier Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE HEATER CONTROL HOUSING (w/o Navigation System)
1. Remove the 5 screws and board from heater control housing.

  Fig 7: Removing Heater Control Housing Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
