Air Conditioning Control Assembly: Removal

WARNING: This page is about a different car, the 2006 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

HINT:

At the time of installation, perform initialization (see INITIALIZATION ).

NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
REMOVE INSTRUMENT PANEL REGISTER
1. Disengage the 12 clips and remove the center resistors, then disconnect the connectors.

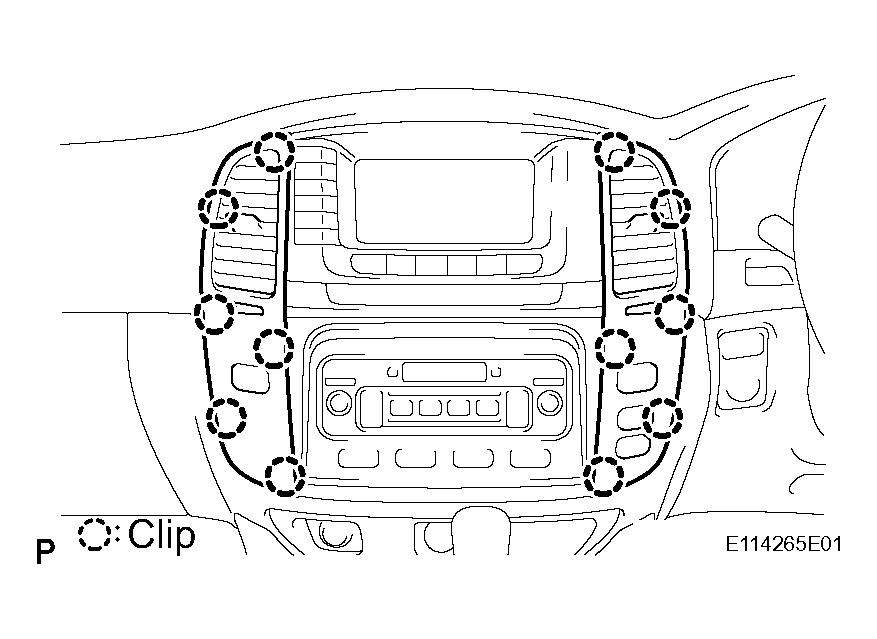

  Fig 1: Removing Center Resistors
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE INTEGRATION CONTROL PANEL ASSEMBLY
1. Remove the 4 bolts.
2. Disengage the 7 clips and remove the integration control panel assembly, then disconnect the connectors.

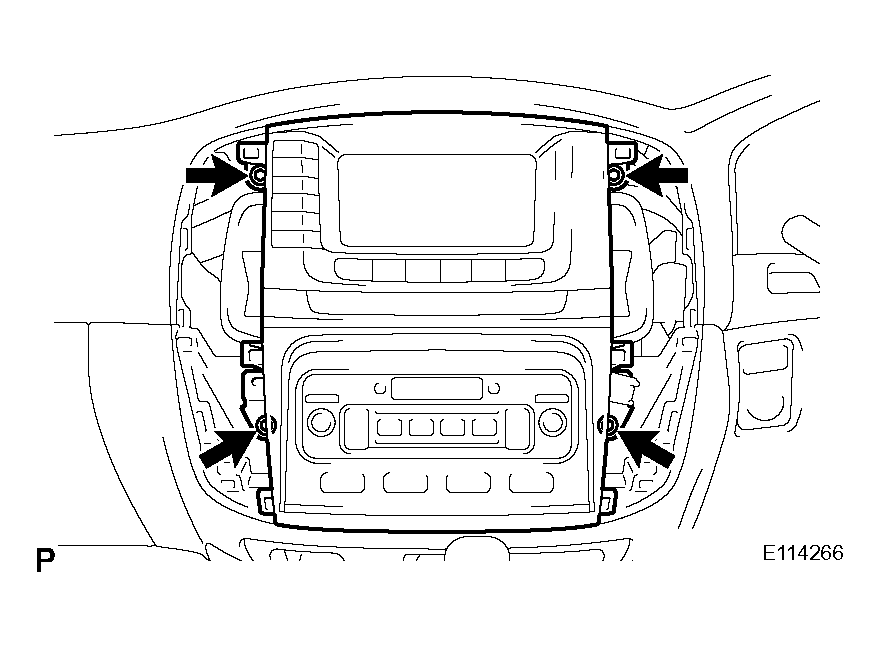

  Fig 2: Removing Integration Control Panel Assembly Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE A/C AMPLIFIER ASSEMBLY (w/ Navigation System)
1. Disconnect the connector clamp.
2. Remove the 3 screws, 4 bolts and radio receiver bracket LH.

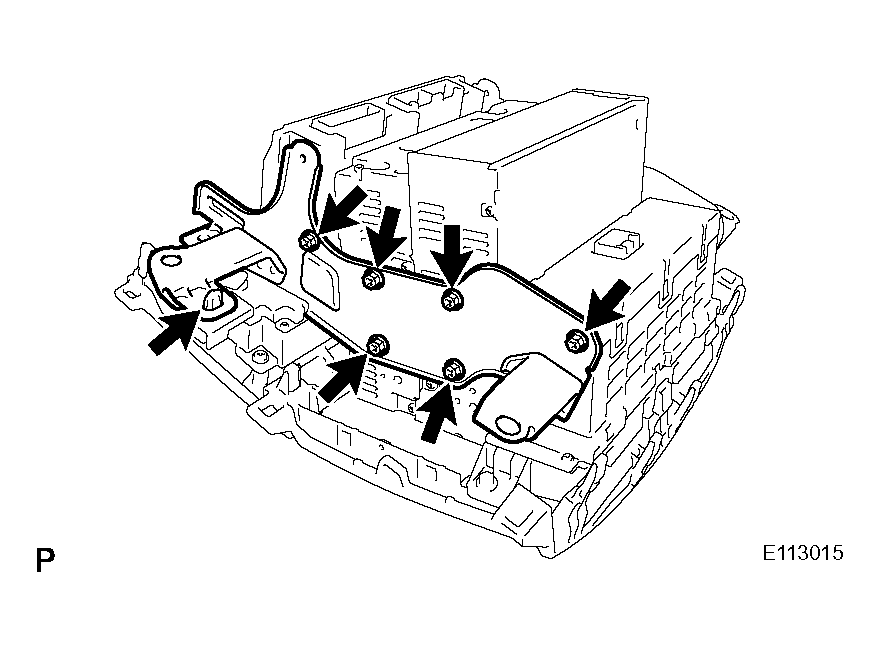

  Fig 3: Removing Screws, Bolts & Radio Receiver Bracket LH
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the 2 screws and A/C amplifier.

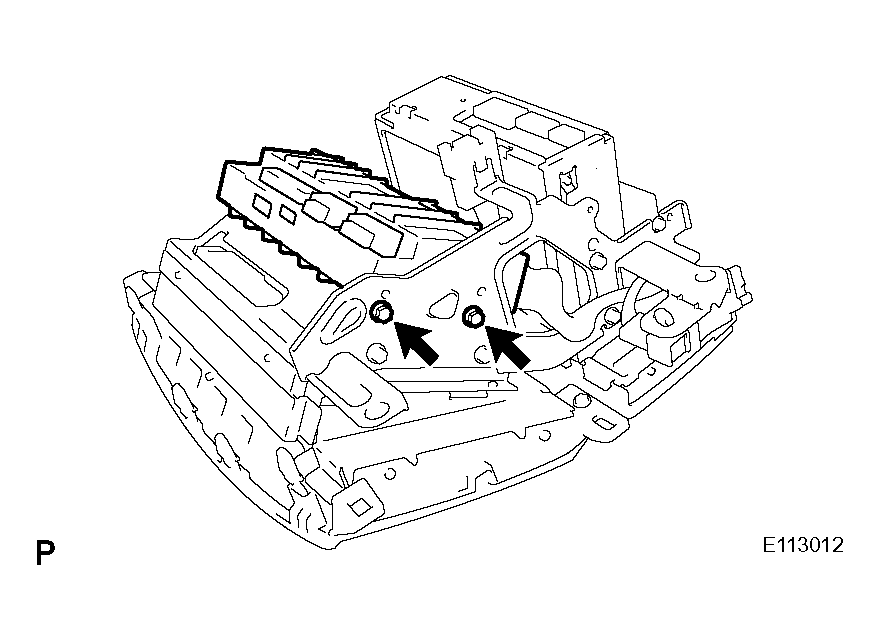

  Fig 4: Removing Screws & A/C Amplifier
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE MULTI-DISPLAY (w/ Navigation System)
1. Remove the 2 screws, 2 bolts and EMV.

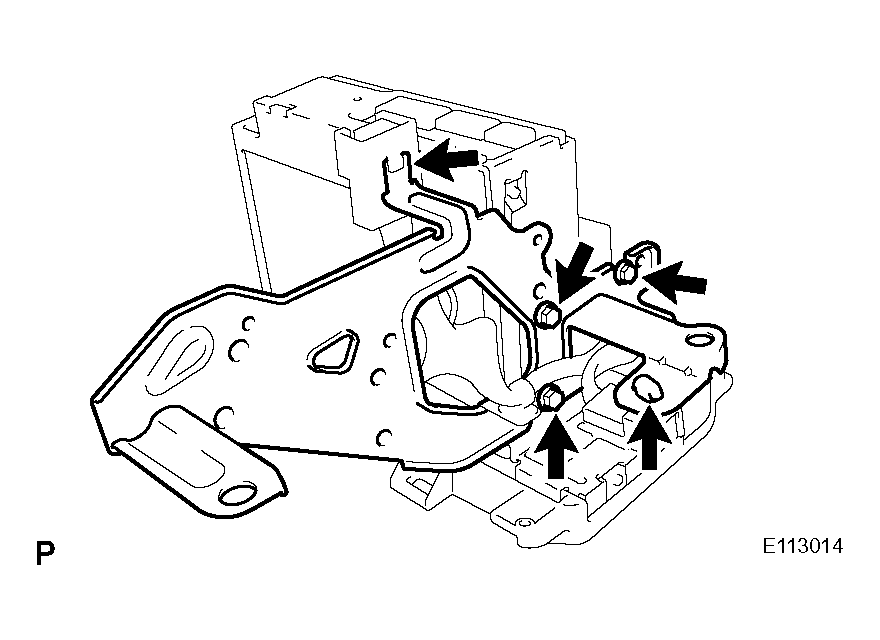

  Fig 5: Removing Screws, Bolts & EMV
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE INTEGRATION CONTROL PANEL (w/ Navigation System)
1. Disconnect the connector clamps.
2. Remove the screw, the 2 bolts and radio receiver bracket RH.
3. Remove the integration control panel from the radio receiver.

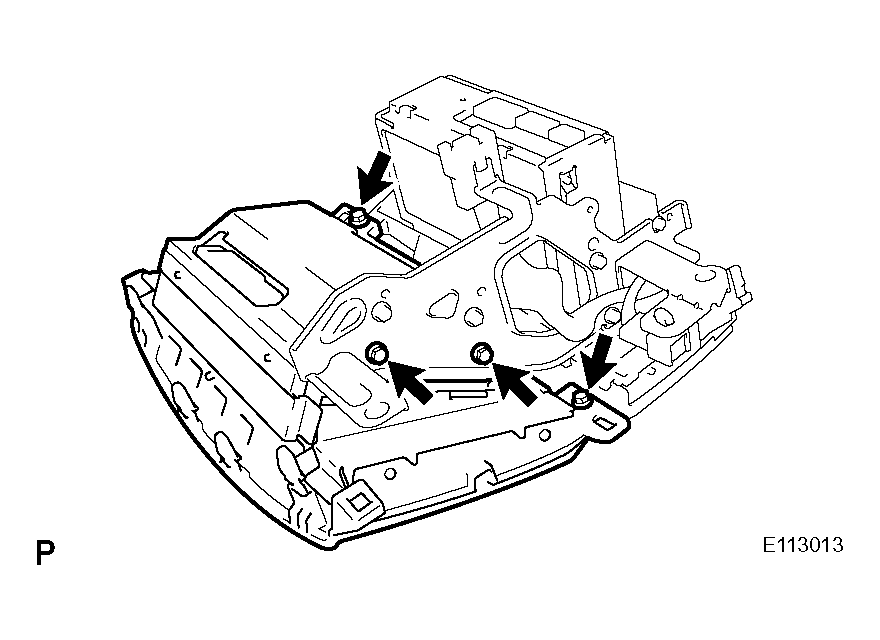

  Fig 6: Removing Integration Control Panel From Radio Receiver
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE HEATER CONTROL PANEL ASSEMBLY (w/o Navigation System)
1. Disconnect the connector clamp.
2. Remove the 6 bolts and radio receiver bracket LH.

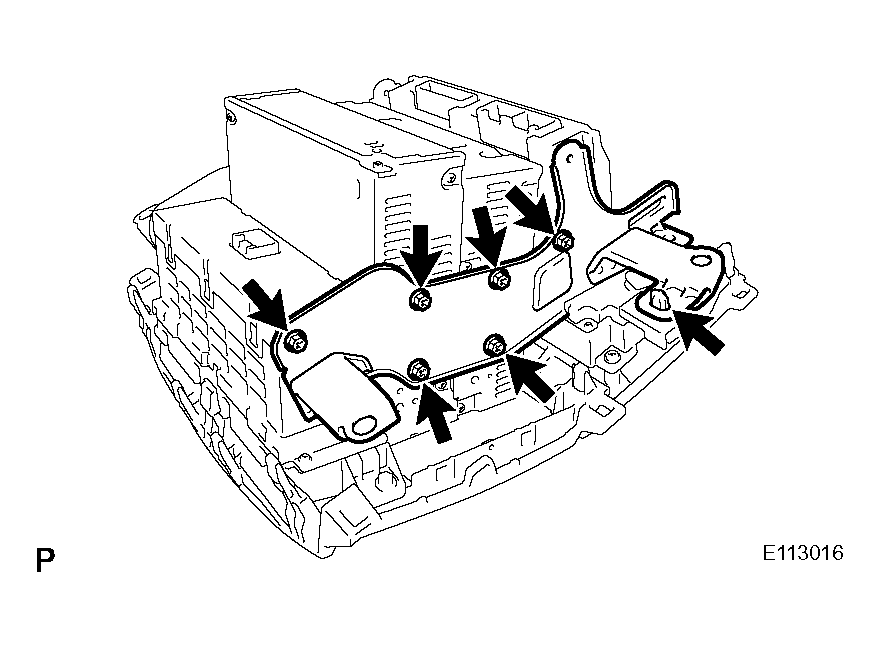

  Fig 7: Removing Bolts & Radio Receiver Bracket LH
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Disconnect the connector clamp.
4. Remove the 6 bolts and radio receiver bracket RH.
5. Remove the heater control panel.

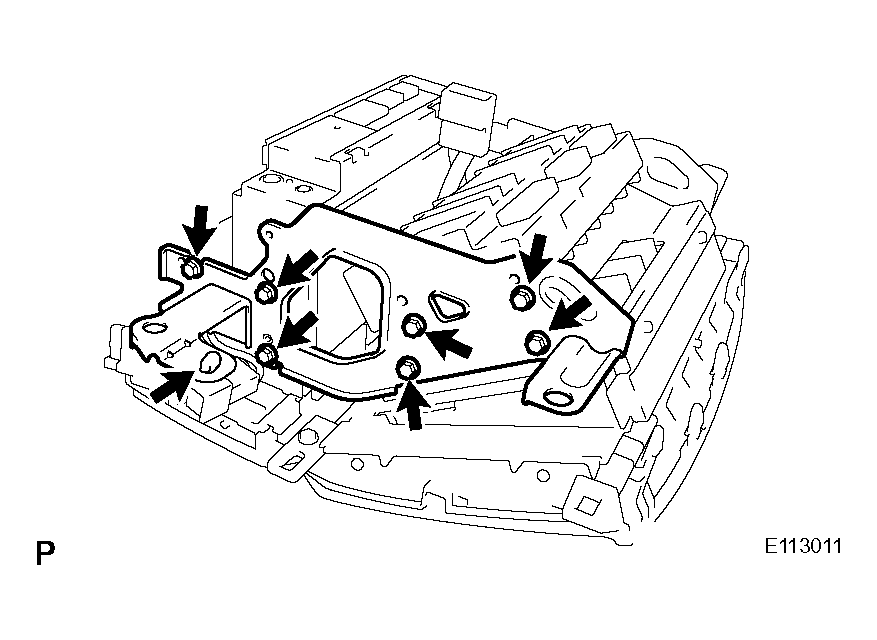

  Fig 8: Removing Bolts & Radio Receiver Bracket RH
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
