Section 12 (Emission Control System): Canister: Removal

WARNING: This page is about a different car, the 2006 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
REMOVE CANISTER ASSEMBLY
1. Disconnect the connector and detach the clamp.

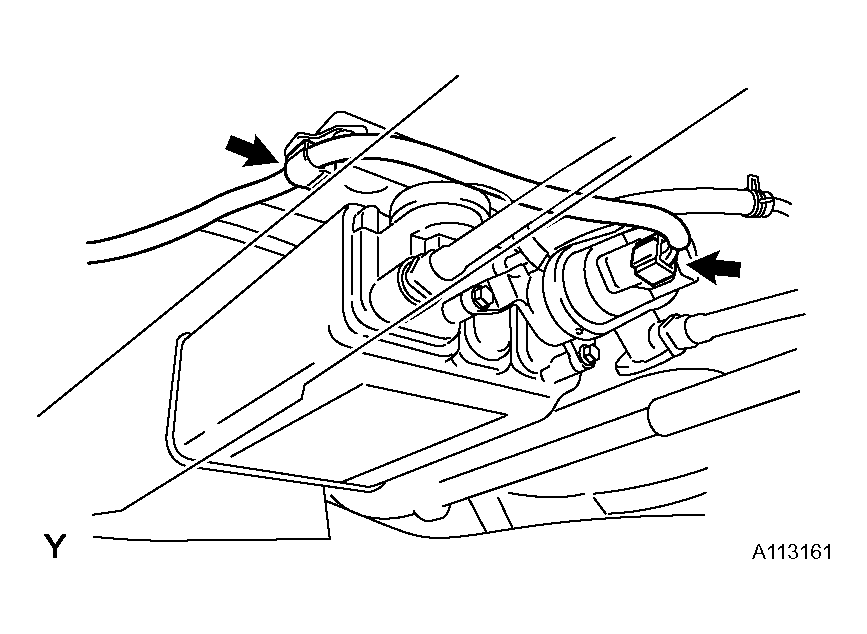

  Fig 1: Disconnecting Connector & Detach Clamp
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disconnect the 2 tubes and hose.
  1. Using a screwdriver, pry up the retainer.
    HINT:

    Do not remove the retainer.

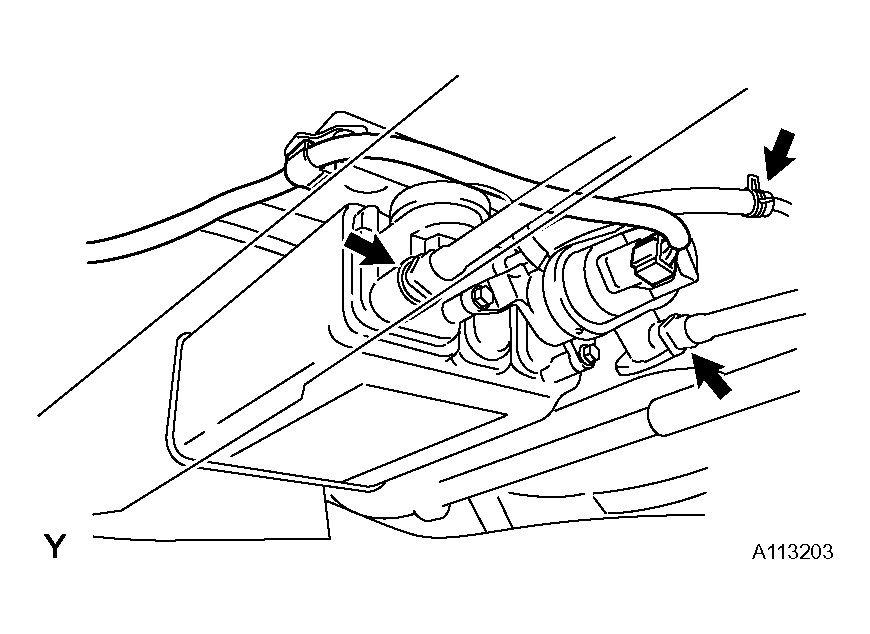

    Fig 2: Prying Up Retainer
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. Disconnect the purge line hose.
  3. Disconnect the air inlet line tube from the canister filter.
  4. Disconnect the vent line tube from the canister (leak detection pump).

    Fig 3: Disconnecting Air Inlet Line Tube From Canister Filter
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the 3 bolts and canister assembly.

  Fig 4: Removing Bolts & Canister Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
