Section 32 (Multiplex Communication)
›
Multiplex Communication System
›
Terminals Of Ecu
Terminals Of Ecu
WARNING:
This page is about a different car, the 2006 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

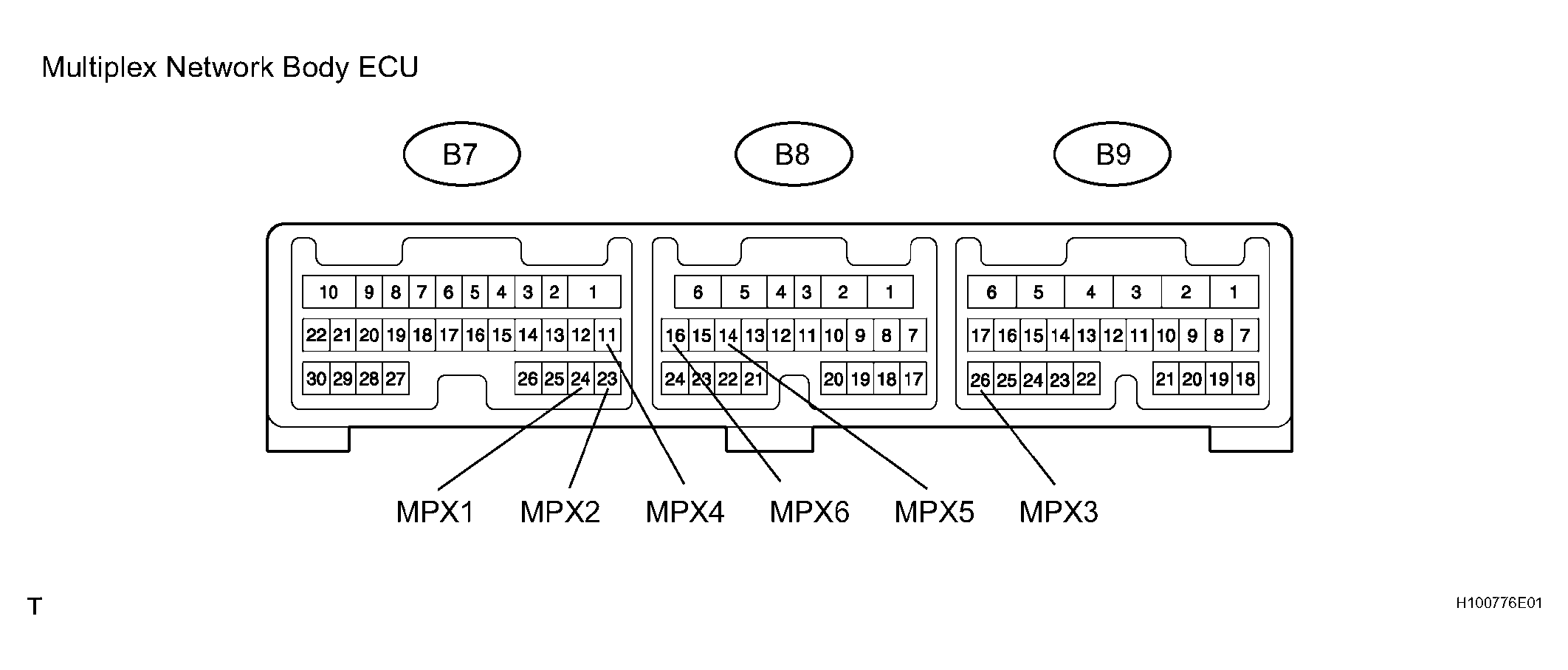

Fig 1: Identifying Multiplex Network Body ECU Connector Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

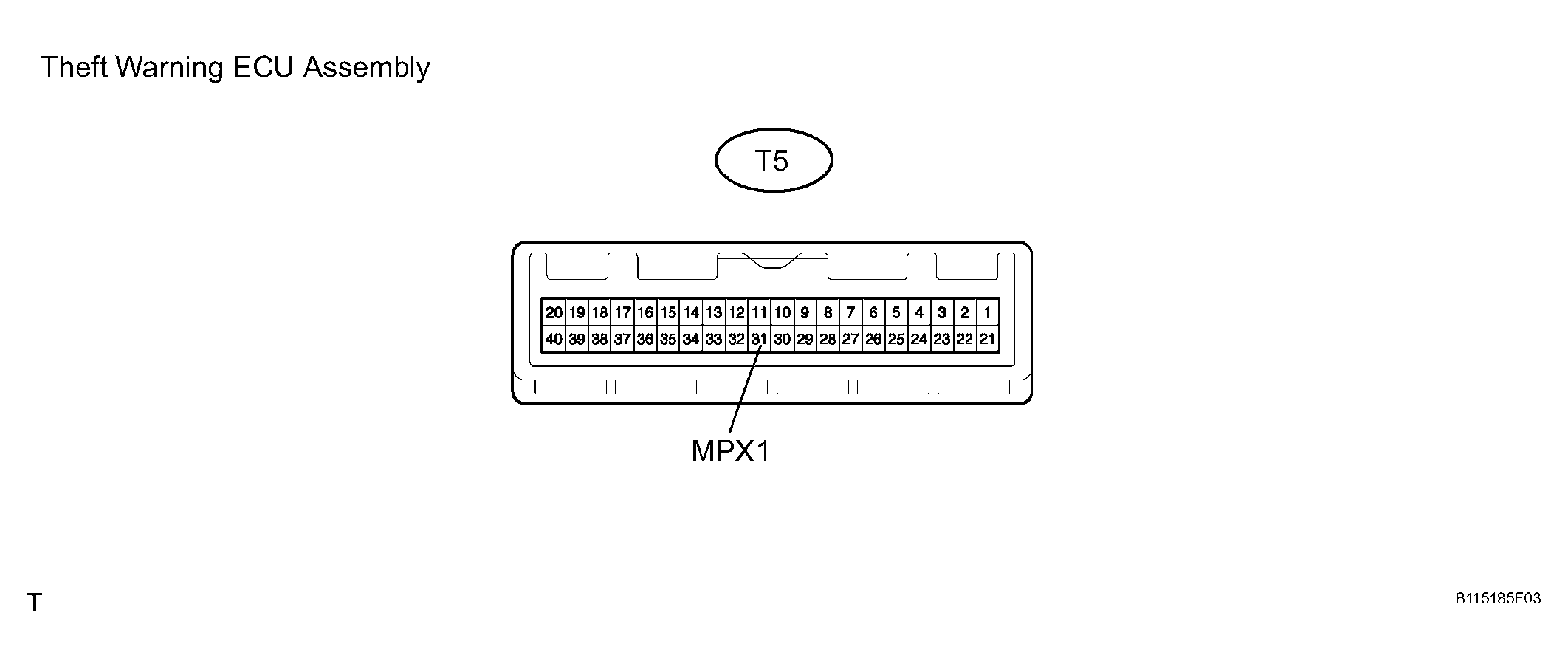

Fig 2: Identifying Theft Warning ECU Assembly Connector Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

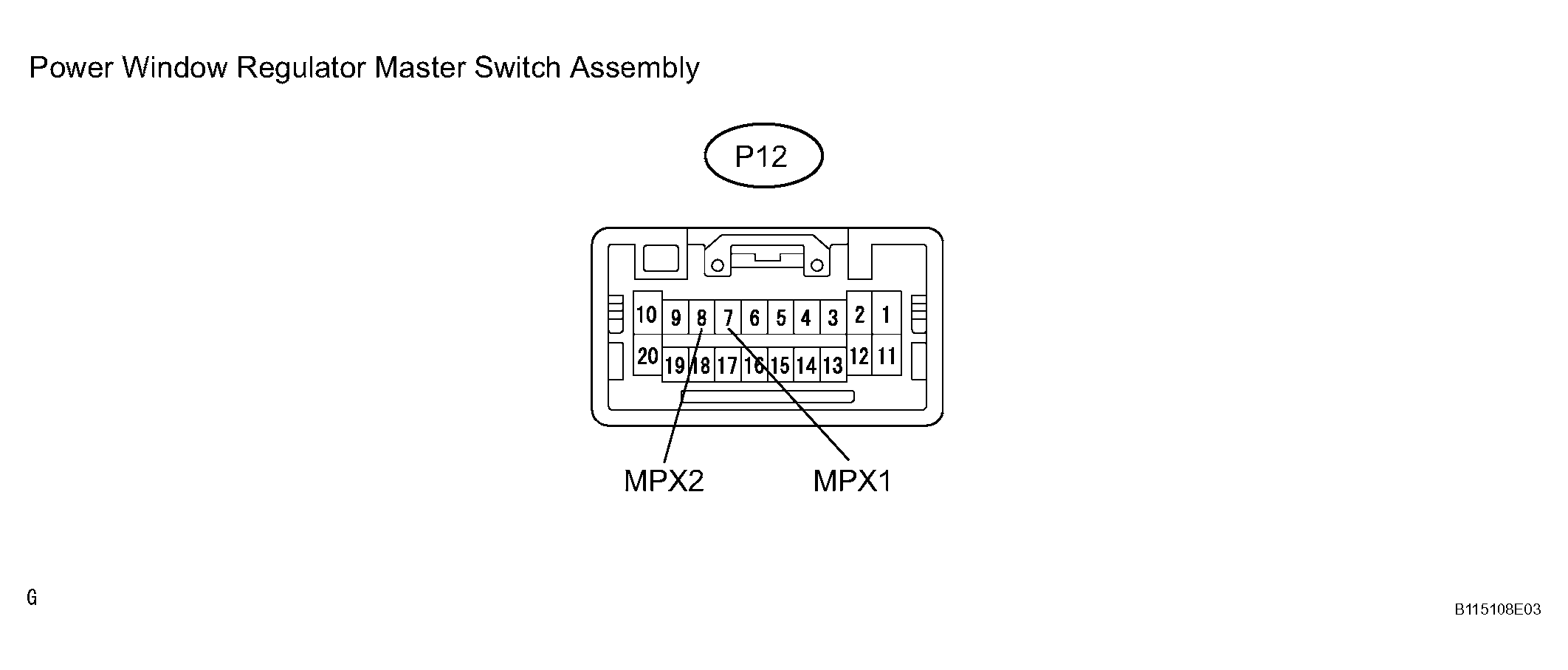

Fig 3: Identifying Power Window Regulator Master Switch Assembly Connector Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

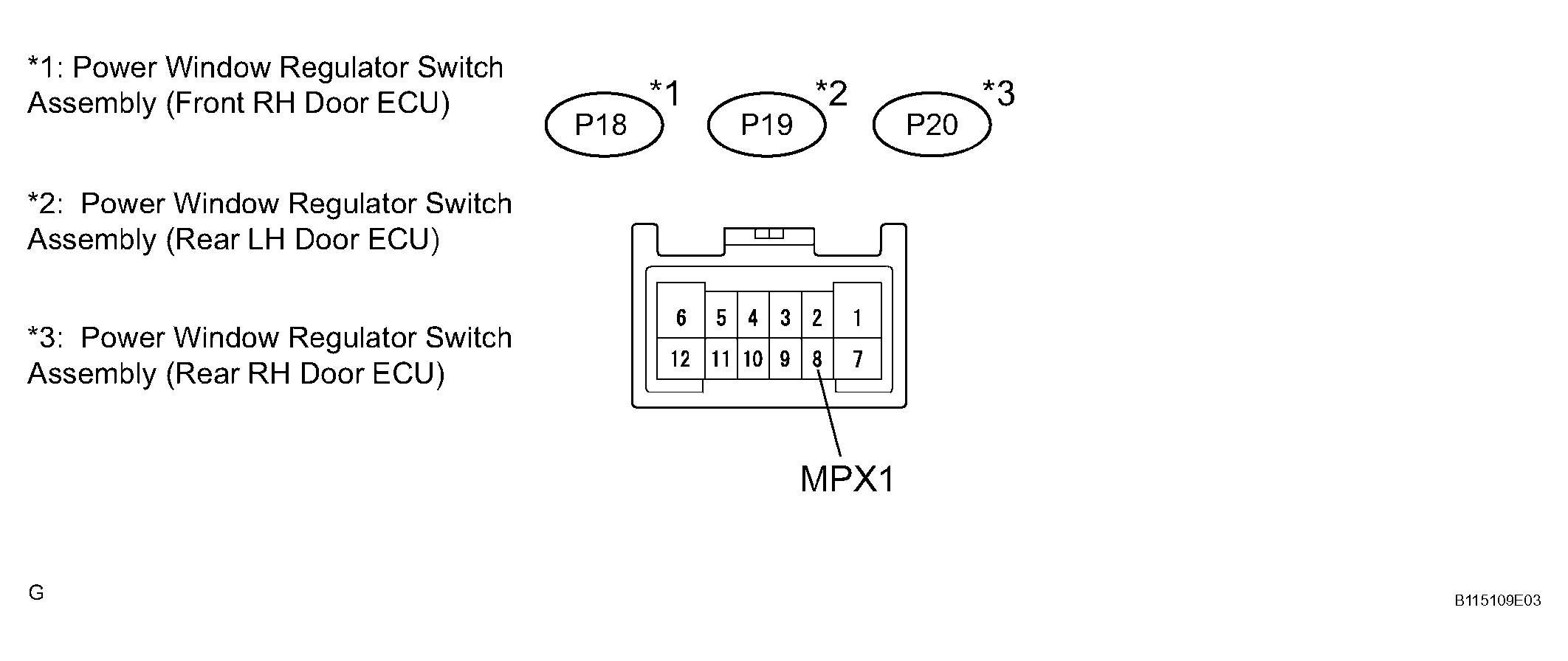

Fig 4: Identifying Power Window Regulator Switch Assembly Connector Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

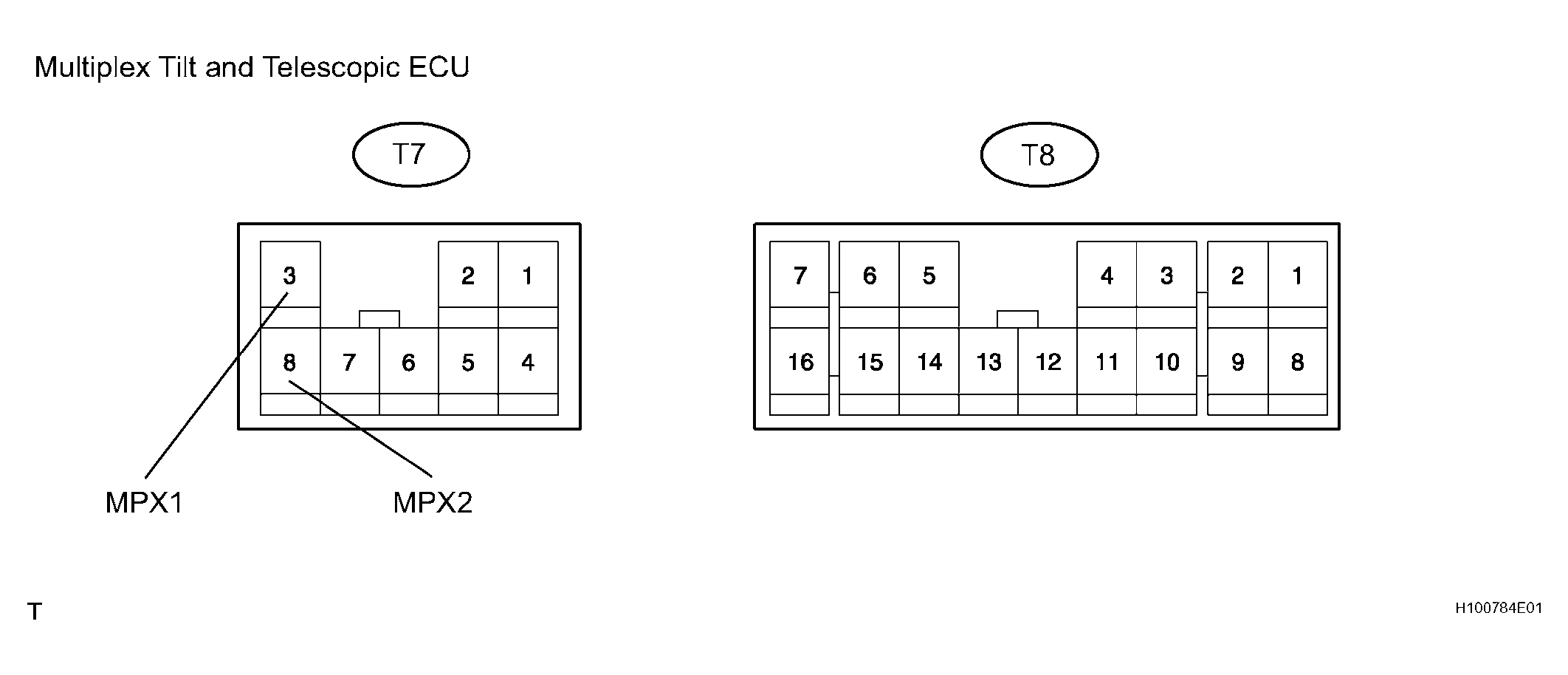

Fig 5: Identifying Multiplex Tilt & Telescopic ECU Connector Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
