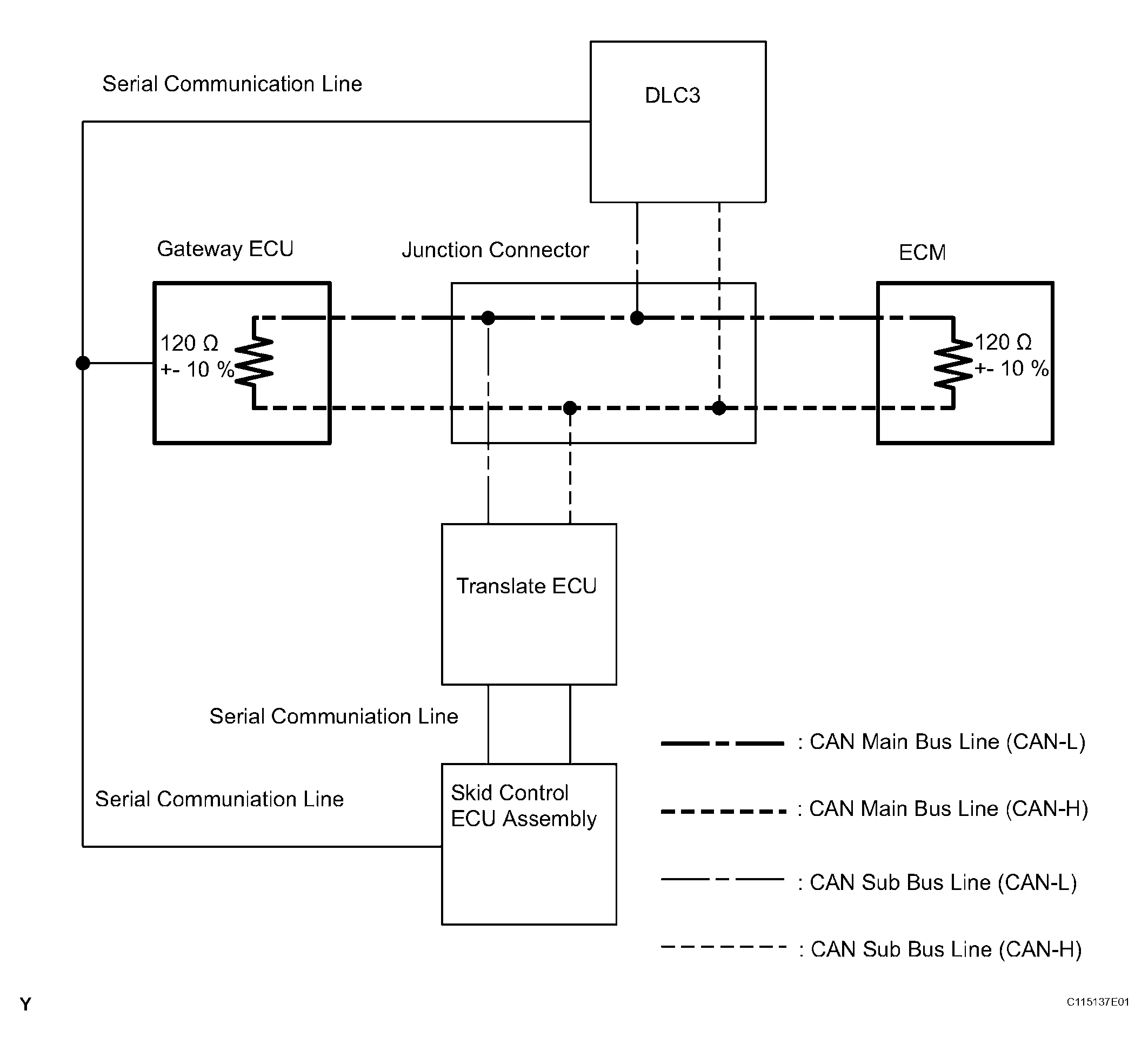

System Diagram
WARNING: This page is about a different car, the 2006 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
HINT:
The ECM uses the CAN communication system to perform DTC communication instead of the conventional communication line (SIL).
