Section 8 (Engine Cooling System): Radiator: Components

WARNING: This page is about a different car, the 2006 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

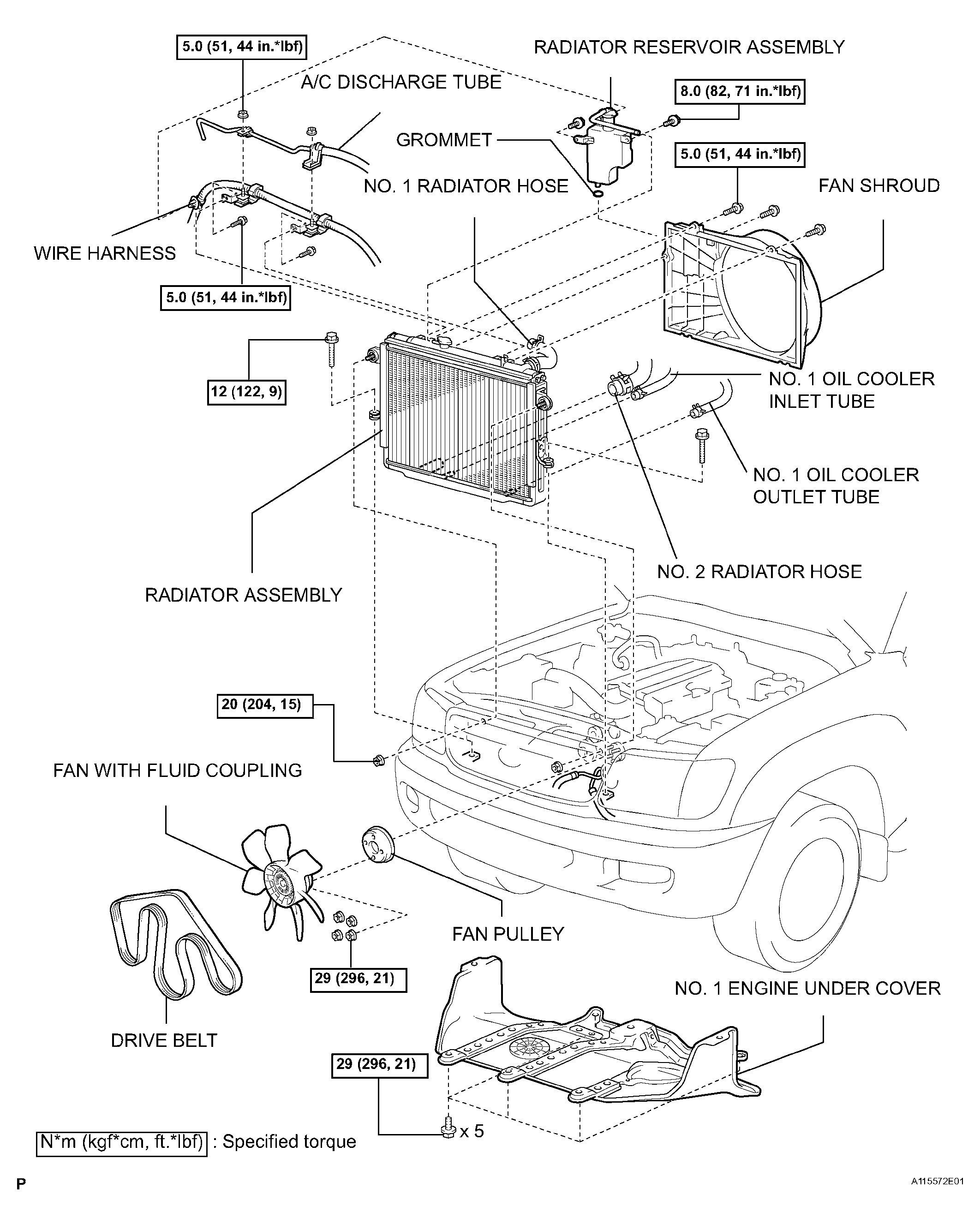

Fig 1: Radiator Replacement Components With Torque Specifications (1 Of 2)
