Front Shock Absorber: Components

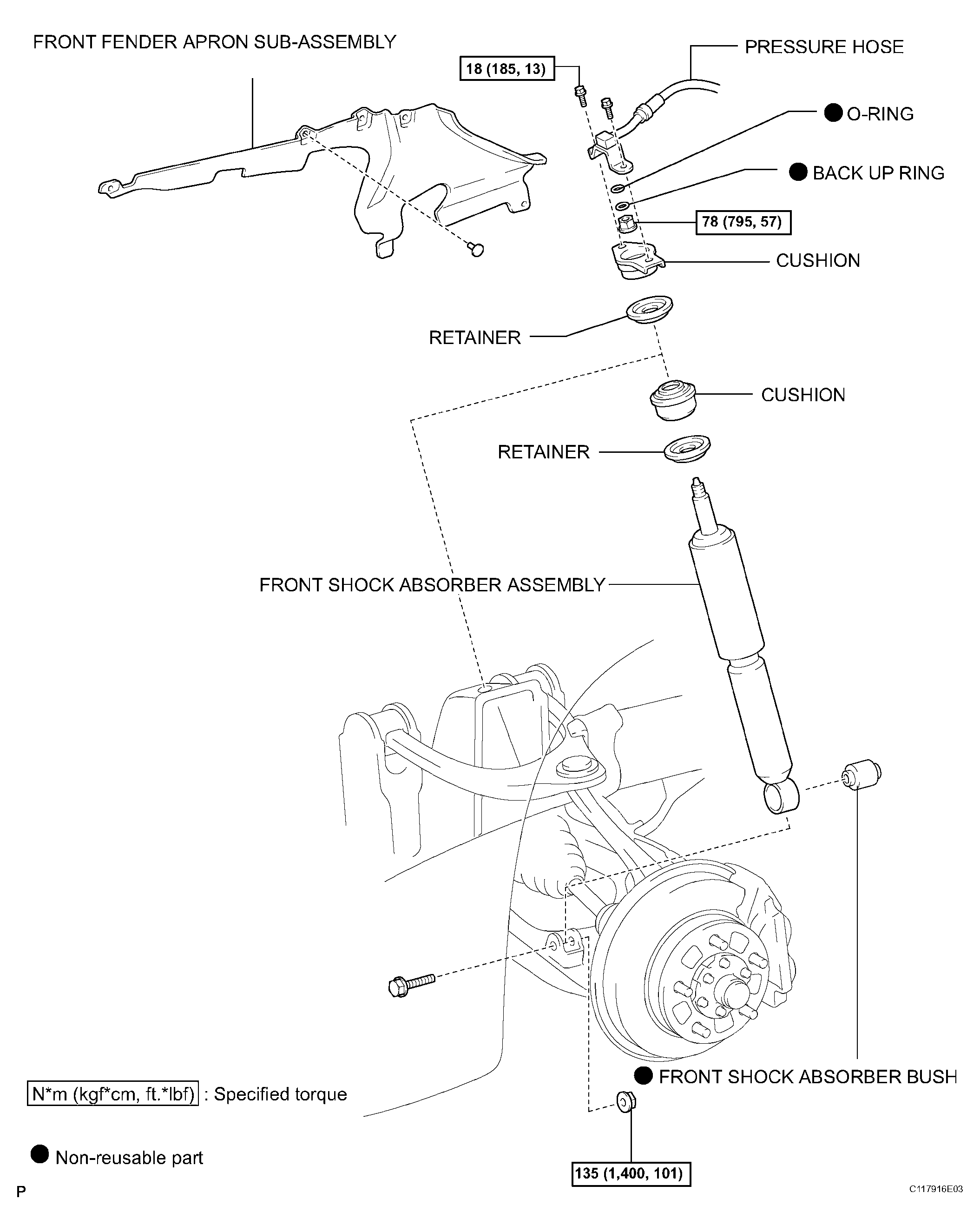

Fig 1: Front Shock Absorber Replacement Components & Torque Specification
G04437556Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
