Front Stabilizer Bar: Removal

REMOVE ENGINE UNDER COVER
REMOVE FRONT STABILIZER LINK ASSEMBLY LH
1. Remove the bolt, nut, 2 retainers, 2 cushions and stabilizer bar link.
  Torque: 52 N*m (530 kgf*cm, 38 ft.*lbf) for bolt 25 N*m (250 kgf*cm, 18 ft.*lbf) for nut
REMOVE FRONT STABILIZER LINK ASSEMBLY RH
HINT:

Use the same procedures described for the LH side.

Fig 1: Removing Bolt, Nut, Retainers, Cushions & Stabilizer Bar Link
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FRONT STABILIZER BAR
1. Remove the 4 bolts, 2 brackets and 2 cushions.
  Torque: 18 N*m (185 kgf*cm, 13 ft.*lbf)
2. Remove the stabilizer bar.

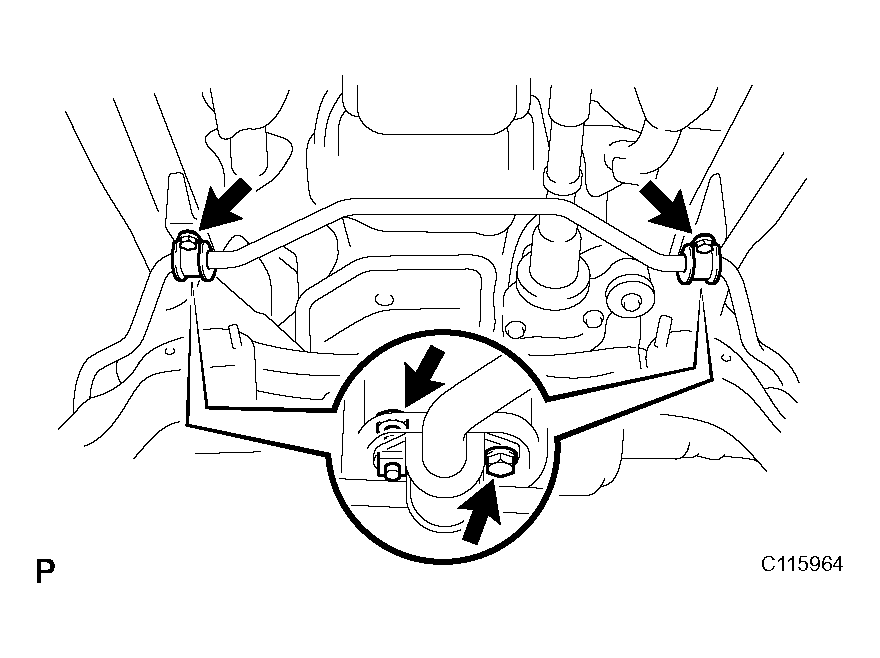

  Fig 2: Removing Bolts, Brackets & Cushions
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
