Torsion Bar Spring: Components

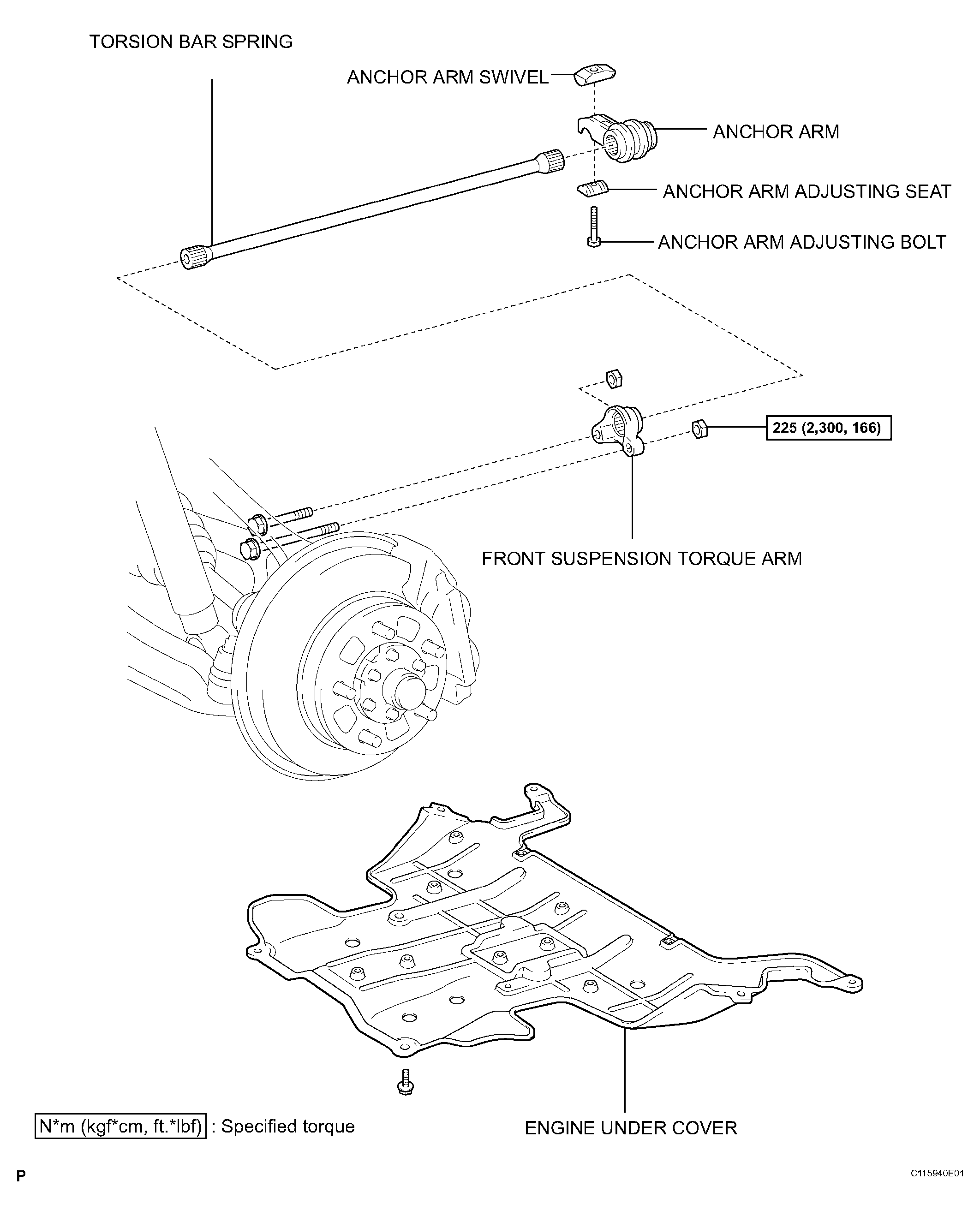

Fig 1: Torsion Bar Spring Replacement Components & Torque Specification

G04437548

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
