Automatic Transmission Assembly: Installation

  1. INSPECT TORQUE CONVERTER CLUTCH ASSEMBLY
    1. Inspect the torque converter clutch assembly (see TORQUE CONVERTER CLUTCH AND DRIVE PLATE ).
  2. INSTALL TORQUE CONVERTER CLUTCH ASSEMBLY
    1. Install the torque converter clutch to the automatic transmission.
    2. Using a vernier caliper and straightedge, measure the dimension A between the transmission and the end surface of the drive plate.

      Standard dimension: A = 22.28 mm (0.8772 in.)

      Fig 1: Measuring Dimension Between Transmission And End Surface Of Drive Plate
      G05197176Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Using a vernier caliper and a straightedge, measure the distance from the installed surface of the transmission housing to the installed surface of the torque converter clutch.

    Correct distance: More than 17.1 mm (0.673 in.)

  3. INSTALL TRANSFER ASSEMBLY
    1. Install the transfer assembly (see REASSEMBLY ).
    Fig 2: Measuring Distance Between Installed Surface Of Transmission Housing And Torque Converter Clutch
    G05197177Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL WIRE HARNESS AND HOSE
    1. Connect the 5 hoses and install the wire harness and hose.
    2. Install the 6 connector clamps.
    3. Connect the 5 connectors.
    4. Attach the lock and connect the connector.
    5. Install the 4 bolts.

    Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)

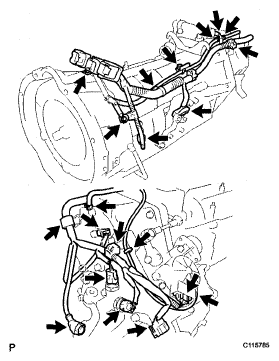

    Fig 3: Locating Connectors, Wire Harness, Connector Clamps And Hose
    G05197175Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. INSTALL AUTOMATIC TRANSMISSION ASSEMBLY
    1. Install the transmission unit with the 10 bolts.

      Torque: 71 N*m (724 kgf*cm, 52 ft.*lbf) for bolt A

      37 N*m (377 kgf*cm, 27 ft.*lbf) for bolt B

    2. Install the transmission wire clamp bolt.
    Fig 4: Identifying Transmission Unit Bolts
    G05197179Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. INSTALL ENGINE MOUNTING INSULATOR REAR
    1. Install the mounting insulator with the 4 bolts.

      Torque: 59 N*m (600 kgf*cm, 43 ft.*lbf)

      HINT:

      Install the insulator rear with the inscribing mark facing backward.

      Fig 5: Locating Mounting Insulator Bolts
      G05197173Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. INSTALL CROSSMEMBER AND TRANSFER CASE PROTECTOR
    1. Install the crossmember with the 8 bolts and 2 nuts.

      Torque: 50 N*m (510 kgf*cm, 37 ft.*lbf) for bolt

      74 N*m (750 kgf*cm, 54 ft.*lbf) for nut

    2. Install the transfer case protector with the 3 bolts.

    Torque: 29 N*m (296 kgf*cm, 21 ft.*lbf)

    Fig 6: Installing Crossmember
    G05197172Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. CONNECT GROUND CABLE
    1. Install the ground cable with the bolt.
    Fig 7: Locating Ground Cable Bolt
    G05197182Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. CONNECT OIL COOLER TUBE
    1. Loosely install the tip of the oil cooler tubes to the automatic transmission by hand.
    2. Install the clamp with the bolt.

      Torque: 12 N*m (122 kgf*cm, 9 ft.*lbf)

    3. Using SST, tighten the tubes.

    SST 09023-12701

    Torque: 34 N*m (346 kgf*cm, 25 ft.*lbf) for use without SST

    31 N*m (316 kgf*cm, 23 ft.*lbf) for use with SST

    Fig 8: Tightening Oil Cooler Tube
    G05197170Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. INSTALL DRIVE PLATE AND TORQUE CONVERTER CLUTCH SETTING BOLT
    1. Hold the crankshaft pulley bolt with a wrench and install the 6 torque converter clutch setting bolts.

      Torque: 48 N*m (490 kgf*cm, 35 ft.*lbf)

      HINT:

      First install the green colored bolt.

      Fig 9: Locating Torque Converter Clutch Setting Bolt
      G05197169Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the hole plug with the bolt.

    Torque: 18 N*m (185 kgf*cm, 13 ft.*lbf)

    Fig 10: Locating Hole Plug Bolt
    G05197168Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. CONNECT WIRE HARNESS
    1. Connect the transmission wire and install the 3 clamps to the transmission unit.
    2. Connect the 3 connectors.
    Fig 11: Locating Transmission Wire And Connectors
    G05197167Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. CONNECT FLOOR SHIFT TRANSMISSION CONTROL ROD
    1. Connect the shift control rod and install the pin and clip.
    Fig 12: Locating Floor Shift Transmission Control Rod Clip
    G05197165Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. CONNECT TRANSFER SHIFT LEVER
    1. Connect the transfer shift lever rod assembly with the nut.

    Torque: 12 N*m (122 kgf*cm, 9 ft.*lbf)

  14. INSTALL REAR PROPELLER SHAFT ASSEMBLY (See  INSTALLATION  )
  15. INSTALL FRONT PROPELLER SHAFT ASSEMBLY (See  INSTALLATION  )
  16. INSTALL FRONT EXHAUST PIPE
    Fig 13: Locating Transfer Shift Lever Nut
    G05197188Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Install the front exhaust pipe RH (see INSTALLATION ).
  17. INSTALL TRANSFER SHIFT LEVER BOOT
    1. Install the transfer shift lever boot with the 4 bolts.

      Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)

    2. Install the upper console panel (see INSTALLATION ).
    3. Install the transfer shift lever knob.
    Fig 14: Locating Transfer Shift Lever Boot Bolts
    G05197164Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. INSTALL DRIVE BELT, FAN AND FLUID COUPLING ASSEMBLY, FAN SHROUD AND RADIATOR RESERVOIR
    1. Install the drive belt, fan and fluid coupling assembly, fan shroud and radiator reservoir (see INSTALLATION ).
  19. INSTALL AIR CLEANER CAP SUB-ASSEMBLY
  20. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
  21. PERFORM INITIALIZATION
    1. Perform initialization (see INITIALIZATION ).
    NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
  22. CHECK FOR EXHAUST GAS LEAKS
  23. INSPECT AUTOMATIC TRANSMISSION FLUID
    1. Inspect automatic transmission fluid (see AUTOMATIC TRANSMISSION FLUID ).
  24. INSTALL ENGINE UNDER COVER

    Torque: 28 N*m (286 kgf*cm, 21 ft.*lbf)

    1. Install the No. 1 and No. 2 under covers.
