Automatic Transmission Unit: Components

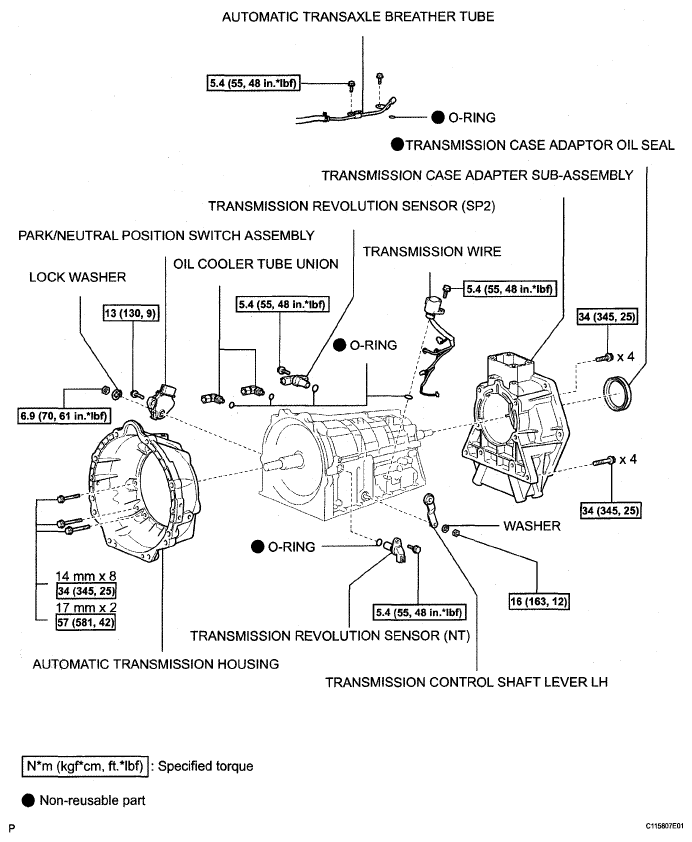

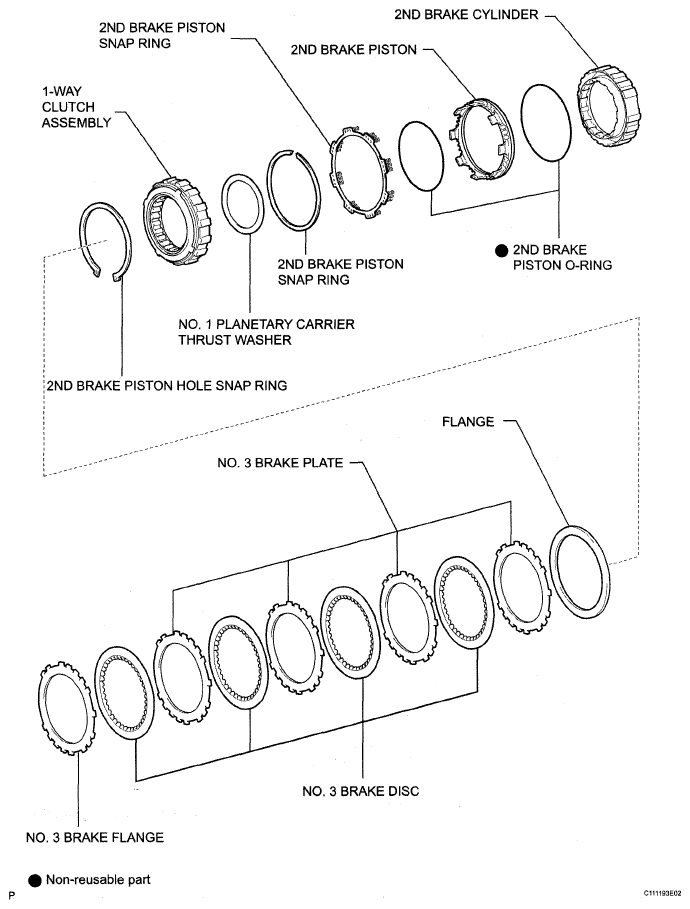

Fig 1: Automatic Transmission Unit Components With Torque Specifications (1 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

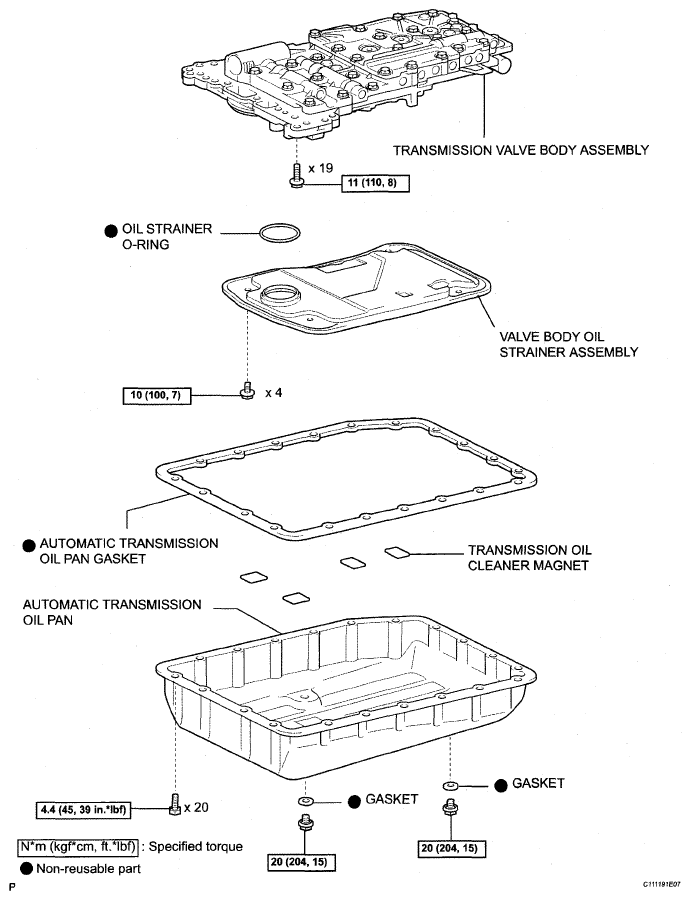

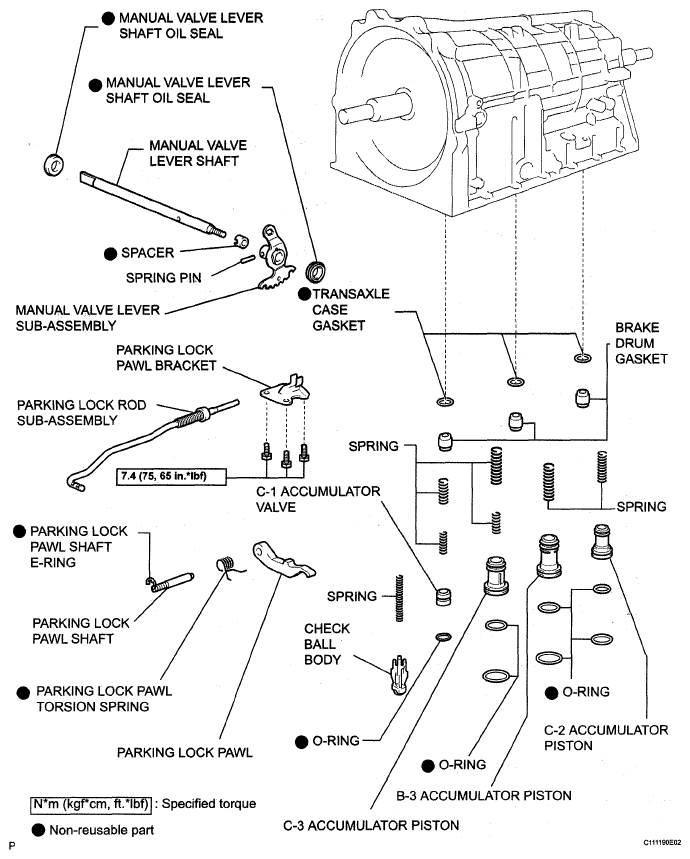

Fig 2: Automatic Transmission Unit Components With Torque Specifications (2 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

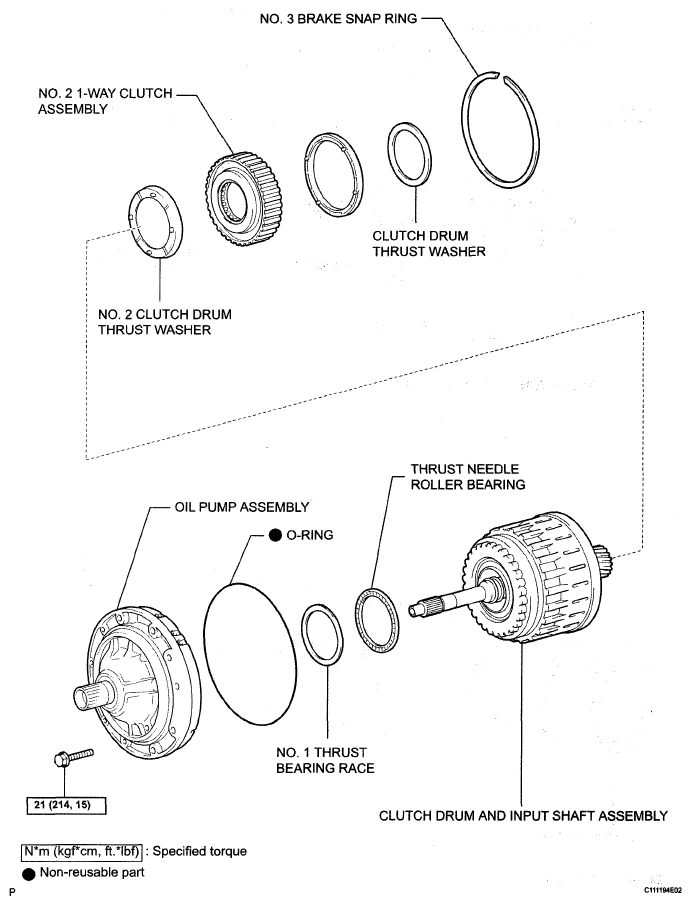

Fig 3: Automatic Transmission Unit Components With Torque Specifications (3 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

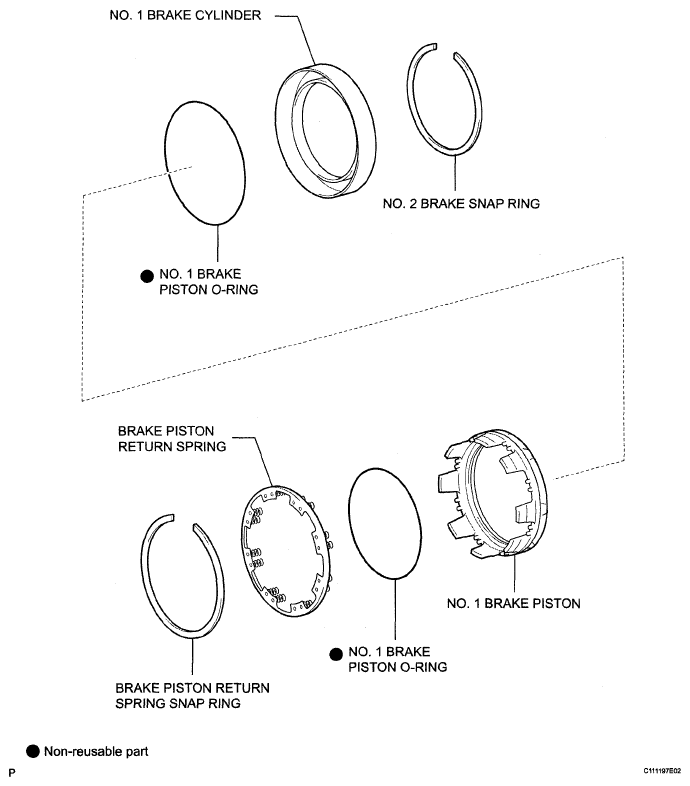

Fig 4: Identifying Automatic Transmission Unit Components (4 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

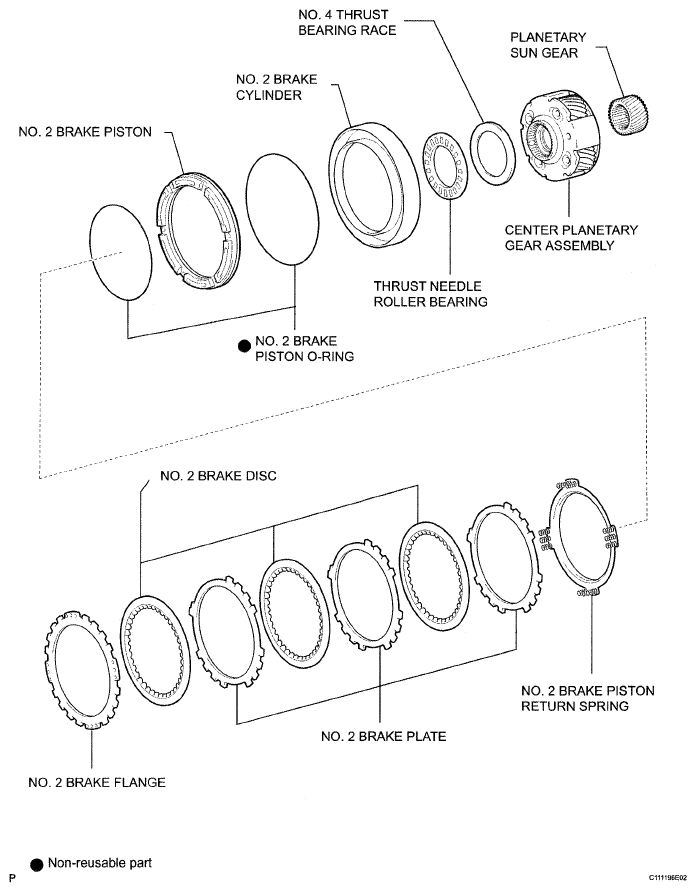

Fig 5: Identifying Automatic Transmission Unit Components (5 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

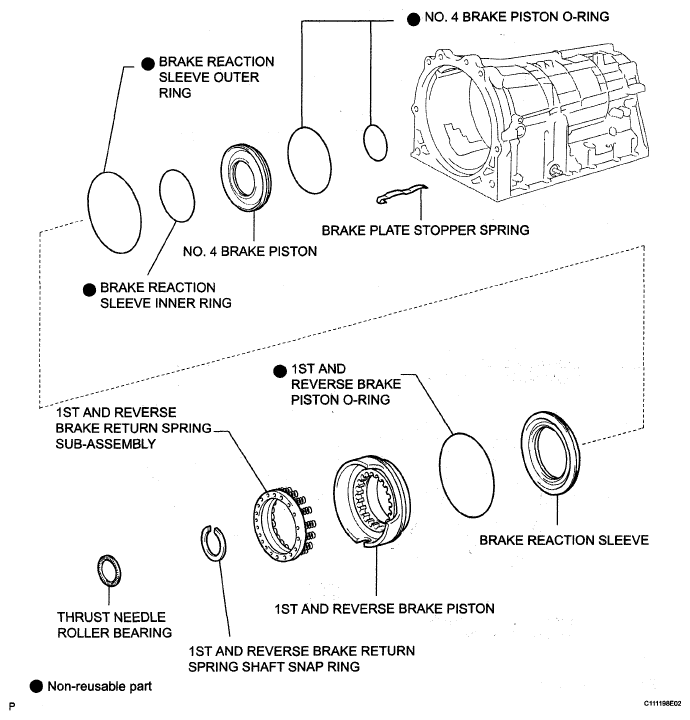

Fig 6: Automatic Transmission Unit Components With Torque Specifications (6 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

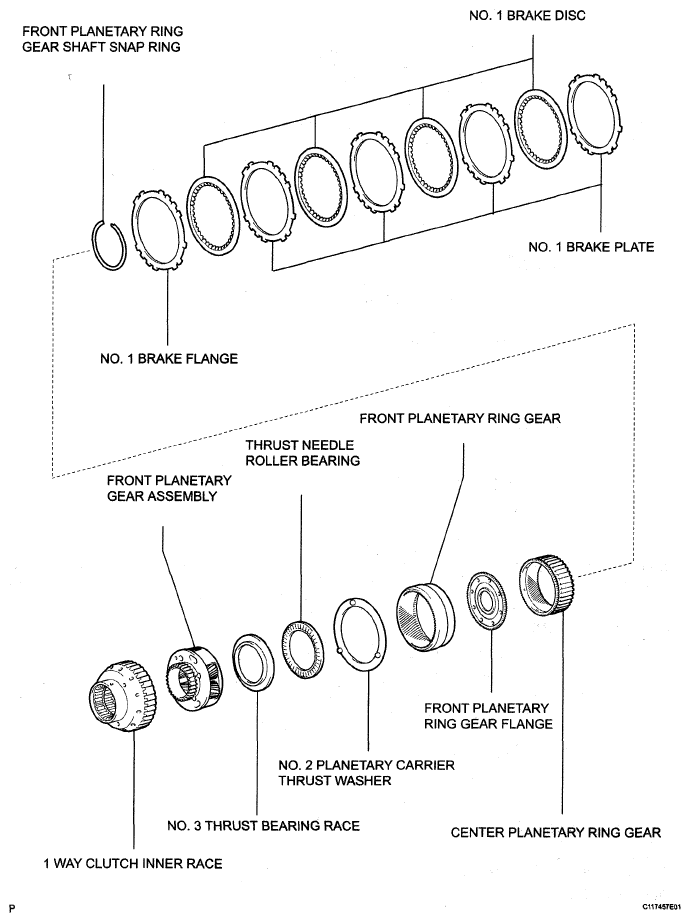

Fig 7: Identifying Automatic Transmission Unit Components (7 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

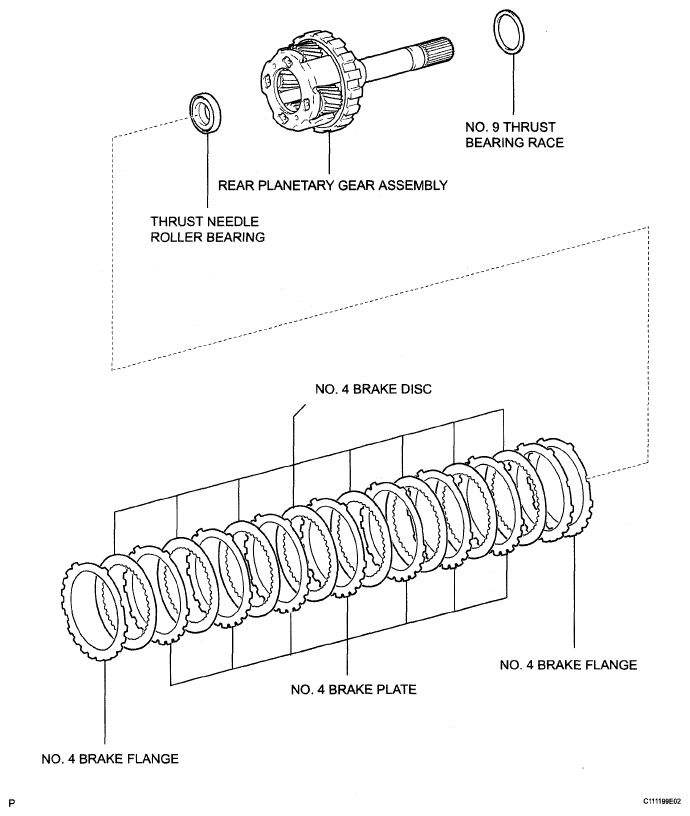

Fig 8: Identifying Automatic Transmission Unit Components (8 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

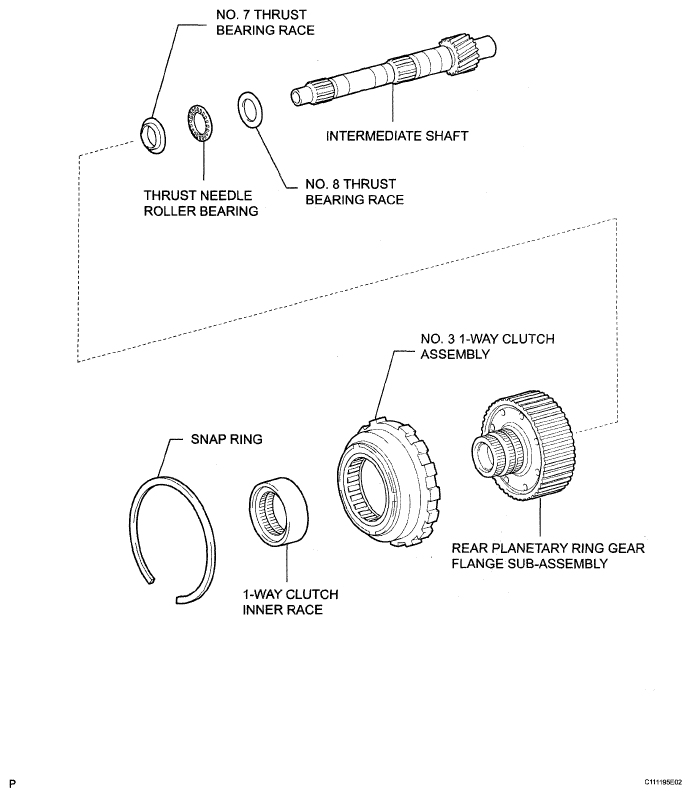

Fig 9: Identifying Automatic Transmission Unit Components (9 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 10: Identifying Automatic Transmission Unit Components (10 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 11: Identifying Automatic Transmission Unit Components (11 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
