Clutch Switch Circuit: Wiring Diagram

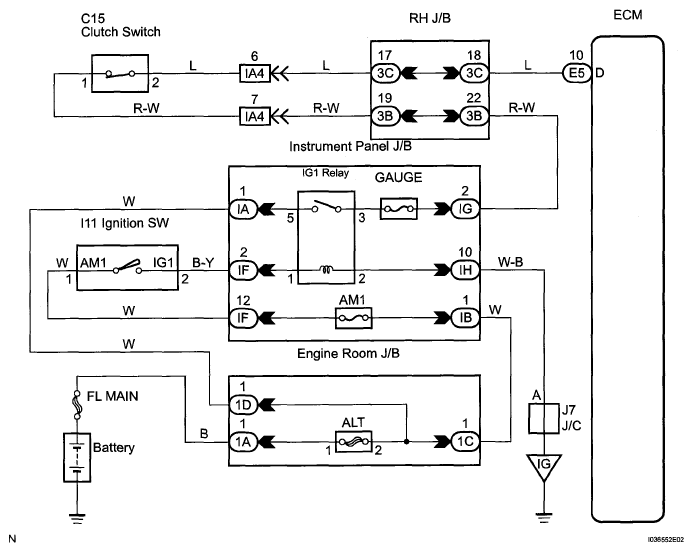

Fig 1: Clutch Switch Wiring Diagram
G05236819Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
