Wireless Door Lock Control System
›
Only Wireless Control Function is Inoperative
›
Wiring Diagram
Only Wireless Control Function is Inoperative: Wiring Diagram

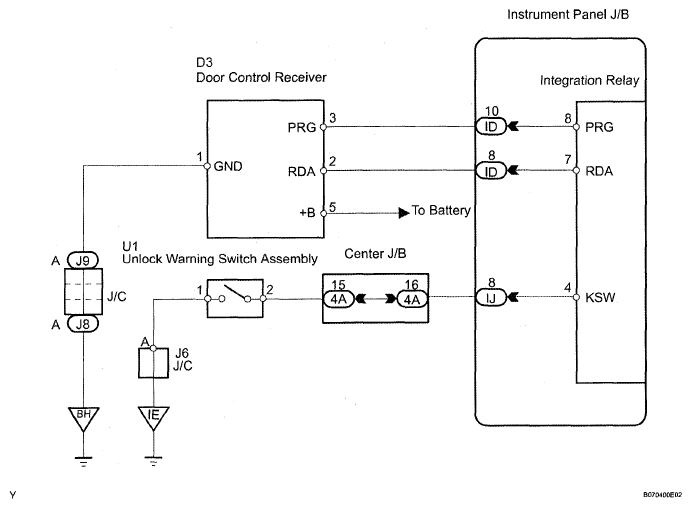

Fig 1: Only Wireless Control Function Is Inoperative - Wiring Diagram
