Key Reminder and Light Reminder
›
Notes
Key Reminder and Light Reminder: Notes

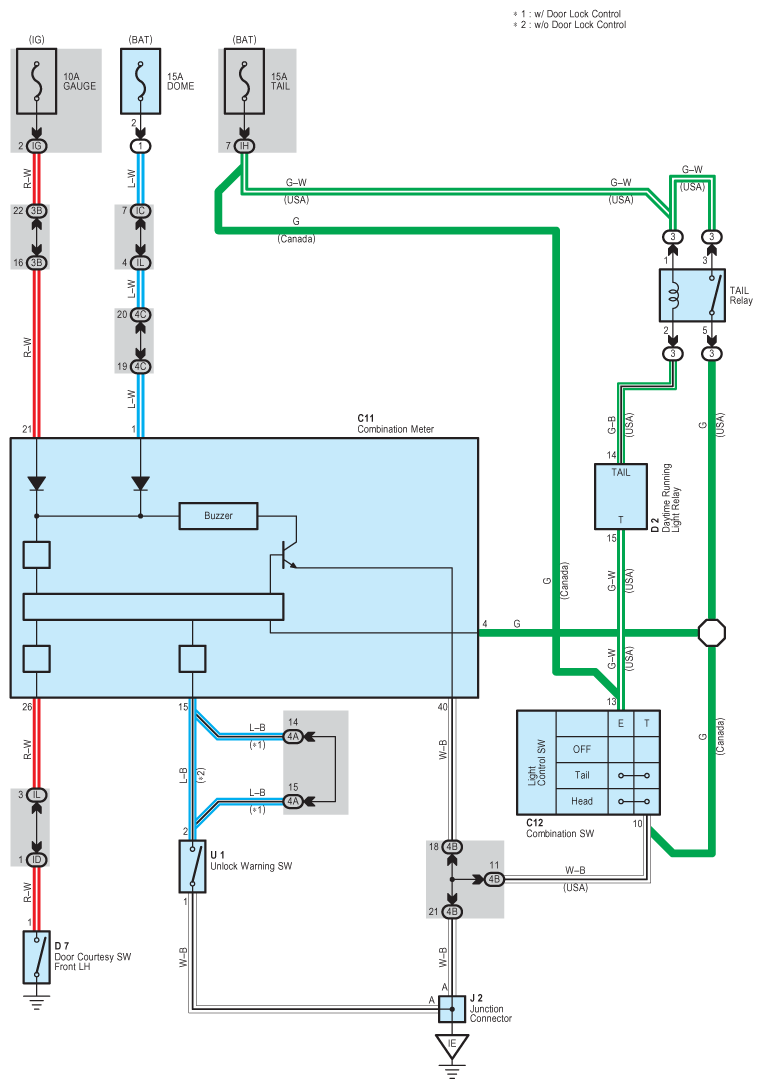

Fig 1: Key Reminder And Light Reminder System Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
