Power Outlet for 115V: Notes

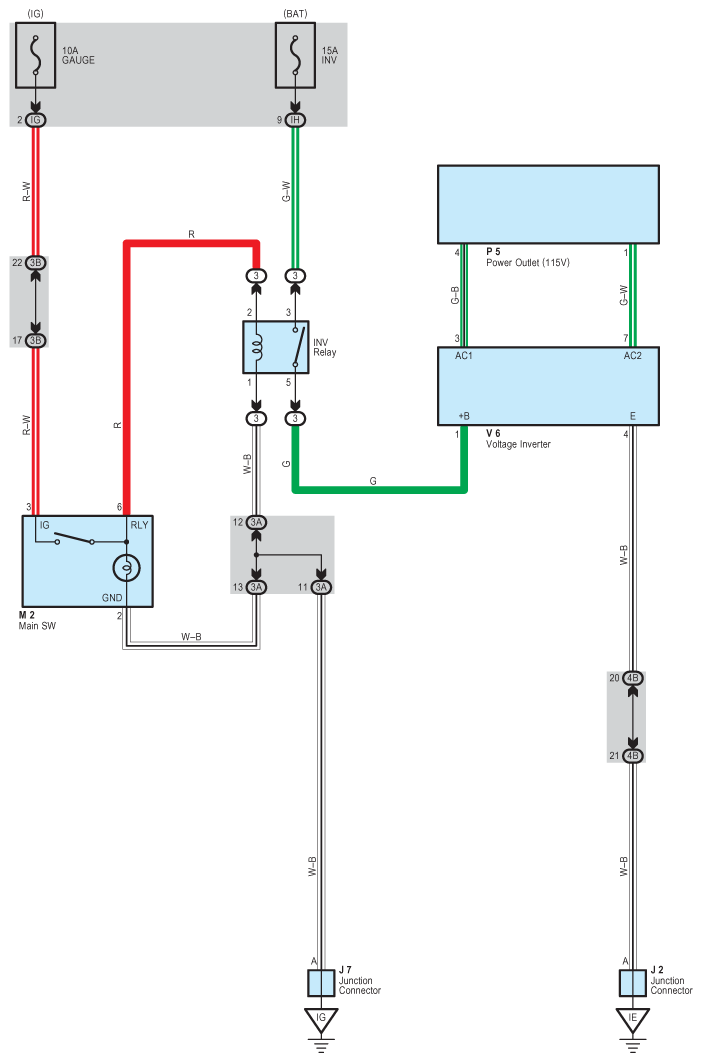

Fig 1: Power Outlet For 115V System Wiring Diagram
G08790397Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
