Instrument Panel Safety Pad: Installation

  1. INSTALL CENTER INSTRUMENT PANEL BRACKET SUB-ASSEMBLY
  2. INSTALL INSTRUMENT PANEL BOX
  3. INSTALL CENTER NO. 1 INSTRUMENT CLUSTER FINISH PANEL
  4. INSTALL CENTER NO. 2 INSTRUMENT CLUSTER FINISH PANEL
    1. Install the center No. 2 instrument cluster finish panel with the 2 claws.
  5. INSTALL LOWER INSTRUMENT PANEL SUB-ASSEMBLY
    1. Install the lower instrument panel sub-assembly.
    2. Install the wire harness 4 clamps.
    3. Install the 7 bolts < B > or < C >, < D > and 4 screws
    4. Install the 4 clips.
    5. Connect the hood lock control cable and DLC3 connector.

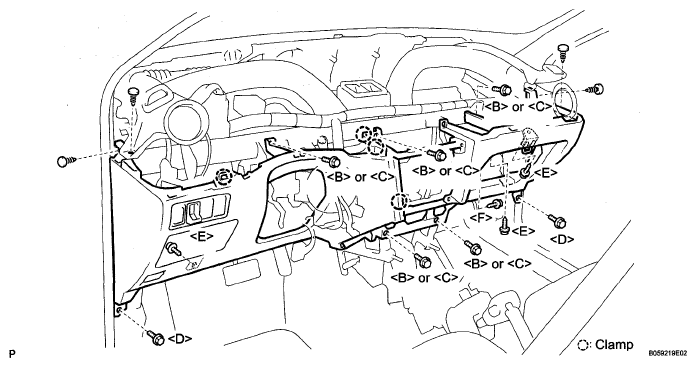

      Fig 1: Identifying Lower Instrument Panel Sub-Assembly Clamps
      G05237269Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. INSTALL UPPER INSTRUMENT PANEL SUB-ASSEMBLY
    1. Connect the connectors.
    2. Install the upper instrument panel sub-assembly.
    3. Install the 3 clips and 9 claws.
    4. Install the 3 screws < E > and bolt < A >.

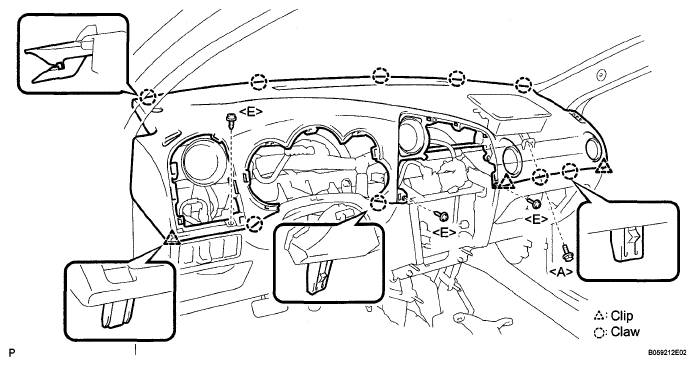

      Fig 2: Identifying Upper Instrument Panel Sub-Assembly Clips And Claws
      G05237270Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. INSTALL FRONT PILLAR GARNISH RH

    HINT:

    Use the same procedures for the RH side and LH side.

  8. INSTALL FRONT PILLAR GARNISH LH
    1. Install the front pillar garnish LH with the 3 clips and 2 claws.
  9. INSTALL INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY
    1. Install the instrument cluster finish panel sub-assembly.
      Fig 3: Identifying Front Pillar Garnish Clips And Claws LH
      G05237271Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the 4 clips and 2 claws.
      Fig 4: Identifying Instrument Cluster Finish Panel Sub-Assembly Clips And Claws
      G05237272Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. INSTALL COMBINATION METER ASSEMBLY
    1. Install the combination meter assembly, then connect the connector as shown in the illustration.
    2. Install the 2 claws as shown in the illustration.
      Fig 5: Identifying Combination Meter Assembly
      G05237059Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Install the screw < E >.
      Fig 6: Identifying Combination Meter Assembly Screw
      G05237065Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. INSTALL METER HOOD SUB-ASSEMBLY
    1. Install the meter hood sub-assembly with the 5 claws and 3 clips.
  12. CONNECT PASSENGER AIRBAG CONNECTOR
  13. INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY
    1. Install the glove compartment door assembly.
      Fig 7: Identifying Meter Hood Sub-Assembly Claws And Clips
      G05237275Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Deform the upper part of the glove compartment door assembly to install the stoppers.
      Fig 8: Identifying Glove Compartment Door Assembly Stoppers
      G05237276Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. INSTALL GLOVE COMPARTMENT DOOR STOPPER SUB-ASSEMBLY
    1. Install the glove compartment door stopper sub-assembly with the screw < G >.
    2. Close the glove compartment door.
  15. INSTALL COWL SIDE TRIM BOARD RH
    1. Install the cowl side trim board RH with the 2 claws.
      Fig 9: Identifying Glove Compartment Door Stopper Sub-Assembly Screw
      G05237260Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the cowl side trim clip.
  16. INSTALL COWL SIDE TRIM BOARD LH

    HINT:

    Use the same procedures for the LH side and RH side.

    Fig 10: Identifying Cowl Side Trim Board Claws
    G05237278Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. INSTALL FRONT DOOR SCUFF PLATE RH
    1. Install the front door scuff plate RH with the claws.
  18. INSTALL FRONT DOOR SCUFF PLATE LH

    HINT:

    Use the same procedures for the LH side and RH side.

  19. INSTALL FLOOR SHIFT LEVER ASSEMBLY (for Manual Transaxle)
  20. INSTALL FLOOR SHIFT ASSEMBLY (for Automatic Transaxle)
    Fig 11: Identifying Front Door Scuff Plate Claws RH
    G05237279Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  21. INSTALL LOWER CENTER INSTRUMENT PANEL FINISH PANEL
    1. Install lower center instrument panel finish panel with the claws.

      HINT:

      Tape the screwdriver tip before use.

    2. A/T Transaxle:

      Install the 5 screws < E >.

    3. M/T Transaxle:

      Install the 3 screws < E >.

      HINT:

      Tape the screwdriver tip before use.

  22. INSTALL INSTRUMENT PANEL BOX
    1. Install the instrument panel box.
      Fig 12: Identifying Lower Center Instrument Panel Finish Panel Screws
      G05237280Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Close the instrument panel box.
  23. INSTALL AIR CONDITIONING CONTROL ASSEMBLY
  24. INSTALL CENTER INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY
    1. Connect the connectors.
    2. Install the CTR instrument cluster finish panel assembly with the 2 clips and 7 claws.
    3. Install the screw < E >.
      Fig 13: Installing Instrument Panel Box
      G05237256Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Install the control knob.
      Fig 14: Identifying CTR Instrument Cluster Finish Panel Assembly Clips And Claws
      G05237282Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Power point socket models only:

      Install the switch base with the 5 claws.

  25. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transaxle)
    1. Install the shift lever knob sub-assembly and turn the shift lever sub-assembly clockwise.
  26. INSTALL RADIO RECEIVER ASSEMBLY (w/o Navigation System)
  27. INSTALL CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY
    1. Install the center instrument cluster finish panel sub-assembly, and connect connector.
    2. Install the 4 clips and 3 claws.
      Fig 15: Identifying Switch Base Claws
      G05237283Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  28. INSTALL WINDSHIELD WIPER SWITCH ASSEMBLY
  29. INSTALL HEADLIGHT DIMMER SWITCH ASSEMBLY
  30. INSTALL STEERING COLUMN COVER
  31. INSTALL STEERING WHEEL ASSEMBLY

    SST 09950-50013 (09951-05010, 09952-05010, 09953-05020, 09954-05021)

  32. INSPECT STEERING PAD (See  INSTALLATION  )
  33. INSPECT STEERING WHEEL CENTER POINT
  34. INSTALL STEERING PAD
  35. INSPECT SRS WARNING LIGHT

    HINT:

    (See DIAGNOSIS SYSTEM ).

  36. CONNECT BATTERY NEGATIVE TERMINAL
    Fig 16: Identifying Center Instrument Cluster Finish Panel Sub-Assembly Clips And Claws
    G05237284Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
