Mode 6 - TOYOTA: AVALON

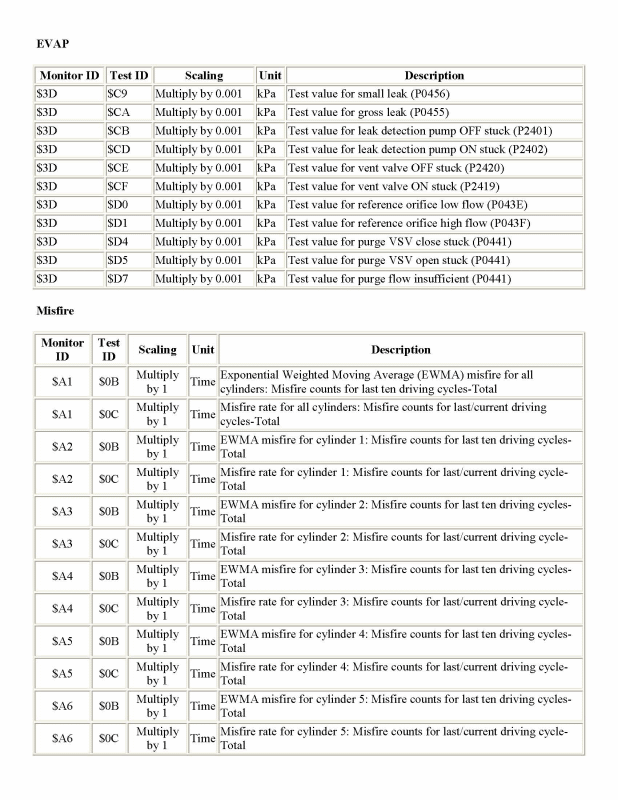

Fig 1: Mode 6 Data For Avalon (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

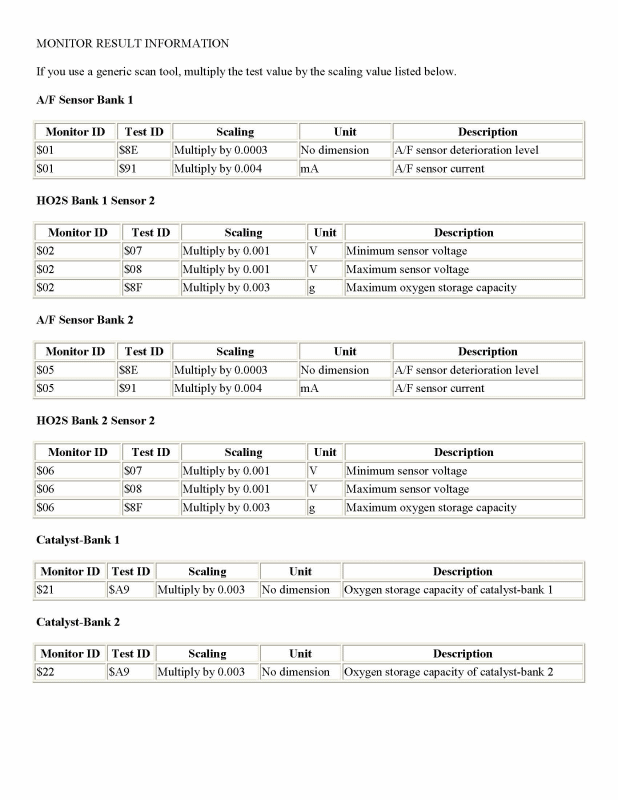

Fig 2: Mode 6 Data For Avalon (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

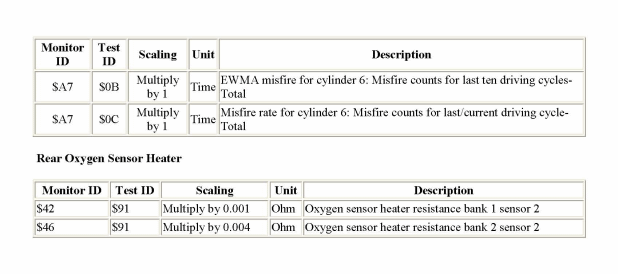

Fig 3: Mode 6 Data For Avalon (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
