Mode 6 - TOYOTA: PRIUS

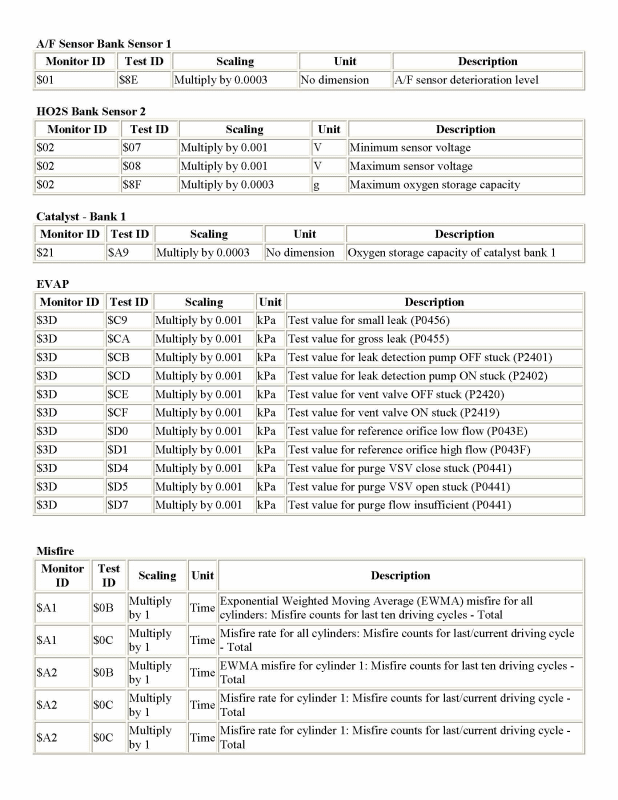

Fig 1: Mode 6 Data For Prius (1 Of 2)
G00526027Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

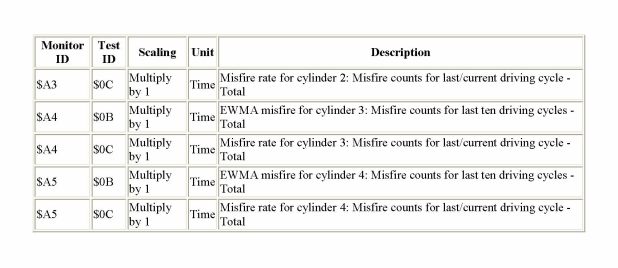

Fig 2: Mode 6 Data For Prius (2 Of 2)
G00526028Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
