Seat Belt Warning System
›
Parts Location
Parts Location

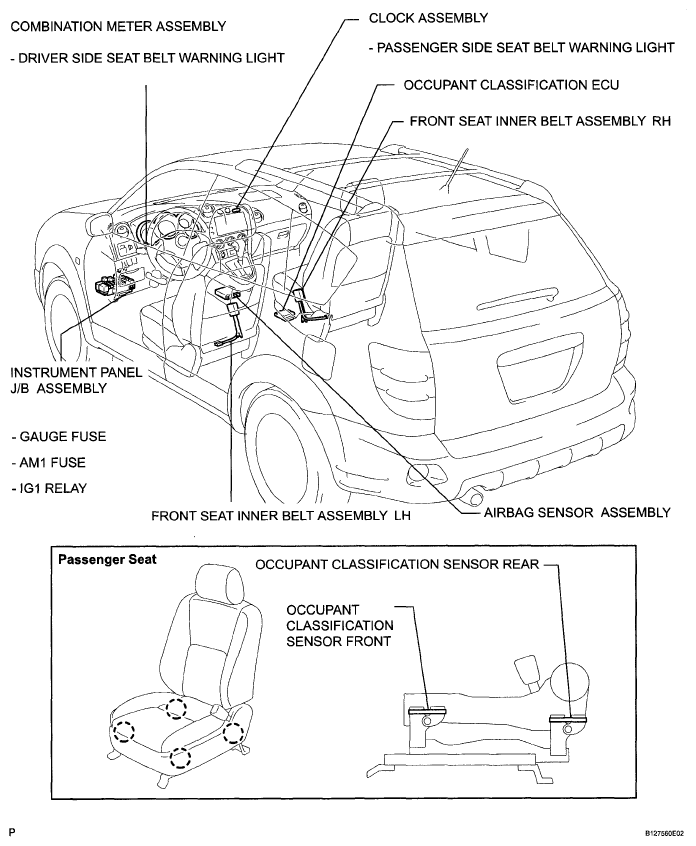

Fig 1: Identifying Seat Belt Warning System Parts Location
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
