Counter Shaft: Components

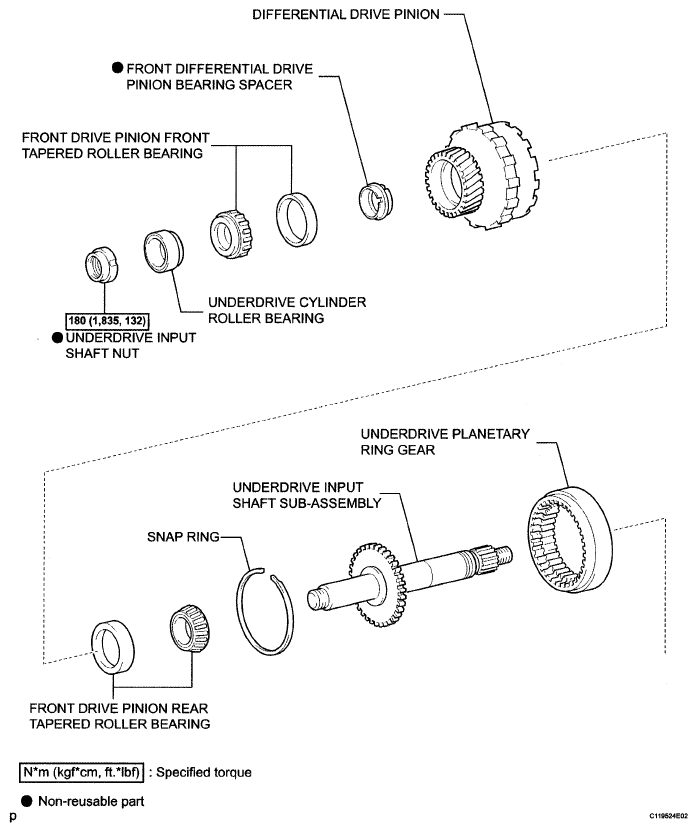

Fig 1: Exploded View Of Counter Shaft Components With Torque Specification (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

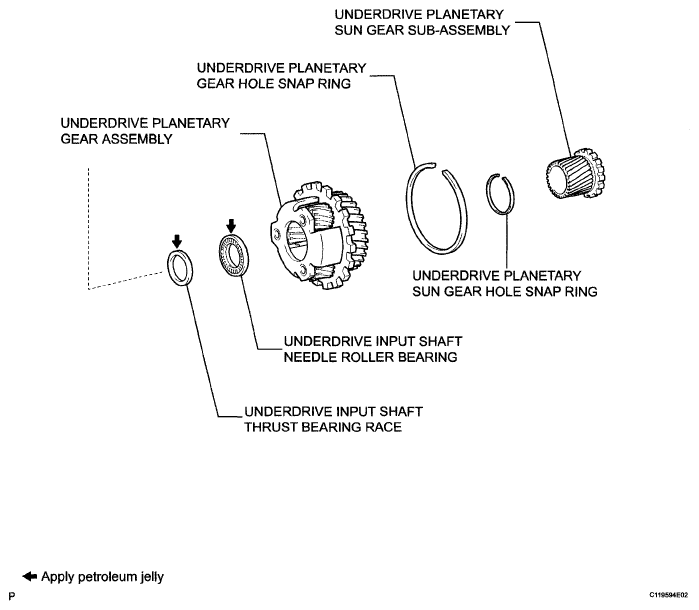

Fig 2: Exploded View Of Counter Shaft Components (2 Of 2)
