Intermediate Shaft: Components

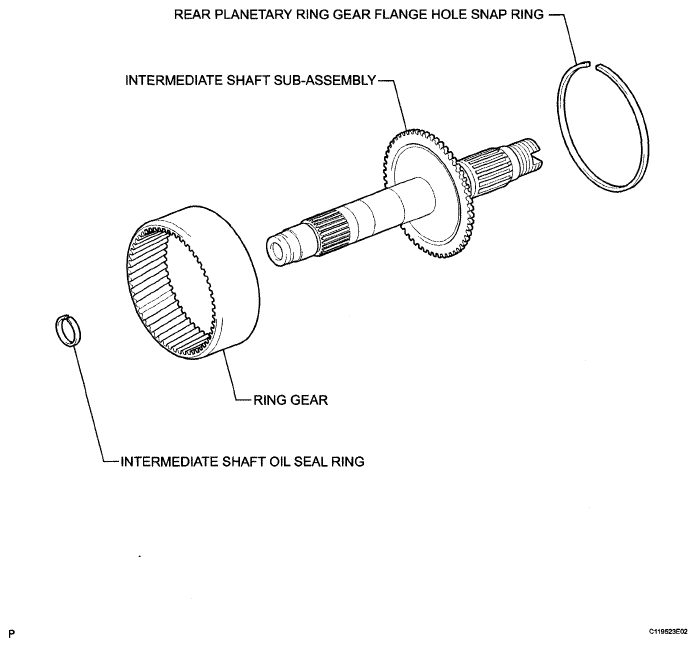

Fig 1: Exploded View Of Intermediate Shaft Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
