Automatic Transmission - A246E
›
Second Coast Brake
›
Components
Second Coast Brake: Components

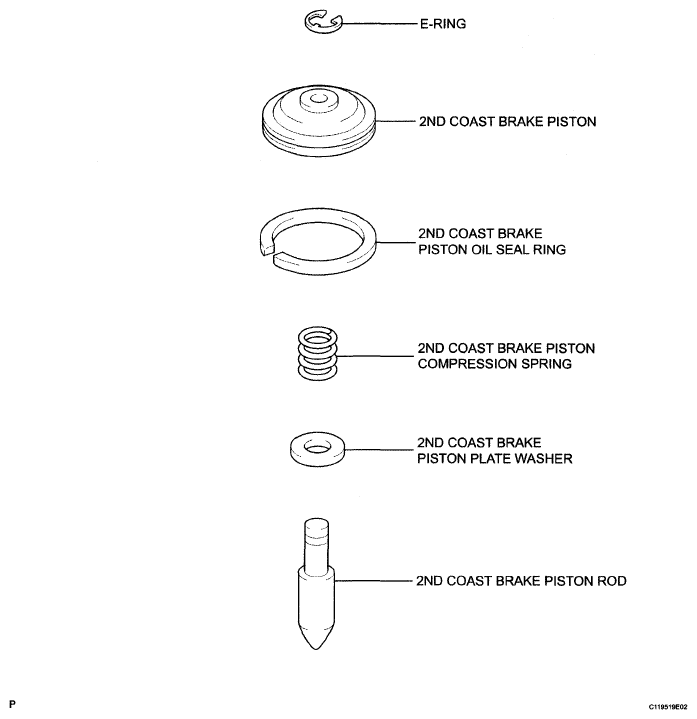

Fig 1: Identifying Second Coast Brake Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
