Cruise Main indicator Light Circuit: Wiring Diagram

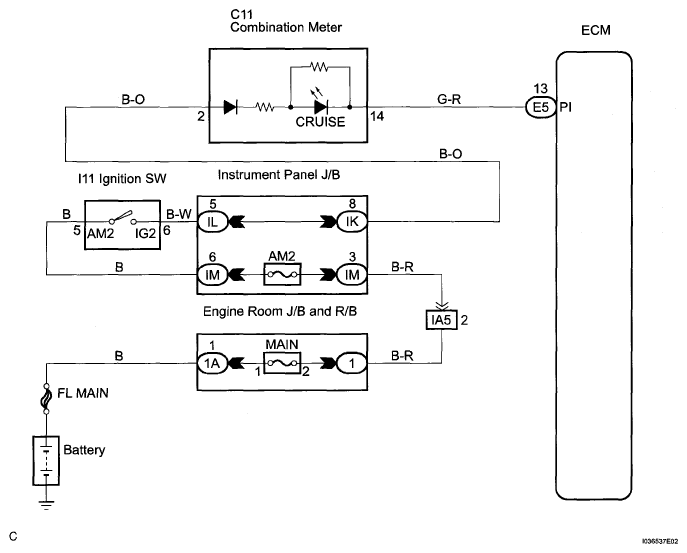

Fig 1: Cruise Main Indicator Light Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
