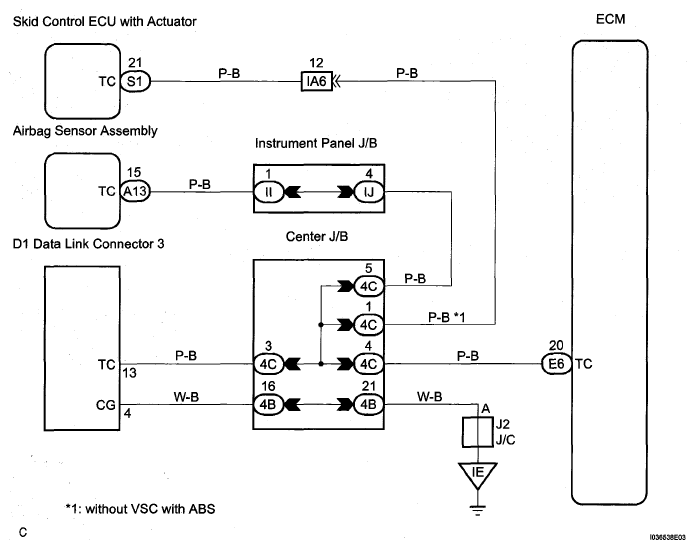

Diagnosis Circuit: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
HINT:
When a particular warning light stays blinking, a ground short in the wiring of terminal TC of the DLC3 or an internal ground short in the relevant ECU is suspected.
