ECU Power Source Circuit: Wiring Diagram

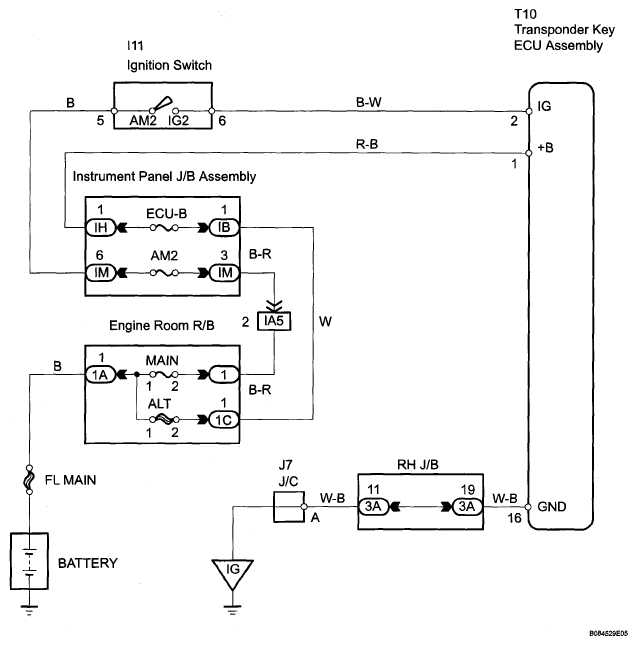

Fig 1: ECU Power Source Wiring Diagram
G05236799Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
