TOYOTA Vehicle Intrusion Protection System
›
Parts Location
Parts Location

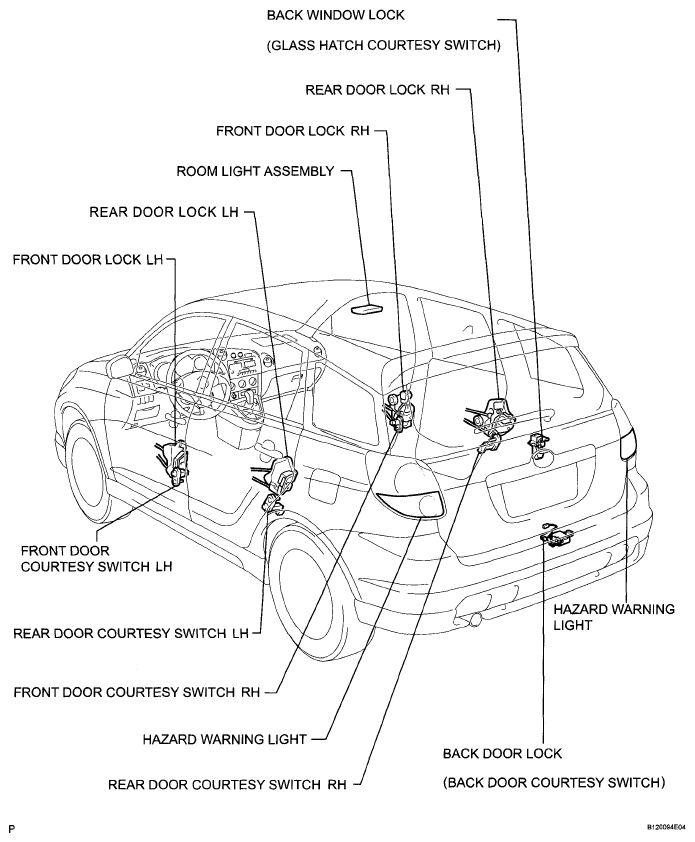

Fig 1: Identifying Toyota Vehicle Intrusion Protection System Parts Location (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

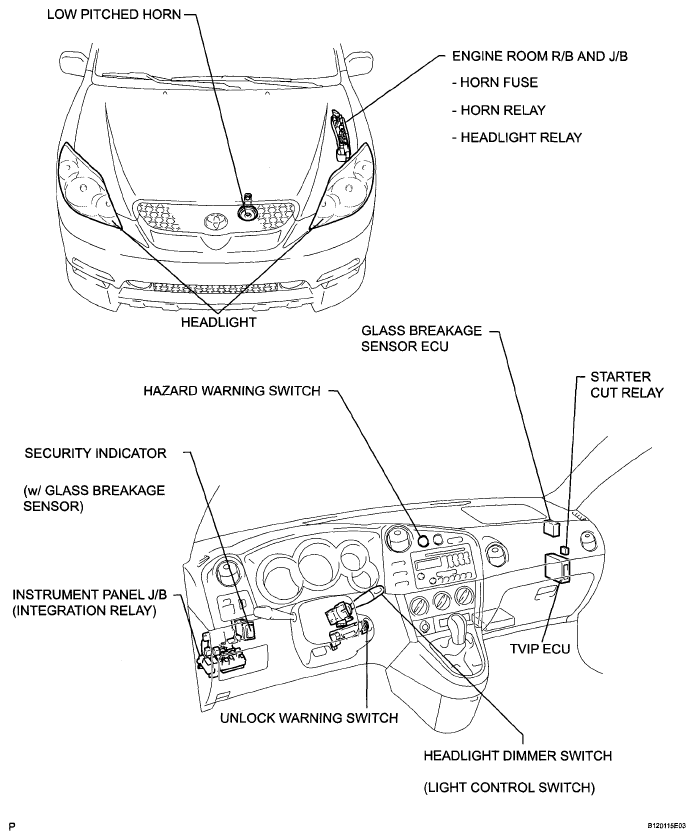

Fig 2: Identifying Toyota Vehicle Intrusion Protection System Parts Location (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
