Toyota
›
2007
›
Matrix Base, Standard
›
Repair and Diagnosis
›
Engine Performance
›
Engine Control System (1ZZ-FE)
›
SFI System
›
DTC P0617 Starter Relay Circuit High
›
Wiring Diagram
DTC P0617 Starter Relay Circuit High: Wiring Diagram

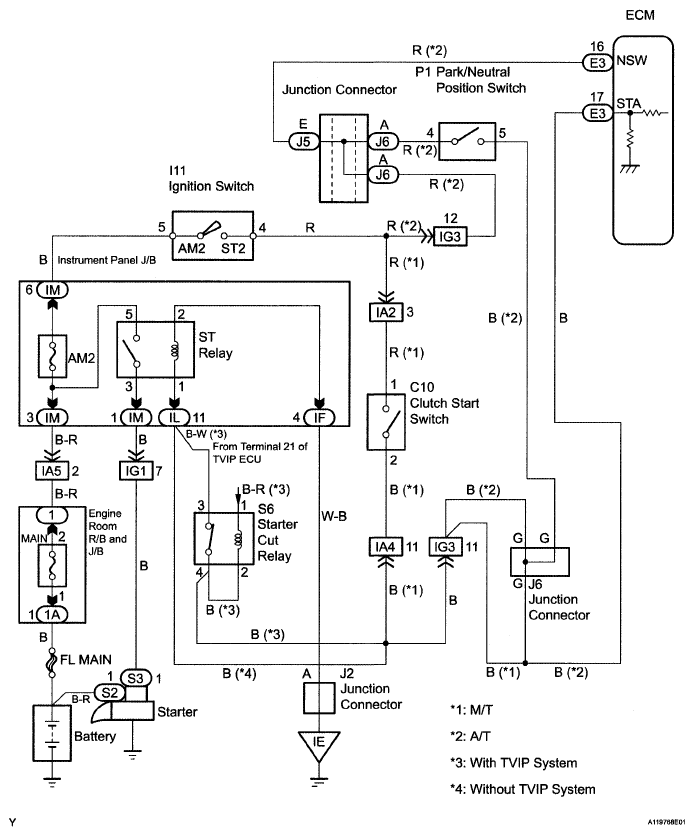

Fig 1: Starter Relay Circuit - Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
