Air Conditioning: Condenser: Components

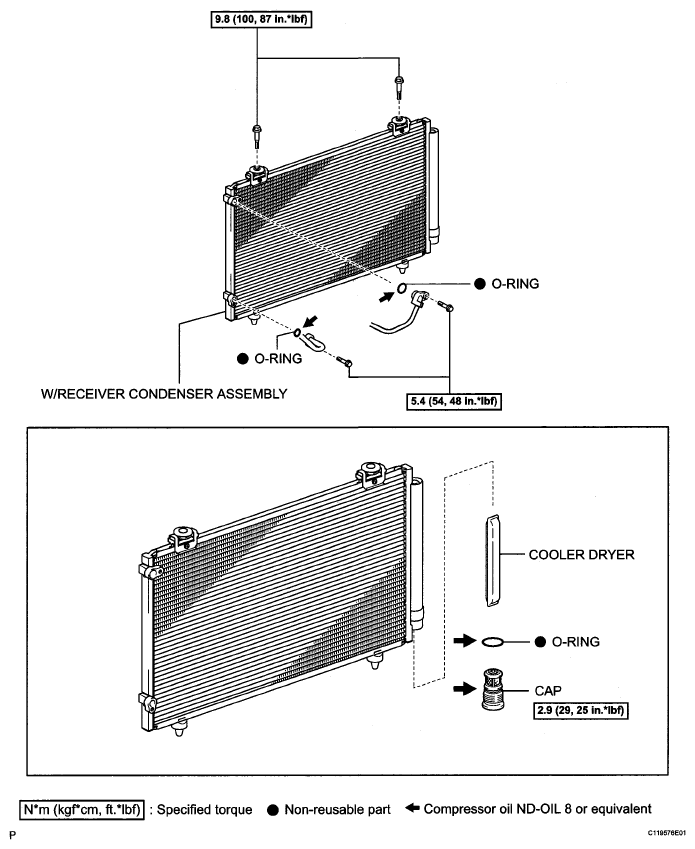

Fig 1: Condenser Replacement Components With Torque Specifications

G05236287

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
