Side Airbag Sensor: Components

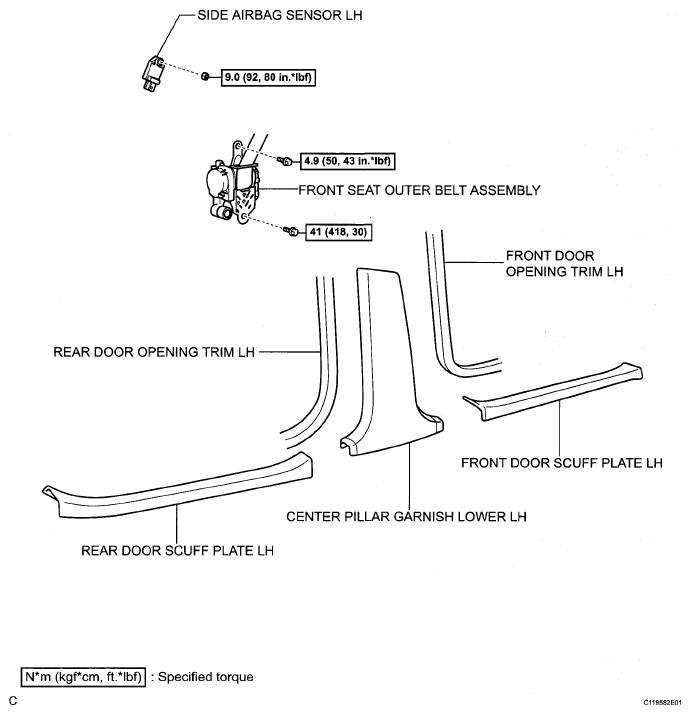

Fig 1: Side Airbag Sensor Replacement Components With Torque Specifications
