Steering Pad: Components

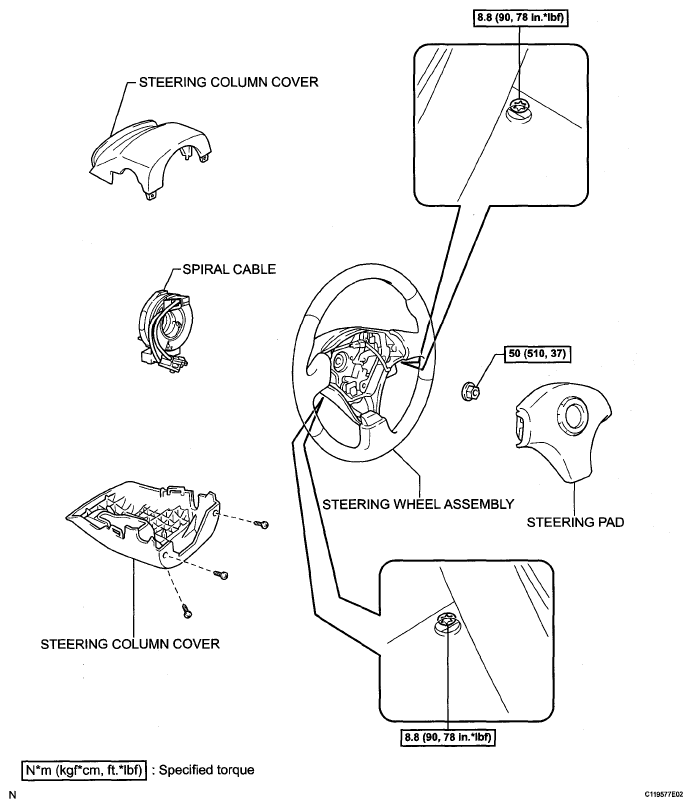

Fig 1: Steering Pad Replacement Components With Torque Specifications
G05236554Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
