Starting System (1ZZ-FE): Starter: Components

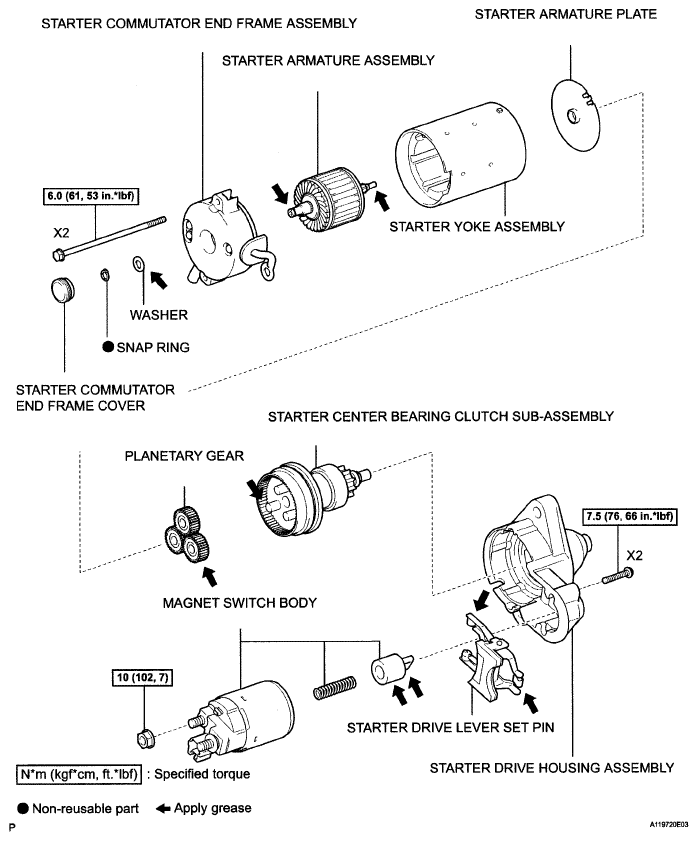

Fig 1: Identifying Starter Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

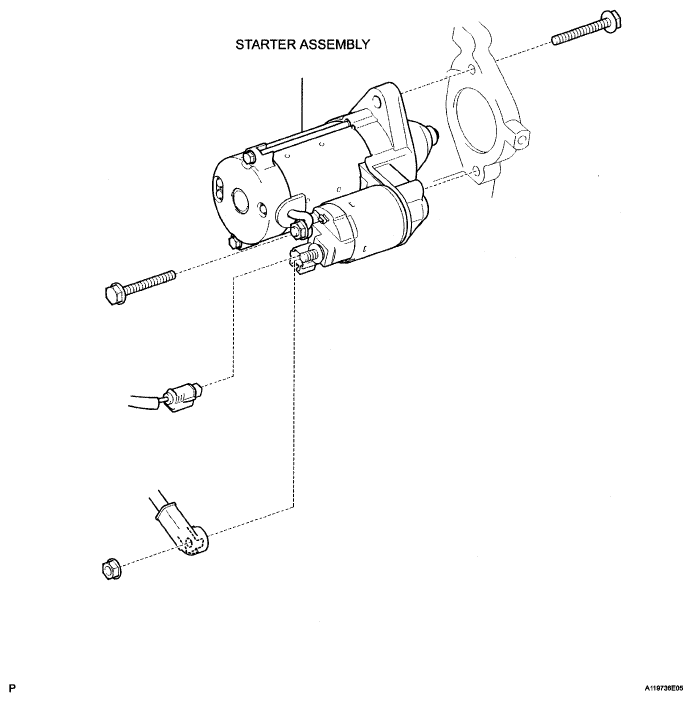

Fig 2: Starter Replacement Components With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
