MIL Circuit: Wiring Diagram

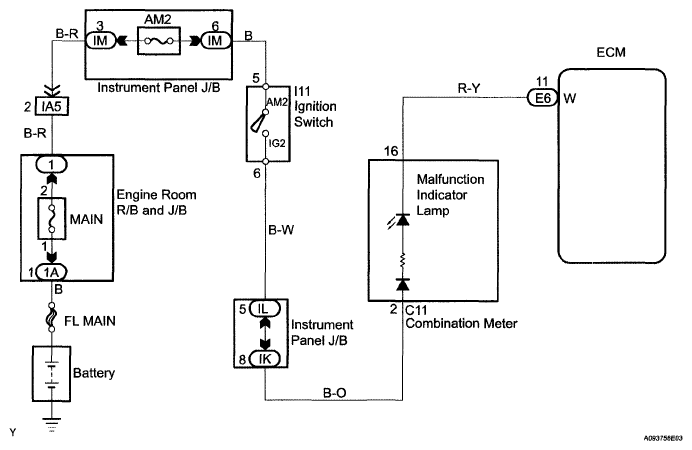

Fig 1: Malfunction Indicator Lamp Wiring Diagram
G05232945Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
